Anchor Downs

DESIGN FEATURES: Offer the builder a lighter anchor down device with greater load capacity at a more affordable price.. applications include:

ADB Series - no standard washer requirement with anchorage bolts. Washer location is indicated on item drawings
ADA Series - no more inspection problems, as the ADA series has a load transfer plate tack-welded to the base

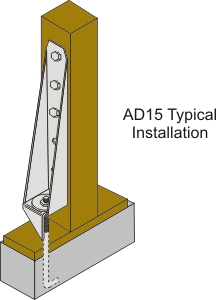

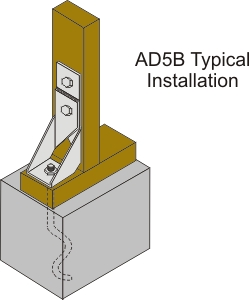

Uses include anchoring vertical wood members to foundation to resist uplifts due to overturning
Installation can be made horizontally for seismic ties

MATERIAL: 3/16", 1/4" and 3/8" steel, depending on size and load requirements

CODES: ICC ER-5033

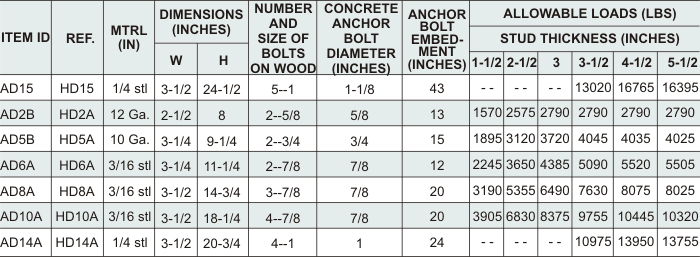

Product Detail
