Clip Anchors

DESIGN FEATURES: Versatile reinforcing angles for a multi-purpose anchor around the job. They can be nailed to concrete slabs to hold posts or studs, or for high uplift conditions. Holes are staggered to eliminate wood splitting and to permit installation on both sides of the timber. The CAS is a clip anchor that can be field skewable from 0° to 135°.

MATERIAL: 18 ga. galvanized steel

CODES: ICC ER-2894

Product Detail

• CA
• CA Installation

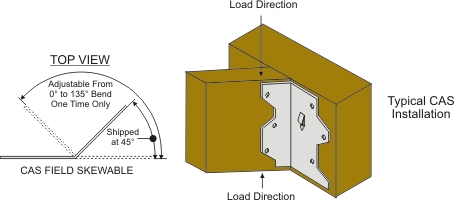

• CAS Installation

CA Series

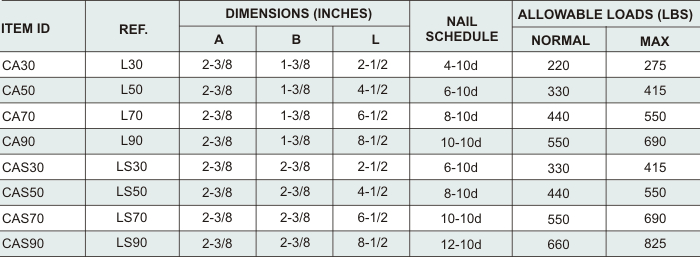

Load Table
