Coil Strap
DESIGN FEATURES: Coiled strapping consists of continuous coils which are designed to be cut to length on the job as required. No need to order 10", 18" or 24" straps, etc. Staggered hole pattern reduces wood splitting. Used to secure or wrap existing buildings for seismic upgrade, to tie water heaters to floors and walls and for utility purposes such as hanging pipes from rafters, studs or joists, boxed for easier usage and storage.
MATERIAL: 22 ga., 20 ga., 18 ga. and 16 ga. galvanized steel
Product Detail
- CS

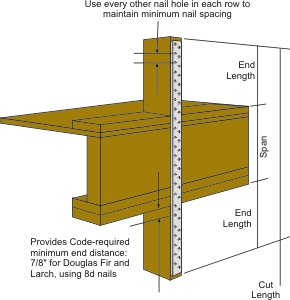

- CS Installation

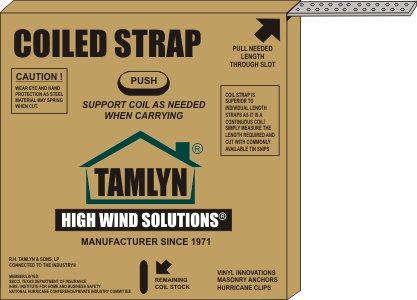

- CS Packaging

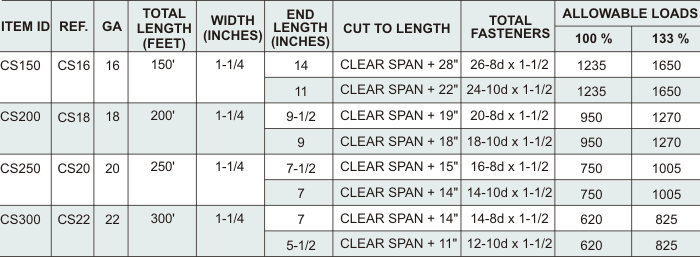

Load Table
Design loads are based on the assumption that one half of the specified number of nails are installed in each of the two members connected.
