Deck Anchors

DESIGN FEATURES: The DA and GDB eliminates toe-nailing of the post or column to a flat surface. The bottom plate 1/2" bolt hole can be set to concrete with a 1/2" bolt, cement nails or "gun" inserts. The DA is available in rough post sizes. The DAS stand-off is used to lessen post decay at concrete or masonry floors.

MATERIAL: DA and GDB 18 ga. galvanized steel; DAS 10 ga. galvanized steel. Available in G-185 Triple Zinc or Hot-Dip Galvanized. Call for availability.

CODES: ICC ER-2894

SPECIAL: The DAS is available in rough lumber sizes. It can be attached with nails before post installation.

Product Detail

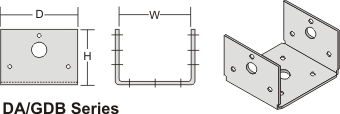

• DA
• DA Installation

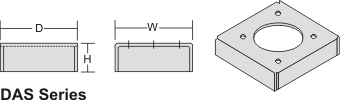

• DAS
• GDB
• GDB Installation

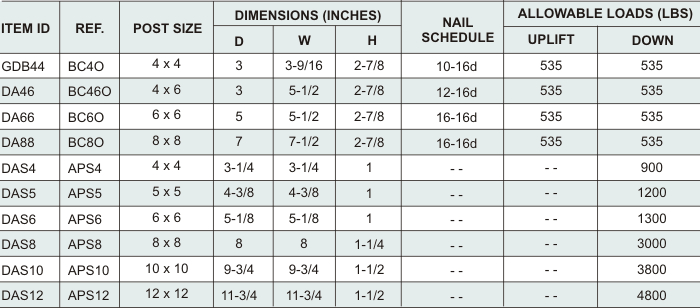

Load Table
