Masonry Veneer Anchors and Ties

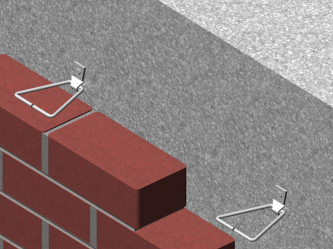

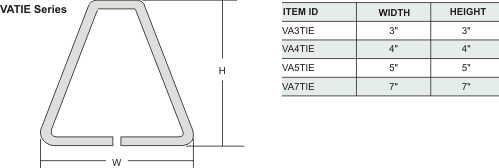

TRIANGLE TIES: Ties veneer anchor to masonry.

MATERIAL: 3/16" galvanized steel wire. Also available in hot dip galvanized after fabrication. Call for availability.

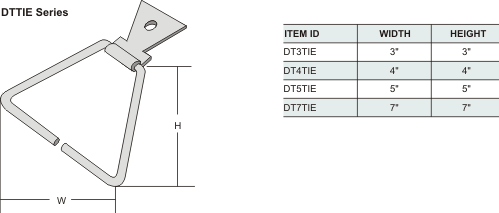

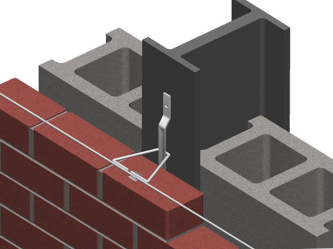

DOVETAIL TRIANGLE TIES: Ties masonry wall to concrete with anchor slot installed.

MATERIAL: 3/16" galvanized steel wire and 12 ga. galvanized steel. Also available in hot dip galvanized after fabrication. Call for availability.

ADJUSTABLE SCREW-ON VENEER WALL TIES: Commercial adjustable masonry veneer anchor ties veneer to steel studs. Has reinforced deformations and 1/4" holes.

MATERIAL: 12 ga. galvanized steel. Also available in hot dip galvanized after fabrication. Call for availability.

Product Detail

• VATIE -Triangle Ties
• DTTIE - Dovetail Triangle Ties
• VA512 - Veneer Anchor
