Header Hangers

DESIGN FEATURES: Offers greater economy in installing door and window headers with faster, more accurate installation that strengthens the frame and eliminates toe-nailing and the need for cripples. HH hangers can also be used for other cross-member detail applications.

MATERIAL: 18 ga. galvanized steel. Available in G-185 Triple Zinc or Hot-Dip Galvanized. Call for availability.

CODES: ICC ER-2894

Product Detail

• HH

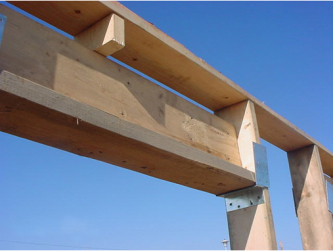

• HH Installation

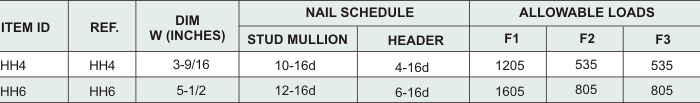

Load Table
