Joist Hangers
DESIGN FEATURES: TAMLYN custom-die designed and manufactured for quick installation and maximum load value.TH/DTH Series: 5" truss or joist nailing support gives you versatility by allowing usage of small joist heights. Standard skewed hangers are offered to promote further standardization and construction economies.
MATERIAL:
SJQ Series - 20ga. galvanized steel
DJ, SJH, TH/DTH, TSTP Series - 18ga galvanized steel
SSL/SSR Series - 16ga. galvanized steel
Available in G-185 Triple Zinc or Hot-Dip Galvanized. Call for availability.
CODES: FL Approval #8283, ICC ESR-1347, ES-2894, ER-3846
Product Detail

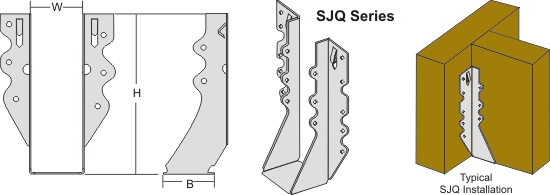

- SJQ/TSTP

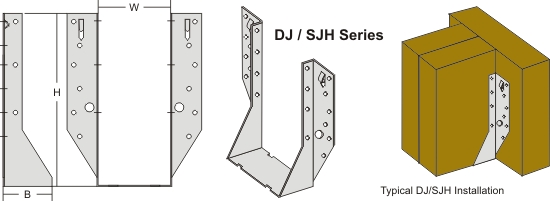

- DJ/SJH

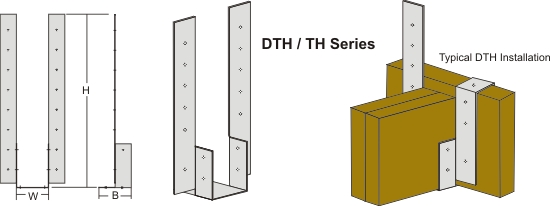

- DTH/TH

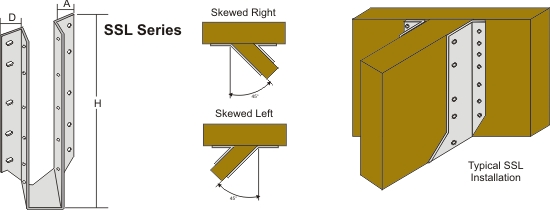

- SSL/SSR

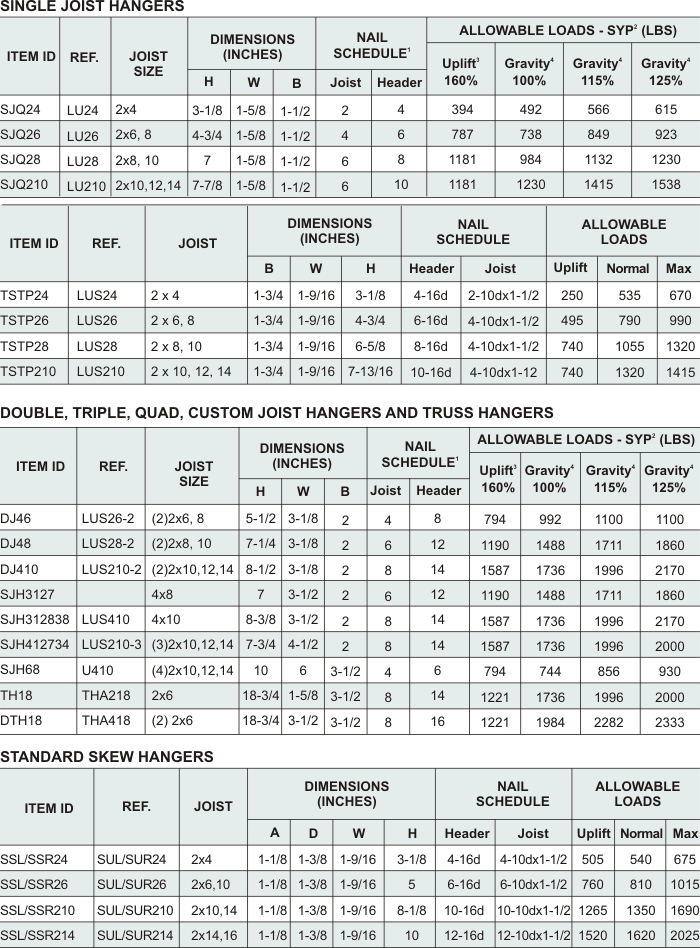

Load Table
