Mudsill Anchors
DESIGN FEATURES: Provide for faster, more economical and secure method for anchoring wood framing to masonry or concrete.
TMA1/TMAB1 - For installation into concrete slab or poured stemwalls. TMA1/TMAB1 feature a pre-bent base flange to assure proper anchoring into concrete. When a 2 x 8 mudsill is used for TMA1/TMAB1 maximum spacing is 3 feet. Loads and installation for TMA1/TMAB1 assumes nominal 2 x 4 or 2 x 6 mudsill, when used as a direct substitution for 1/2" anchor bolt 6' o.c.
TMA2/TMAB2 - For installation into concrete slab, poured stemwalls, or concrete block. TMA2/TMAB2 feature a pre-bent base flange to assure proper anchoring into concrete. When a 2 x 8 mudsill is used for TMA2/TMAB2, maximum spacing is 3 feet. Loads and installation for TMA2/TMAB2 assumes nominal 2 x 4 or 2 x 6 mudsill, when used as a direct substitution for 1/2" anchor bolt 6' o.c.

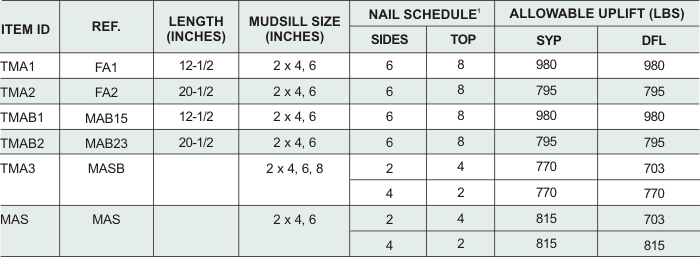

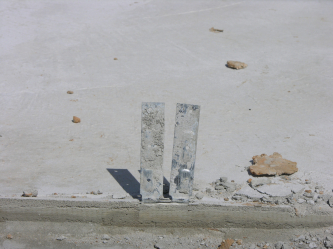

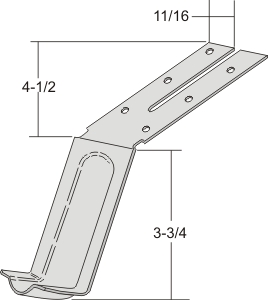

TMA3, MAS - For installation into concrete slabs. TMA3 and MAS feature a split flange for nailing to both mudsill and stud for greater framing versatility. Install MAS before pouring the concrete by nailing to the form or after the pour by inserting the MAS into the concrete. There is fast and simple nail attachment - only six code-spaced nails are needed to drive either to the mudsill or directly to the stud.
MATERIALS: TMA and MAS 16ga. galvanized steel, TMAB 18ga. galvanized steel. Available in G-185 Triple Zinc or Hot-Dip Galvanized. Call for availability.

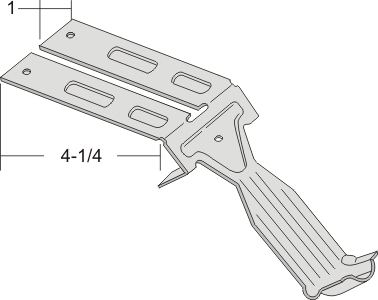

- MAS

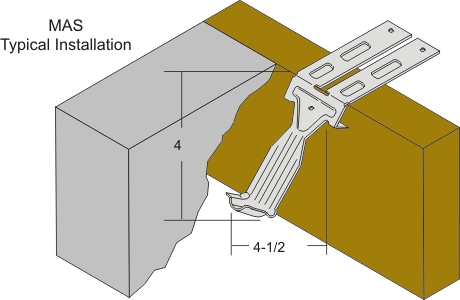

- MAS Installation

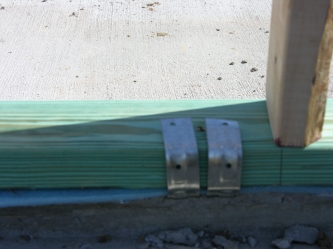

- TMA3

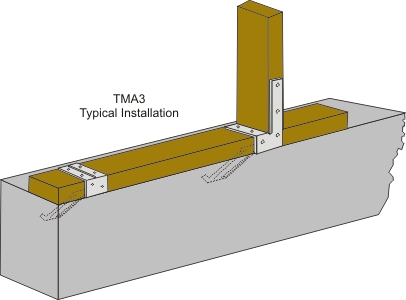

- TMA3 Installation

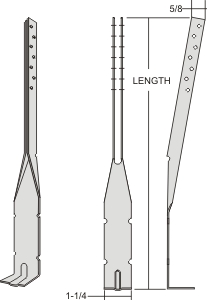

- TMAB

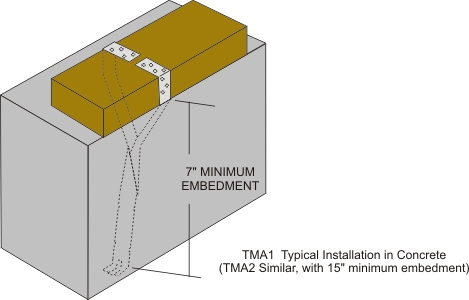

- TMAB Installation
MAS
TMA3
TMAB
