Nail Plates
DESIGN FEATURES: Designed to provide positive connections at wall intersections and ridge ties when the top plates are cut .. also used for truss repairs or construction and splice applications on wood-to-wood splices. NPA nail plates are flanged to provide added support value.
MATERIAL: 20 ga. galvanized steel
CODES: FL Approval #8283, ICC ESR-1347
Product Detail

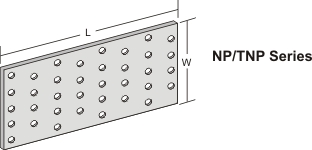

- NP/TNP Series
- NPA Series

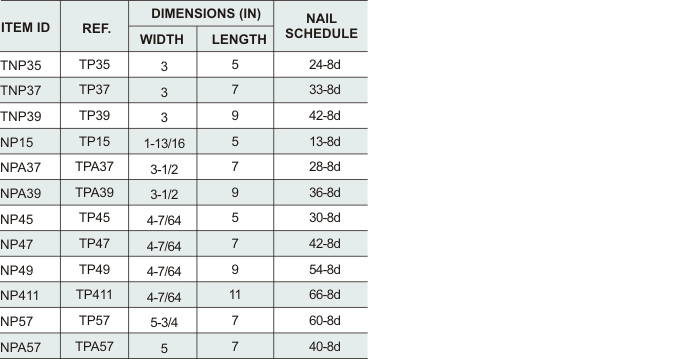

Load Table
