Post Anchors

DESIGN FEATURES: When placed into wet concrete (after screeding), these post base anchors provide both lateral and uplift resistance - they will not pull out due to offset legs. Pointed ends provide for fast, easy setting and alignment. They also eliminate the need for bolts or other inserts. The seat is flush-mounted to the concrete. The post anchors are also available in rough post sizes.

MATERIAL: 12 ga. galvanized steel. Available in G-185 Triple Zinc or Hot-Dip Galvanized. Call for availability.

CODES: ICC ER-2894

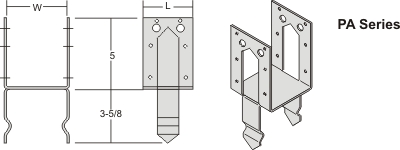

Product Detail

• PA

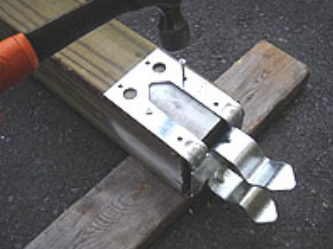

• PA Installation

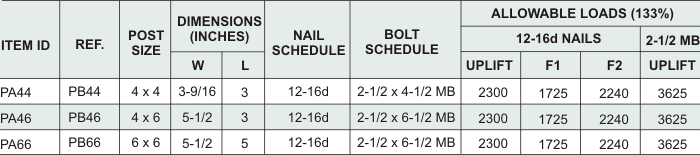

Load Table
