Post Base / Adjustable Post Anchor
DESIGN FEATURES: Provide fully-adjustable post base plus moisture and sanitary protection - also used for new construction or remodeling applications where damp rot is a problem. Bending slot provides greater ease of installation. For an easy adjustment to a previously set 1/2" concrete fastener (or bolt and cement insert), use the slotted hole. Also available in rough post sizes.
The AAE44L provides higher uplift capacity because of extended sides with extra bolts and nailing schedules. The AAEL anchors are also available in rough lumber sizes.
MATERIAL: AA Series -18 ga. and 16 ga. galvanized steel with a 14 ga. galvanized stand-off plate. AAEL Series - 12 ga. galvanized steel with a 12ga. galvanized stand-off plate. Available in G-185 Triple Zinc or Hot-Dip Galvanized. Call for availability.
CODES: ICC ER-2894
SPECIAL: Stand-off plate provides flat-end bearing area for posts and keeps the post end 1-3/16" above the surface moisture. Economical price and ease-of-use make these ideal hangers for the do-it-yourself market.
- AA

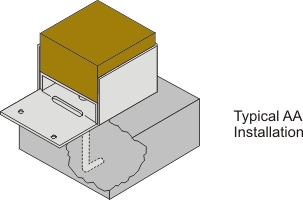

- AA Installation

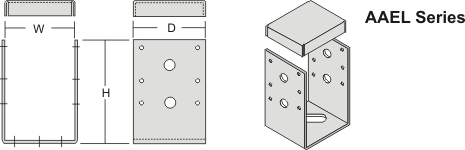

- AAEL
- AAEL Installation
