Post Beam Caps

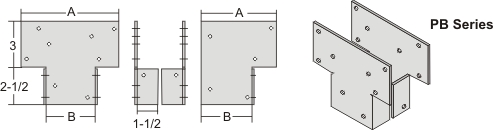

DESIGN FEATURES: Offer complete installation flexibility before, during or after beams are erected.. all corners are enclosed for added structural strength and a clean, neat appearance. EPB .. end post beam cap can be specified as EPB4, EPB6, etc. PB post beam caps should be used in pairs (see illustration). Post beam caps are also available on special order for rough beam sizes.

MATERIAL: 18 ga. galvanized steel. Available in G-185 Triple Zinc or Hot-Dip Galvanized. Call for availability.

CODES: ICC ER-2894

Product Detail

• PB
• PB Installation
• EPB

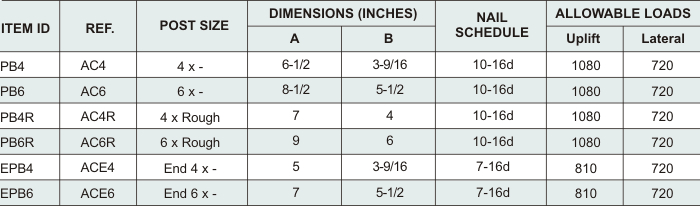

Load Table
