Roof Jacks

DESIGN FEATURES: Roof Jacks are used to receive and cover venting duct pipe from kitchen and bath fans, and for attic ventilation. Designed to provide maximum leak protection with a press-sealed built-in roof flashing. Vent caps provide protection from rain, snow and debris.

MATERIAL: 28 ga. galvanized steel.

AVAILABLE COLORS: Weather Wood, Brown, Black, and Galvanized. Straight pipe jacks are not available in painted.

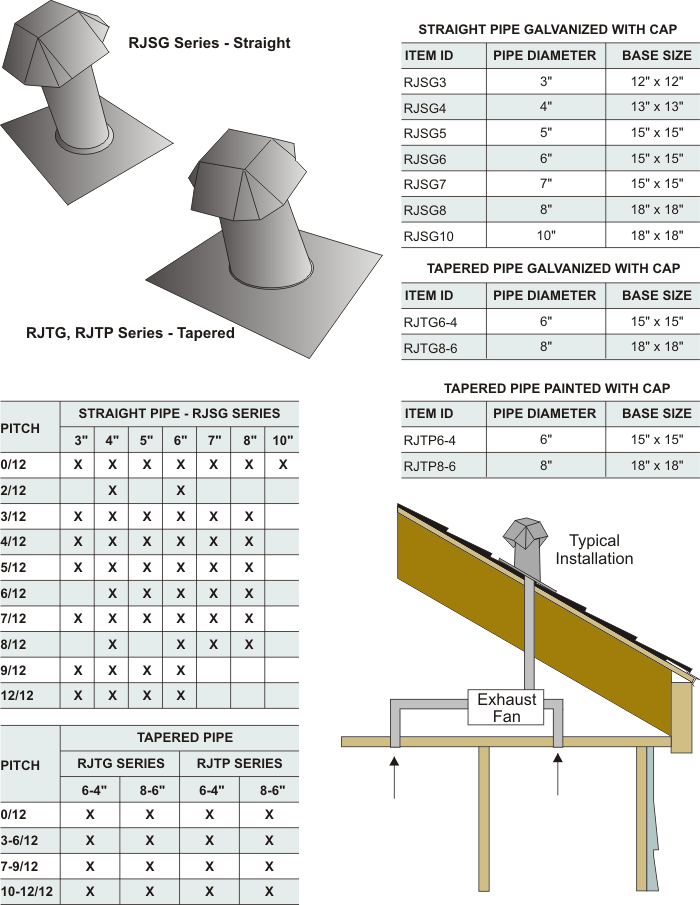

NOTE: Specify the pitch when ordering. See the chart below.
