Stud Plate Ties
DESIGN FEATURES: SPTs are used for wind resistance or seismic conditions. The Stud Plate Ties fasten the bottom plate or the top plate (double plate) to the studs.
MATERIAL: SPTH 18 ga. galvanized steel. All other parts 20 ga. galvanized steel
INSTALLATION: Use all specified fasteners. Nails must be installed into the plate before the stud. SPT4, SPT6 and SPT8 wrap completely around the double top plates. SPTR (stud Plate Tie Reversible) has locating lines which aid in placement on single bottom plate or double top plate conditions.
Product Detail
- SPT
- SPTH
- SPTR

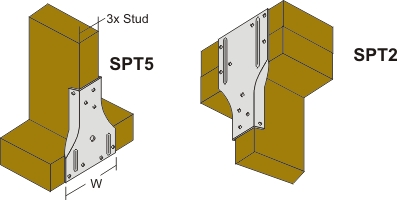

- SPT Installation
- SPTH Installation

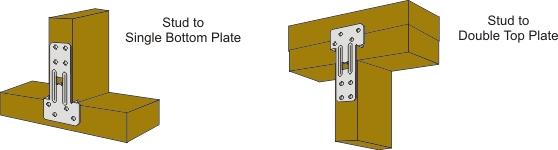

- SPTR Installation

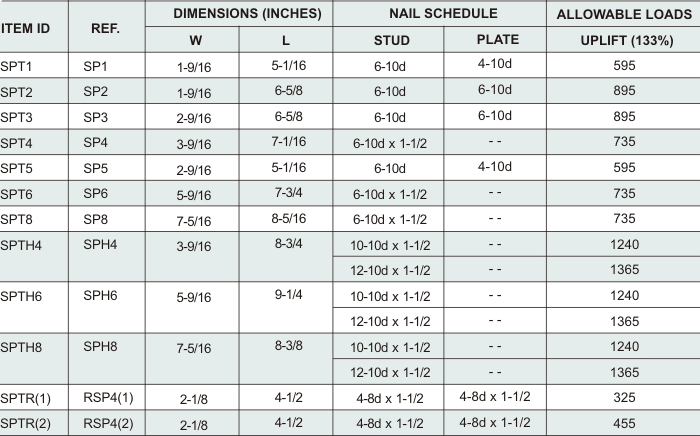

Load Table
