XEZV

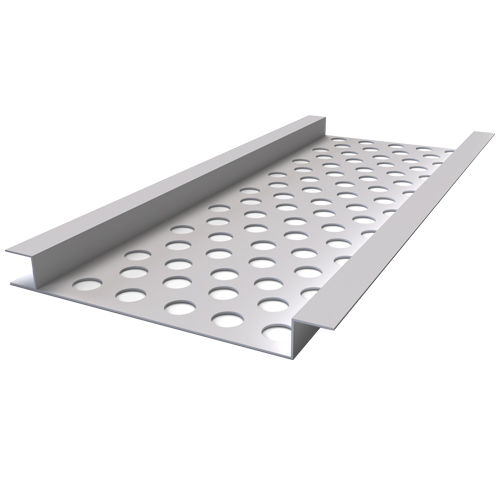

Aluminum Ezvent Continuous Soffit Vent

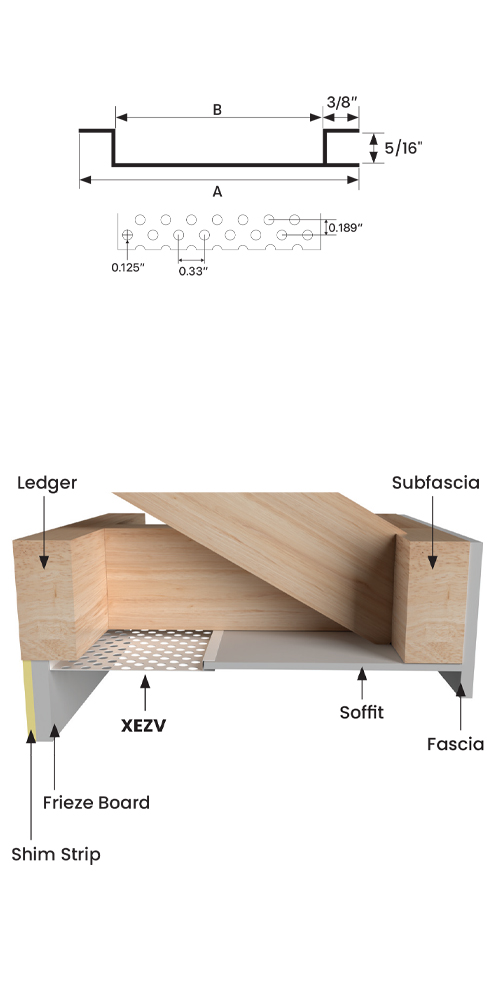

ITEM IDABFINISHNFA *
XEZV51628PC2-3/4”2”MILL9
XEZV51648PC4-3/4”4”MILL18.8
XEZV51668PC6-3/4”6”MILL27.8

All parts are 8’ Length standard unless otherwise indicated
*NFA =net free area / sq.in.per linear ft.

The other best looking, most “framer-friendly”, easy to install, effective continuous soffit vent on the market. Unique double leg channel hide edges of soffit material for clean look and help prevent vent from being pulled up into subfascia. Aluminum will not burn and thus is an important element in fire resistant construction.

MATERIALS: 6063 T-5 .050″ (1.27mm) ± .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.

FINISHES: Available in mill finish or white. Also available in popular siding/soffit colors in standard face only color match or full coverage CoastalColorCoating upon request.
XEZV

Aluminum Ezvent Continuous Soffit Vent

The other best looking, most “framer-friendly”, easy to install, effective continuous soffit vent on the market. Unique double leg channel hide edges of soffit material for clean look and help prevent vent from being pulled up into subfascia. Aluminum will not burn and thus is an important element in fire resistant construction.

MATERIALS: 6063 T-5 .050″ (1.27mm) ± .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.

FINISHES: Available in mill finish or white. Also available in popular siding/soffit colors in standard face only color match or full coverage CoastalColorCoating upon request.

ITEM IDABFINISHNFA *
XEZV51628PC2-3/4”2”MILL9
XEZV51648PC4-3/4”4”MILL18.8
XEZV51668PC6-3/4”6”MILL27.8

All parts are 8’ Length standard unless otherwise indicated
*NFA =net free area / sq.in.per linear ft.
