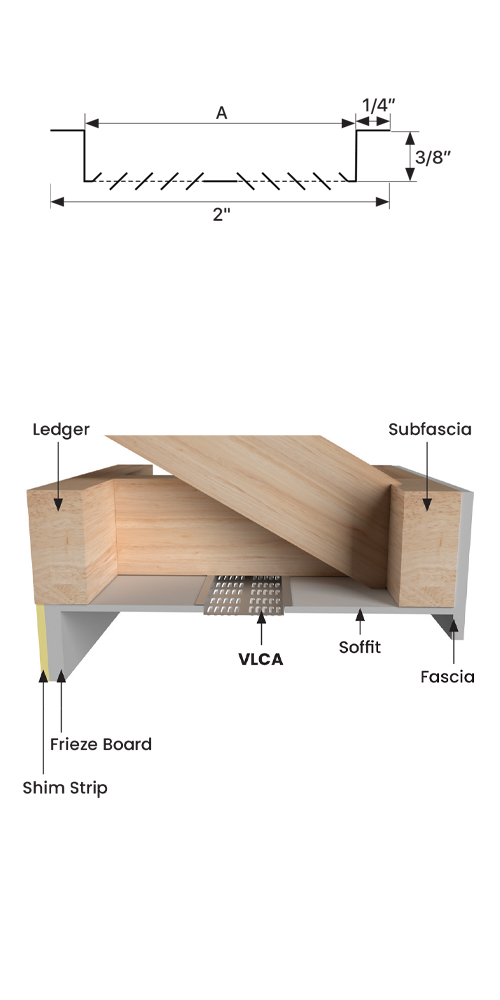

Aluminum Louvered Continuous Soffit Vent

ITEM ID | A | FINISH | NFA * |
---|---|---|---|
VLCA2 | 2-1\2” | MILL | 9 |
VLCA2-BR | 2-1\2” | BROWN | 9 |
VLCA2-WH | 2-1\2” | WHITE | 9 |
All parts are 8’ Length standard unless otherwise indicated
*NFA =net free area / sq.in.per linear ft.

MATERIALS: 3105-type aluminum sheet with a minimum tensile strength of 29,000 psi, or equivalent, as referenced in AAMA 1482-86 (paragraph 3.2.3). The metal shall be treated on both sides with a non-chromate chemical conversion coating to ensure excellent paint adhesion and resistance to corrosion.
FINISHES: Stocked in mill finish, white, and brown, Available in popular siding/soffit colors in standard face only color match or full coverage CoastalColor Coating™ upon request.
Aluminum Louvered Continuous Soffit Vent
Provides a continuous under soffit air flow to provide superior ventilation.
MATERIALS: 3105-type aluminum sheet with a minimum tensile strength of 29,000 psi, or equivalent, as referenced in AAMA 1482-86 (paragraph 3.2.3). The metal shall be treated on both sides with a non-chromate chemical conversion coating to ensure excellent paint adhesion and resistance to corrosion.
FINISHES: Stocked in mill finish, white, and brown, Available in popular siding/soffit colors in standard face only color match or full coverage CoastalColor Coating™ upon request.

ITEM ID | A | FINISH | NFA * |
---|---|---|---|
VLCA2 | 2-1\2” | MILL | 9 |
VLCA2-BR | 2-1\2” | BROWN | 9 |
VLCA2-WH | 2-1\2” | WHITE | 9 |
All parts are 8’ Length standard unless otherwise indicated
*NFA =net free area / sq.in.per linear ft.
