Aluminum Mini Circle Vents
| ITEM ID | OVERALL SIZE | AIRFLOW FACE SIZE | FINISH | NFA * |
|---|---|---|---|---|
| CLV1 | 1-1/4” | 1” | MILL | 0.23 |
| CLV1W | 1-1/4” | 1” | WHITE | 0.23 |
| CLV2 | 2-1/4” | 2” | MILL | 1.50 |
| CLV2W | 2-1/4” | 2” | WHITE | 1.50 |
| CLV3 | 3-1/2” | 3” | MILL | 2.57 |
| CLV3W | 3-1/2” | 3” | WHITE | 2.57 |
| CLV4 | 4-1/2” | 4” | MILL | 3.00 |
| CLV4W | 4-1/2” | 4” | WHITE | 3.00 |
*NFA =net free area / sq.in.per linear ft.
MATERIALS: 3105-type aluminum sheet with a minimum tensile strength of 29,000 psi, or equivalent, as referenced in AAMA 1482-86 (paragraph 3.2.3). The metal shall be treated on both sides with a non-chromate chemical conversion coating to ensure excellent paint adhesion and resistance to corrosion.
FINISHES: Available in mill finish or white.

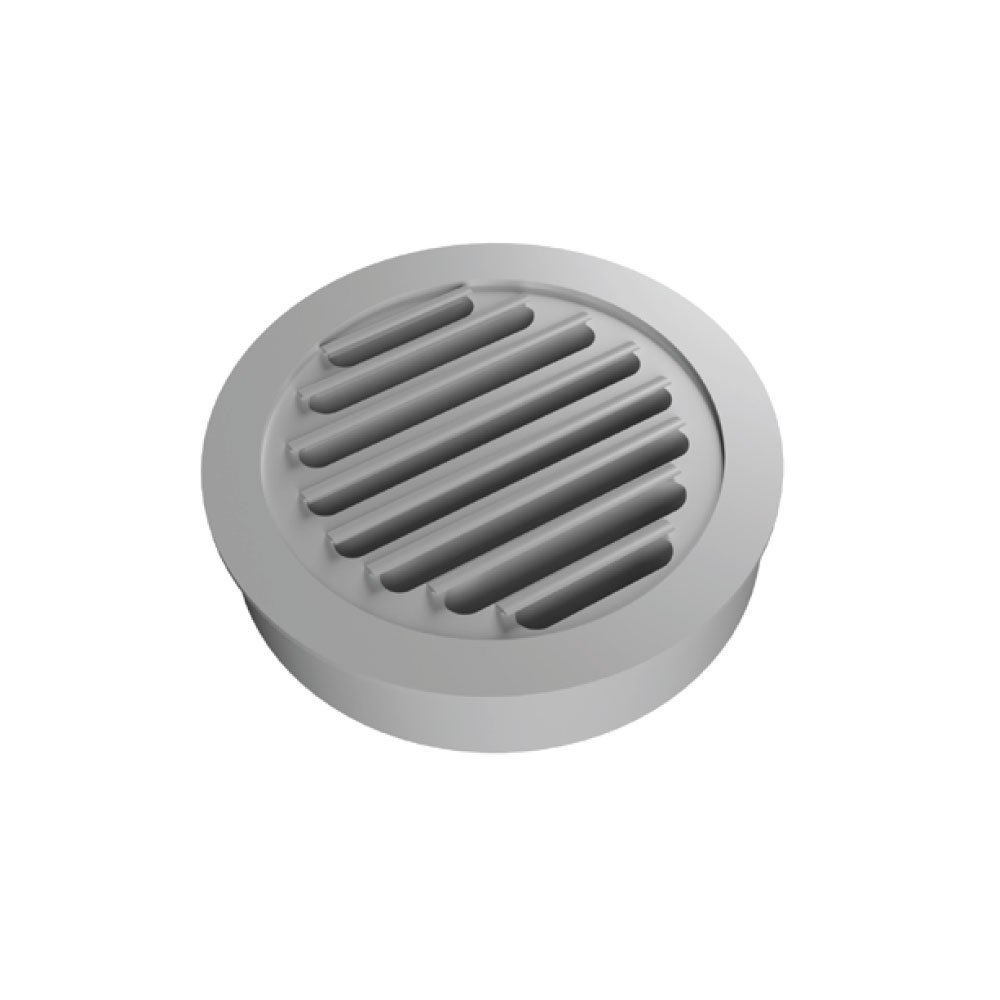

Aluminum Mini Circle Vents

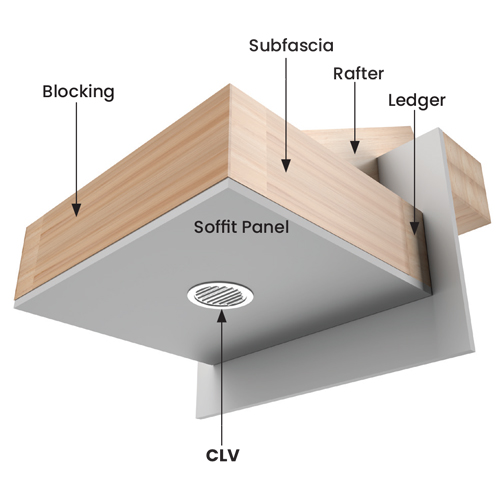

Provides an outlet for air movement in confined spaces. Flush design allows tap-in installation.
MATERIALS: 3105-type aluminum sheet with a minimum tensile strength of 29,000 psi, or equivalent, as referenced in AAMA 1482-86 (paragraph 3.2.3). The metal shall be treated on both sides with a non-chromate chemical conversion coating to ensure excellent paint adhesion and resistance to corrosion.
FINISHES: Available in mill finish or white.
| ITEM ID | OVERALL SIZE | AIRFLOW FACE SIZE | FINISH | NFA * |
|---|---|---|---|---|
| CLV1 | 1-1/4” | 1” | MILL | 0.23 |
| CLV1W | 1-1/4” | 1” | WHITE | 0.23 |
| CLV2 | 2-1/4” | 2” | MILL | 1.50 |
| CLV2W | 2-1/4” | 2” | WHITE | 1.50 |
| CLV3 | 3-1/2” | 3” | MILL | 2.57 |
| CLV3W | 3-1/2” | 3” | WHITE | 2.57 |
| CLV4 | 4-1/2” | 4” | MILL | 3.00 |
| CLV4W | 4-1/2” | 4” | WHITE | 3.00 |
*NFA =net free area / sq.in.per linear ft.
