VPCA

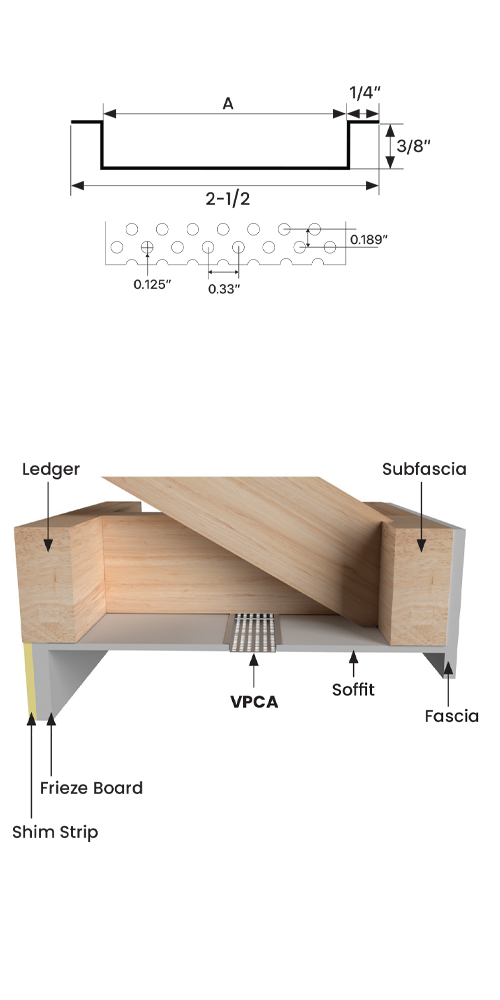

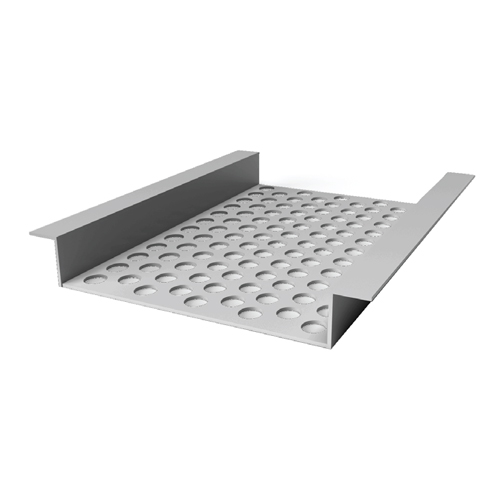

Aluminum Perforated Continuous Soffit Vent

ITEM IDAFINISHNFA *
VPCA22”MILL9
VPCA2-BK2”BLACK9
VPCA2-BR2”BROWN9
VPCA2-WH2”WHITE9
VPCA44”MILL18.8
VPCA4-BK4”BLACK18.8
VPCA4-BR4”BROWN18.8
VPCA4-WH4”WHITE18.8
VPCA6 *6”MILL27.8
VPCA6-BK *6”BLACK27.8
VPCA6-BR *6”BROWN27.8
VPCA6-WH *6”WHITE27.8

*SPECIAL ORDER ITEMS
All parts are 8’ Length standard unless otherwise indicated
*NFA =net free area / sq.in.per linear ft.

Provides a continuous under soffit air flow to provide superior ventilation.

MATERIALS: 3105-type aluminum sheet with a minimum tensile strength of 29,000 psi, or equivalent, as referenced in AAMA 1482-86 (paragraph 3.2.3). The metal shall be treated on both sides with a non-chromate chemical conversion coating to ensure excellent paint adhesion and resistance to corrosion.

FINISHES: Stocked in mill finished, white, black and brown. Available in popular siding/soffit colors in standard face only color match or full coverage Coastal Color Coating/TM upon request.

VPCA4 DWG Download
VPCA6 DWG Download
VPCA

Aluminum Perforated Continuous Soffit Vent

Provides a continuous under soffit air flow to provide superior ventilation.

MATERIALS: 3105-type aluminum sheet with a minimum tensile strength of 29,000 psi, or equivalent, as referenced in AAMA 1482-86 (paragraph 3.2.3). The metal shall be treated on both sides with a non-chromate chemical conversion coating to ensure excellent paint adhesion and resistance to corrosion.

FINISHES: Stocked in mill finished, white, black and brown. Available in popular siding/soffit colors in standard face only color match or full coverage Coastal Color Coating/TM upon request.

VPCA4 DWG Download

VPCA6 DWG Download

ITEM IDAFINISHNFA *
VPCA22”MILL9
VPCA2-BK2”BLACK9
VPCA2-BR2”BROWN9
VPCA2-WH2”WHITE9
VPCA44”MILL18.8
VPCA4-BK4”BLACK18.8
VPCA4-BR4”BROWN18.8
VPCA4-WH4”WHITE18.8
VPCA6 *6”MILL27.8
VPCA6-BK *6”BLACK27.8
VPCA6-BR *6”BROWN27.8
VPCA6-WH *6”WHITE27.8

*SPECIAL ORDER ITEMS
All parts are 8’ Length standard unless otherwise indicated
*NFA =net free area / sq.in.per linear ft.
