Aluminum Snapvent Continuous Soffit Vent

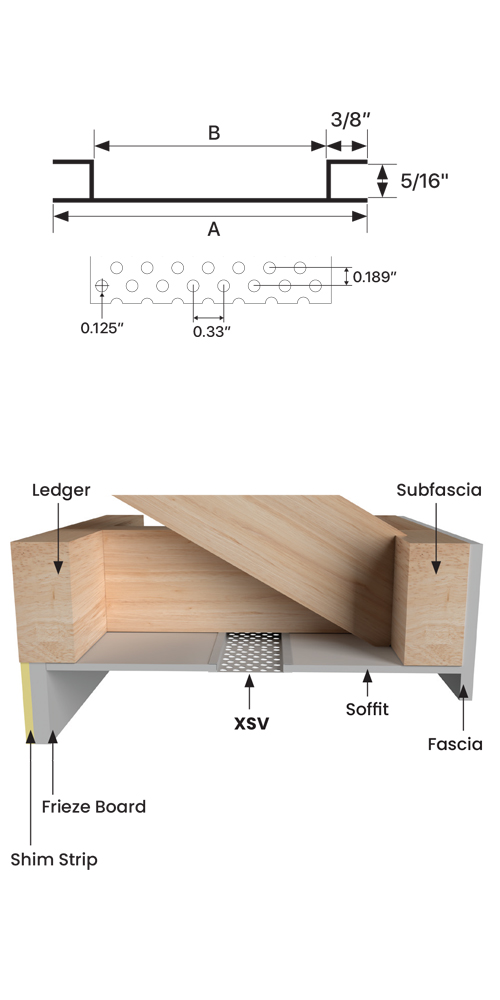

| ITEM ID | A | B | FINISH | NFA * |
|---|---|---|---|---|
| XSV51628 | 2-3/4” | 2” | MILL | 9 |
| XSV51648 | 4-3/4” | 4” | MILL | 18.8 |
| XSV51668 | 6-3/4” | 6” | MILL | 27.8 |
MATERIALS: 6063 T-5 .050″ (1.27mm) ± .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.
FINISHES: Available in mill finish or white. Also available in popular siding/soffit colors in standard face only color match or full coverage CoastalColorCoating™ upon request.
NOTE:All parts are 8’ Length standard unless otherwise indicated *NFA =net free area / sq.in.per linear ft.
Aluminum Snapvent Continuous Soffit Vent
The best looking, most “framer-friendly”, easy to install, effective continuous soffit vent on the market. Unique double leg channels hide edges of soffit material for clean look and help prevent vent from being pulled up into subfascia. Complies with the International Residential Code requiring that ventilation be balanced 50% exhaust / 50% intake (soffit) in all situations including continuous ridge vents. Aluminum will not burn and thus is an important element in fire resistant construction.
MATERIALS: 6063 T-5 .050″ (1.27mm) ± .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.
FINISHES: Available in mill finish or white. Also available in popular siding/soffit colors in standard face only color match or full coverage CoastalColorCoating™ upon request.
NOTE:All parts are 8’ Length standard unless otherwise indicated *NFA =net free area / sq.in.per linear ft.
| ITEM ID | A | B | FINISH | NFA * |
|---|---|---|---|---|
| XSV51628 | 2-3/4” | 2” | MILL | 9 |
| XSV51648 | 4-3/4” | 4” | MILL | 18.8 |
| XSV51668 | 6-3/4” | 6” | MILL | 27.8 |
