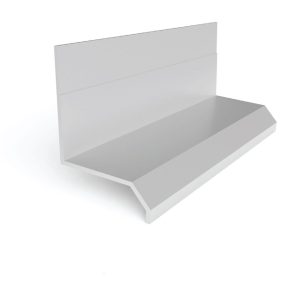

Basic Horizontal Z

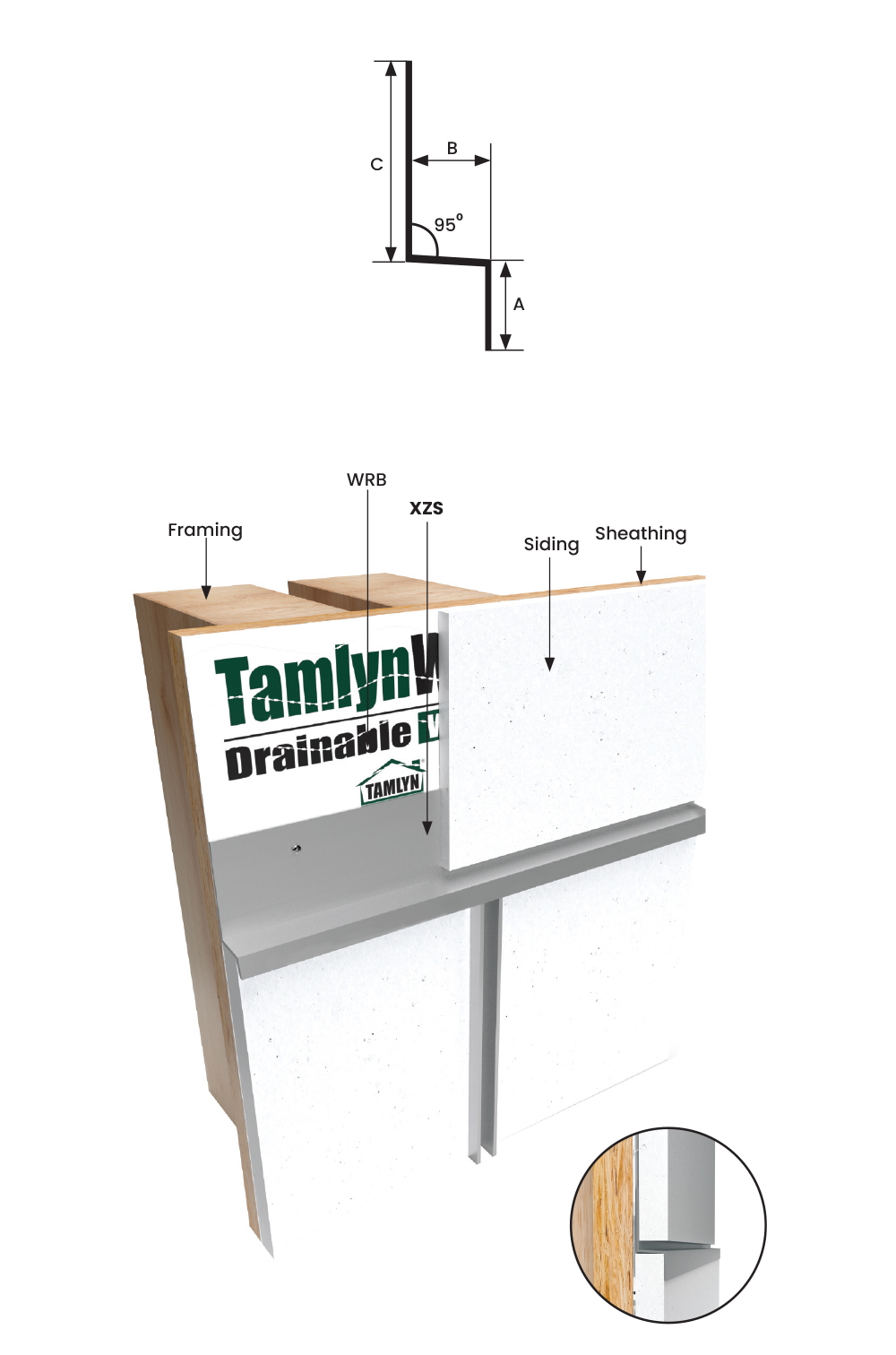

All measurements are nominal
| ITEM ID | A | B | C |
|---|---|---|---|
| XZS5168 | 3/8” | 5/16” | 3/4” |
| XZS516W* | 3/8” | 5/16” | 1-1/2” |
| XZS7168 | 3/8” | 7/16” | 1” |
| XZS588 | 3/8” | 5/8” | 1” |
All parts are 8’ Length unless otherwise indicated.
*XZS516W-10′ Length
MATERIALS: 6063-T5 .035″ ± .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.
NOTE: Do not install XtremeTrim® Basic Horizontal Z on horizontal applications where the exterior flange can catch/hold water.

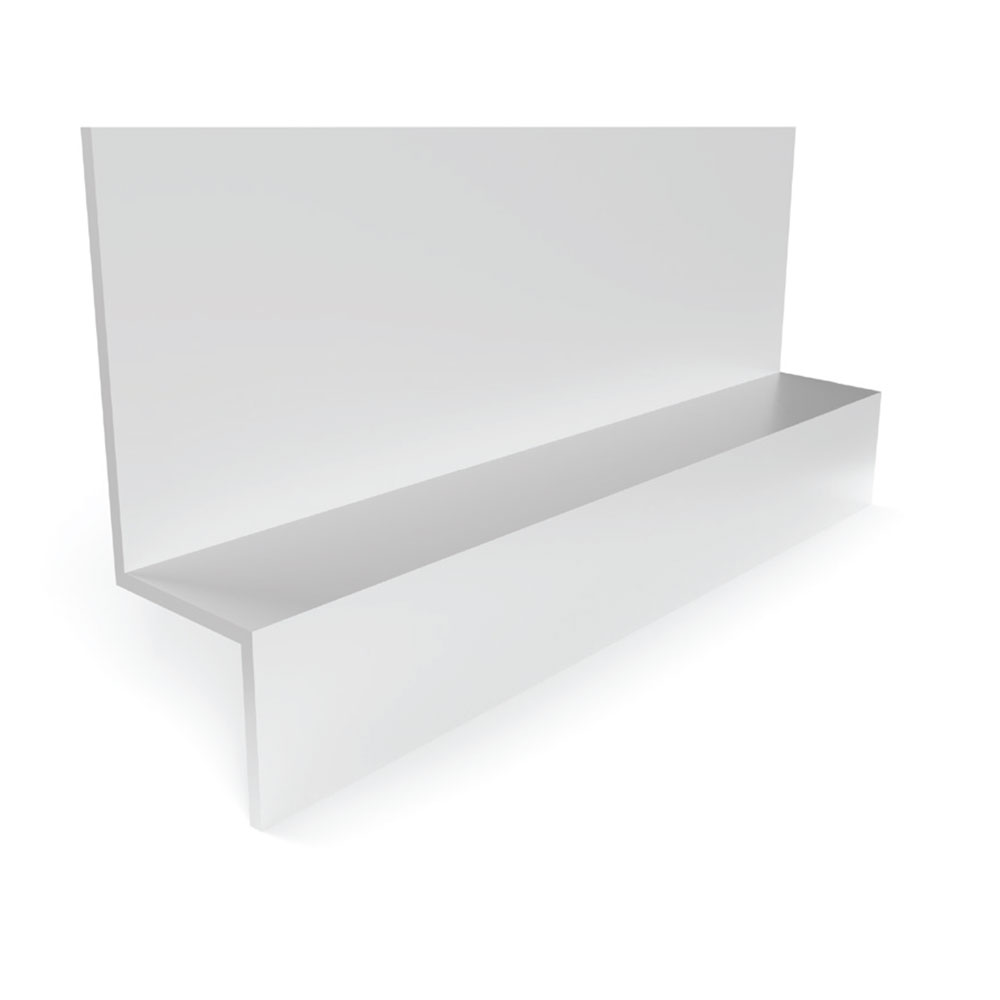

Basic Horizontal Z
Provides clean and consistent horizontal transition between panels. Can be used as independent profiles to accomodate design requirements and also the XZS516W can be used with the RV to create an vertical continuous installation and is the horizontal typically used with the RVC.
MATERIALS: 6063-T5 .035″ ± .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.
NOTE: Do not install XtremeTrim® Basic Horizontal Z on horizontal applications where the exterior flange can catch/hold water.
All measurements are nominal
| ITEM ID | A | B | C |
|---|---|---|---|
| XZS5168 | 3/8” | 5/16” | 3/4” |
| XZS516W* | 3/8” | 5/16” | 1-1/2” |
| XZS7168 | 3/8” | 7/16” | 1” |
| XZS588 | 3/8” | 5/8” | 1” |
All parts are 8’ Length unless otherwise indicated.
*XZS516W-10′ Length
