Basic J-Mold
All measurements are nominal

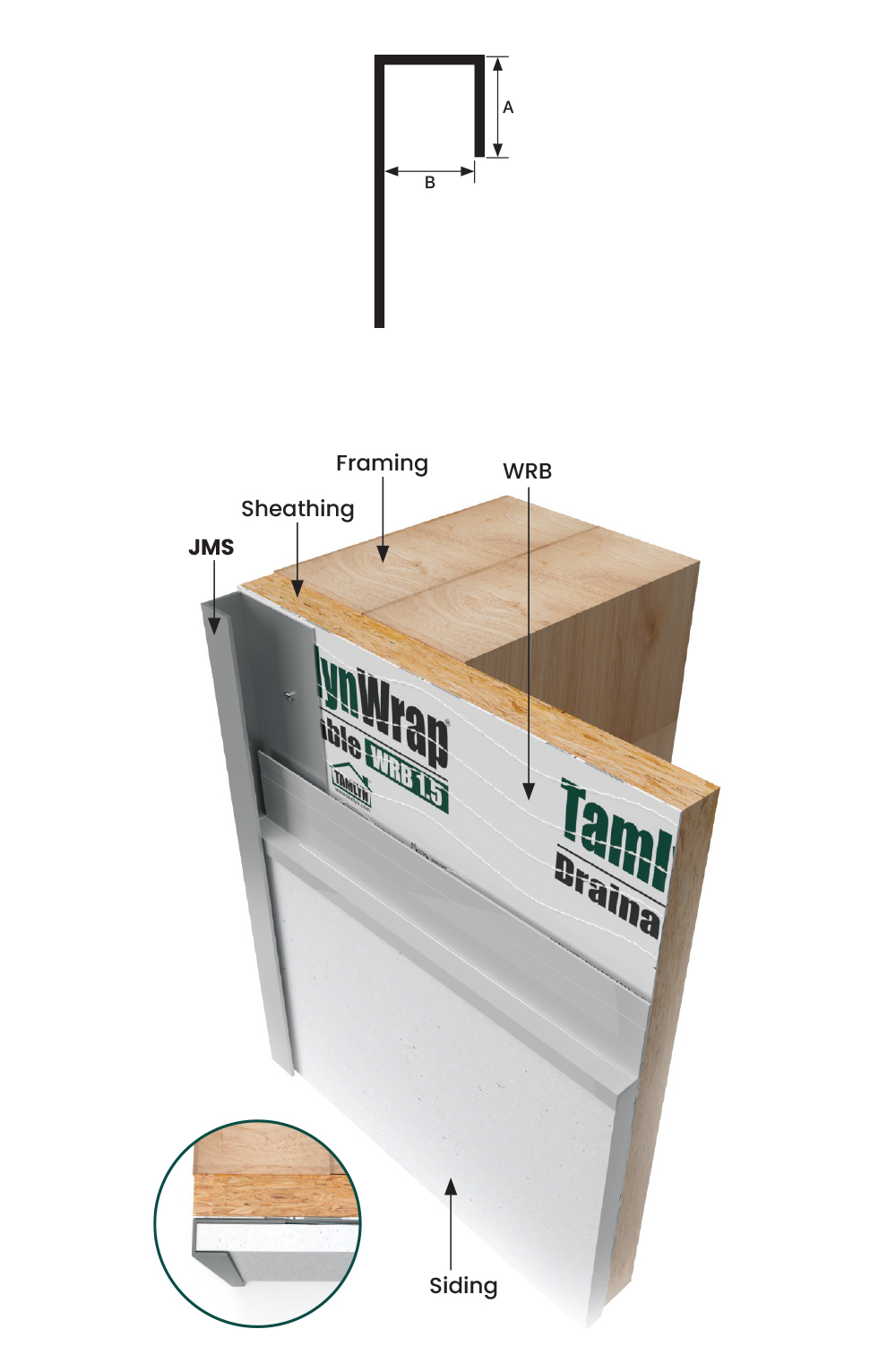

| ITEM ID | A | B | LENGTH |
|---|---|---|---|
| JMS5168 | 3/8โ | 5/16โ | 8โ |
| JMS7168 | 3/8โ | 7/16โ | 8โ |
| JMS588 | 3/8โ | 5/8โ | 8โ |
MATERIALS:ย 6063-T5 .040″ ยฑ .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.
NOTE:ย Do not install XtremeTrimยฎ Basic J Mold on horizontal applications where the exterior flange can catch water.

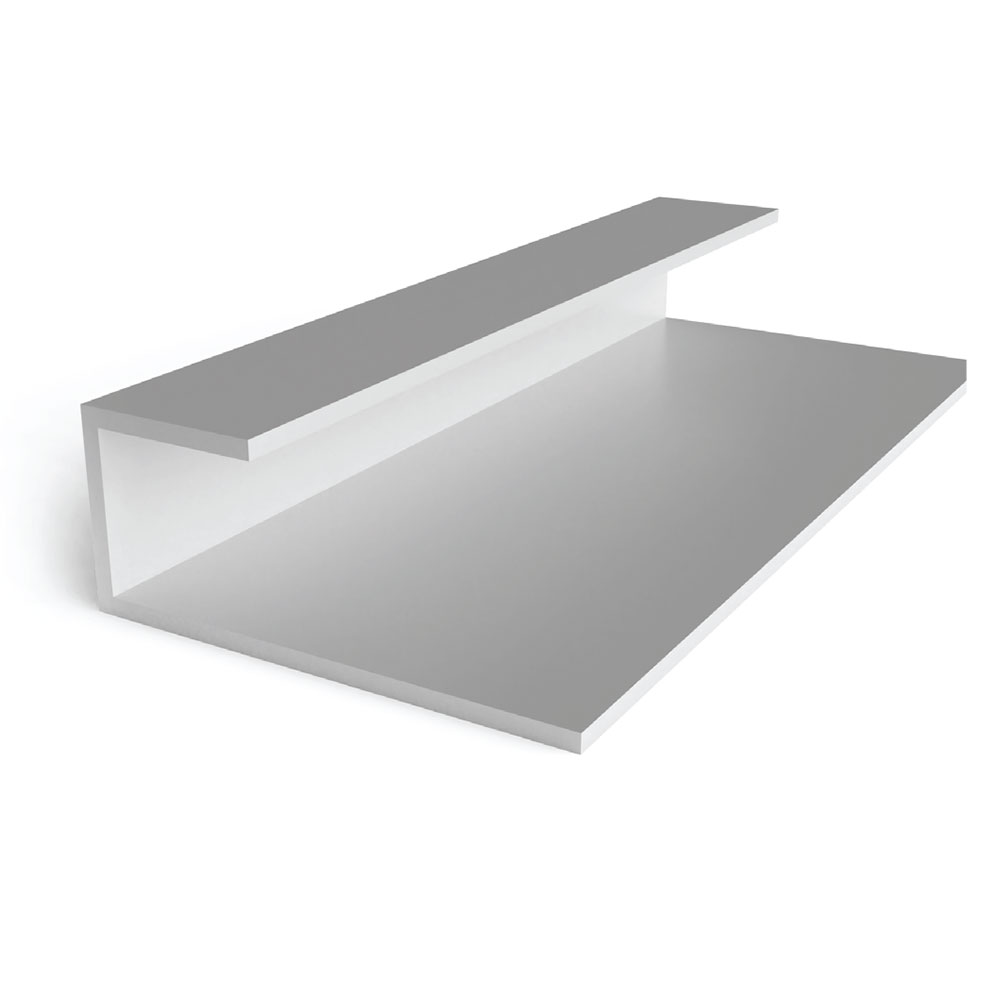

Basic J-Mold
Provides a clean finish at openings, edges of panels and at material transitions. True size designed as an independent profile. Use as a closure/cap piece only.
MATERIALS:ย 6063-T5 .040″ ยฑ .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.
NOTE:ย Do not install XtremeTrimยฎ Basic J Mold on horizontal applications where the exterior flange can catch water.
All measurements are nominal
| ITEM ID | A | B | LENGTH |
|---|---|---|---|
| JMS5168 | 3/8โ | 5/16โ | 8โ |
| JMS7168 | 3/8โ | 7/16โ | 8โ |
| JMS588 | 3/8โ | 5/8โ | 8โ |
