Batten Panel Outside Corner

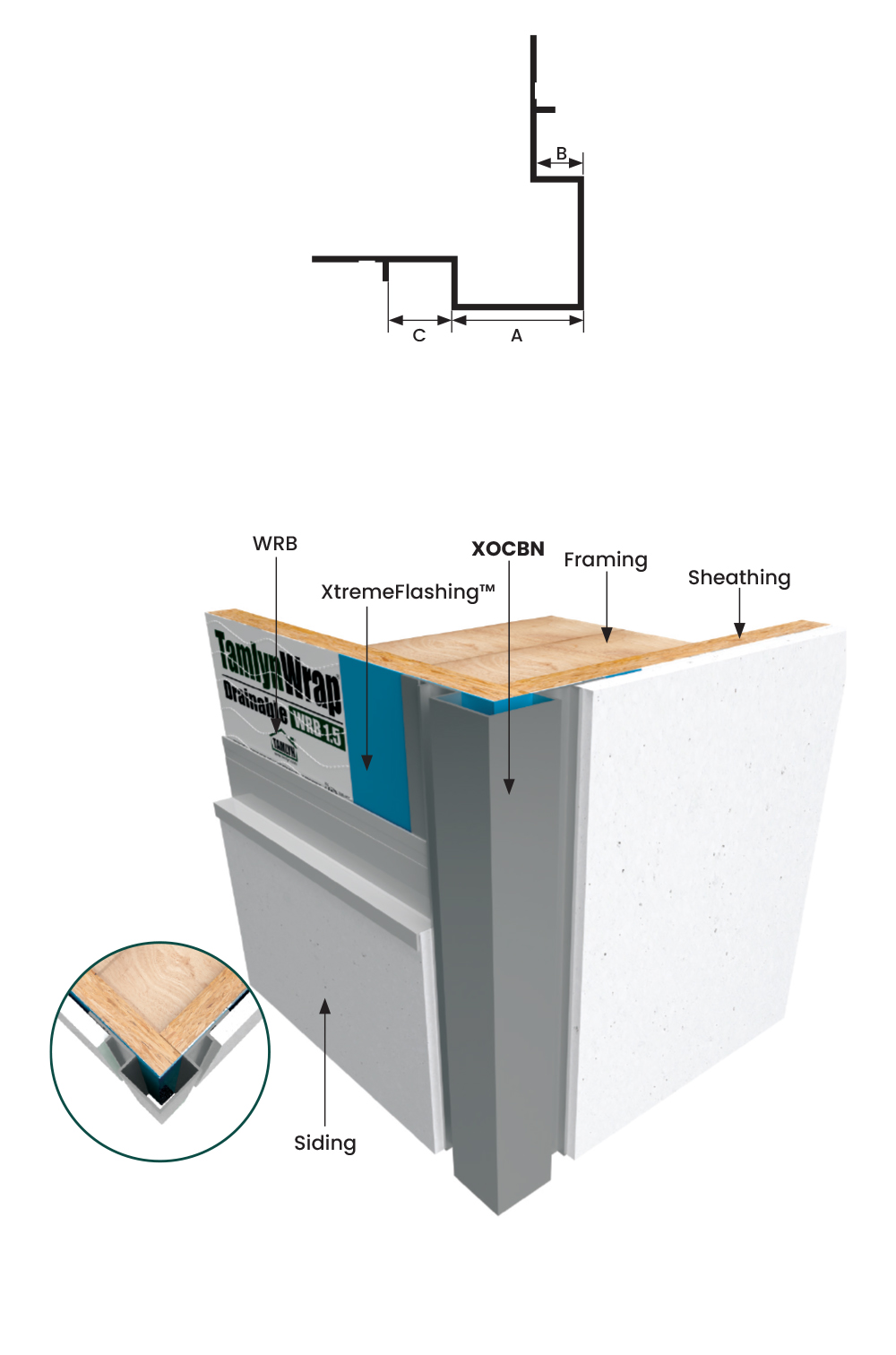

All measurements are nominal
| ITEM ID | A | B | C |
|---|---|---|---|
| XOCBN516 | 1โ | 3/8โ | 1/2โ |
All parts are 10โ Length unless otherwise indicated
MATERIALS:ย 6063-T5 .050″ ยฑ .005, extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.
NOTE:ย Do not install XtremeTrimยฎ Batten Panel Outside Corner on horizontal applications where exterior flange can catch/hold water.

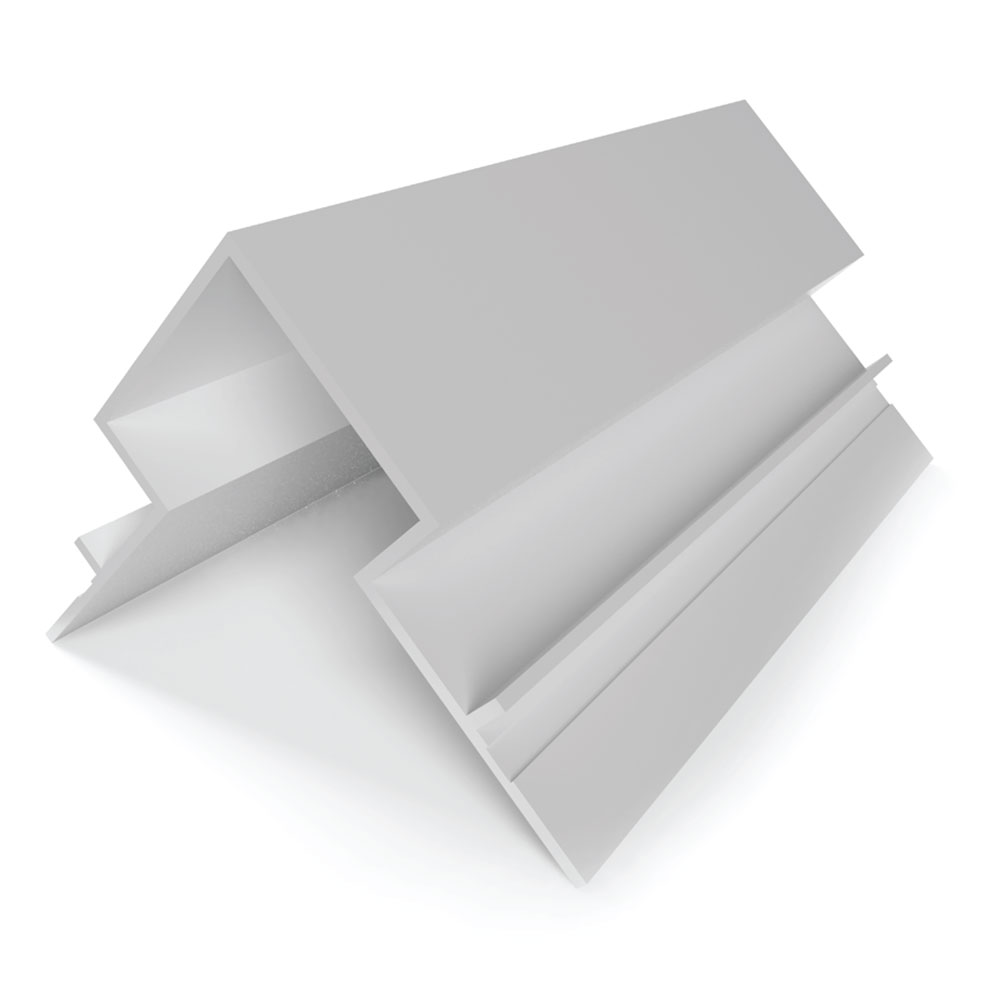

Batten Panel Outside Corner
Batten Corner offers a bold, unique corner for vertical siding panels. Tabs create a reveal corner. Pairs well with the Bead system.
MATERIALS:ย 6063-T5 .050″ ยฑ .005, extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.
NOTE:ย Do not install XtremeTrimยฎ Batten Panel Outside Corner on horizontal applications where exterior flange can catch/hold water.
All measurements are nominal
| ITEM ID | A | B | C |
|---|---|---|---|
| XOCBN516 | 1โ | 3/8โ | 1/2โ |
All parts are 10โ Length unless otherwise indicated
