Butted Outside Corner
All measurements are nominal

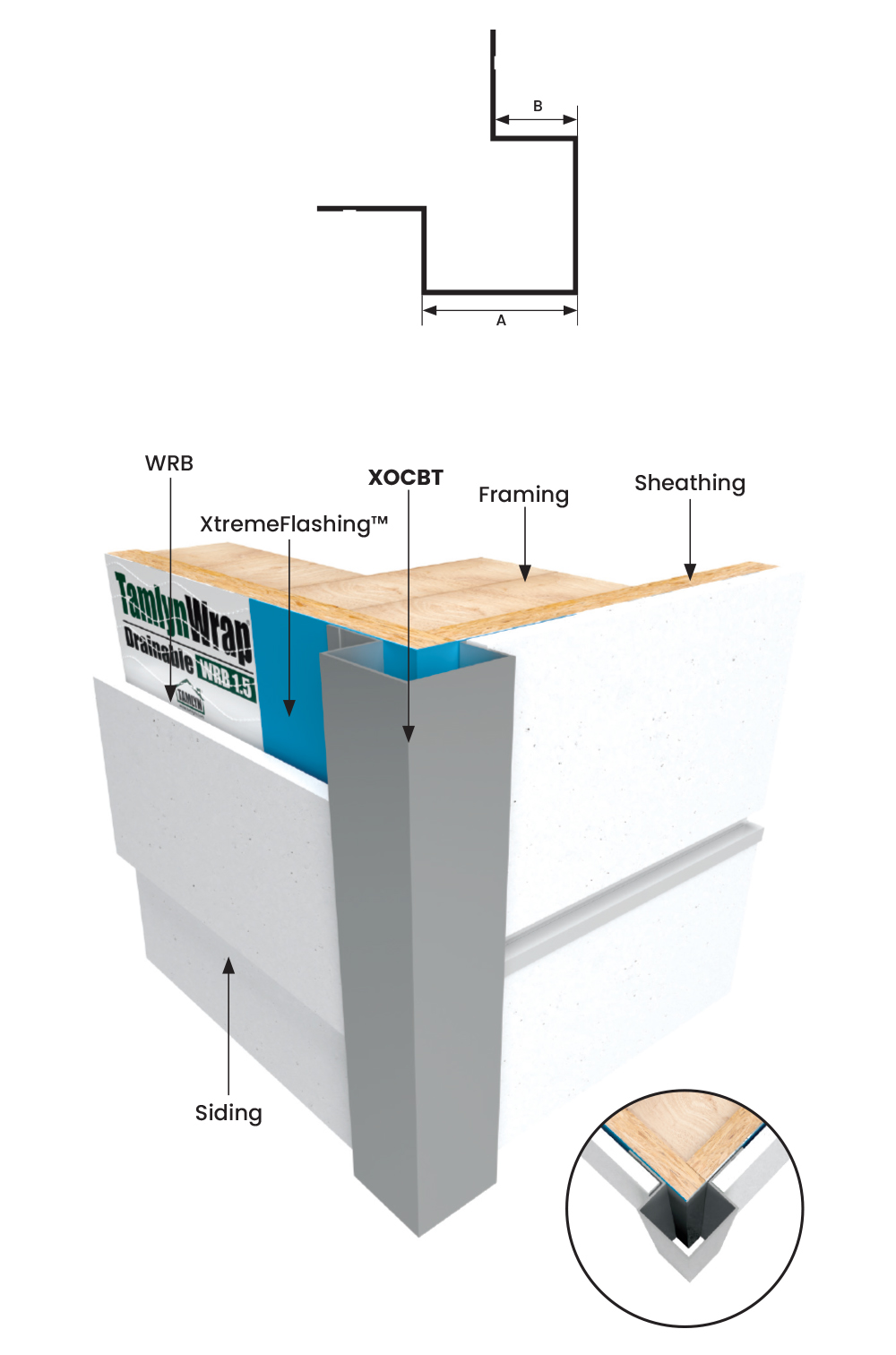

| ITEM ID | A | B |
|---|---|---|
| XOCBT | 1-1/2” | 3/4” |
All parts are 10’ Length unless otherwise indicated
MATERIALS: 6063-T5 .050″ ± .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.
NOTE: Do not install XtremeTrim® Butted Outside Corner on horizontal applications where the exterior flange can catch/hold water.

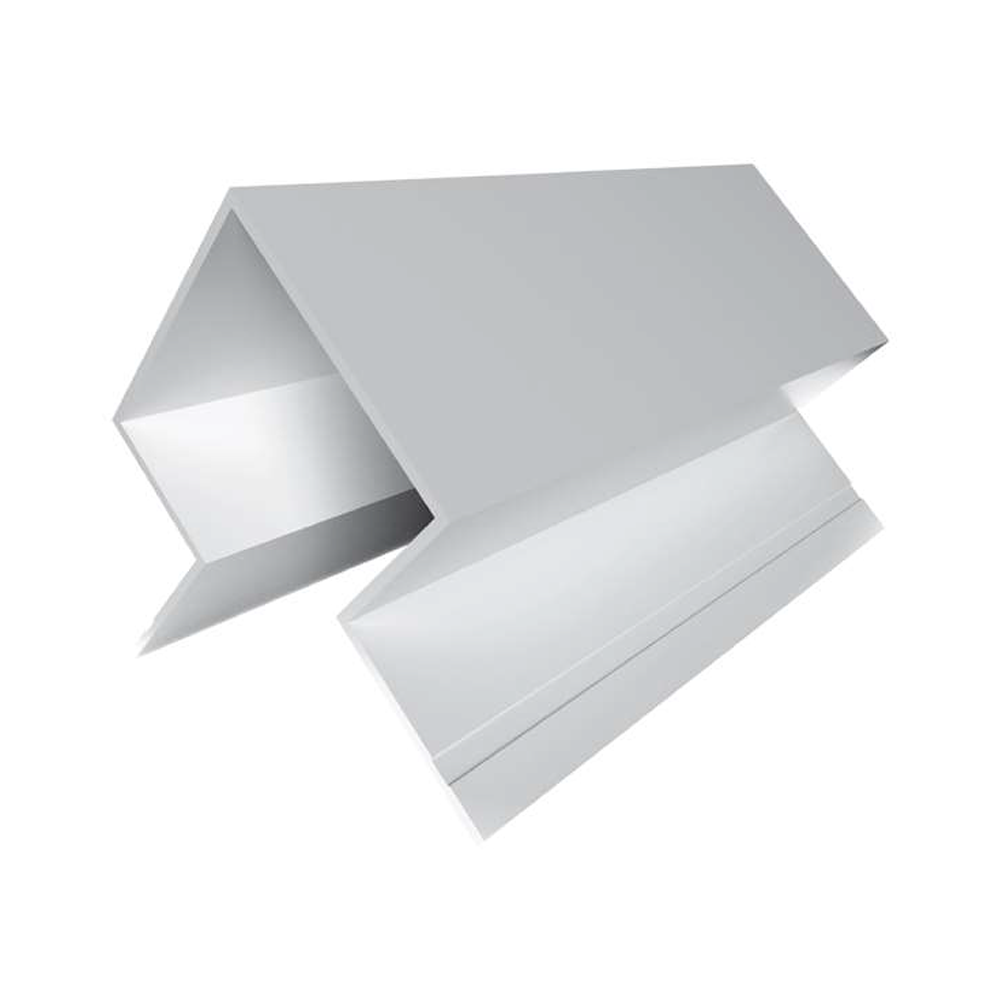

Butted Outside Corner
Gives a solid appearance with the versatility to be used with mixed materials and any vertical and horizontal profiles.
MATERIALS: 6063-T5 .050″ ± .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.
NOTE: Do not install XtremeTrim® Butted Outside Corner on horizontal applications where the exterior flange can catch/hold water.
All measurements are nominal
| ITEM ID | A | B |
|---|---|---|
| XOCBT | 1-1/2” | 3/4” |
All parts are 10’ Length unless otherwise indicated
