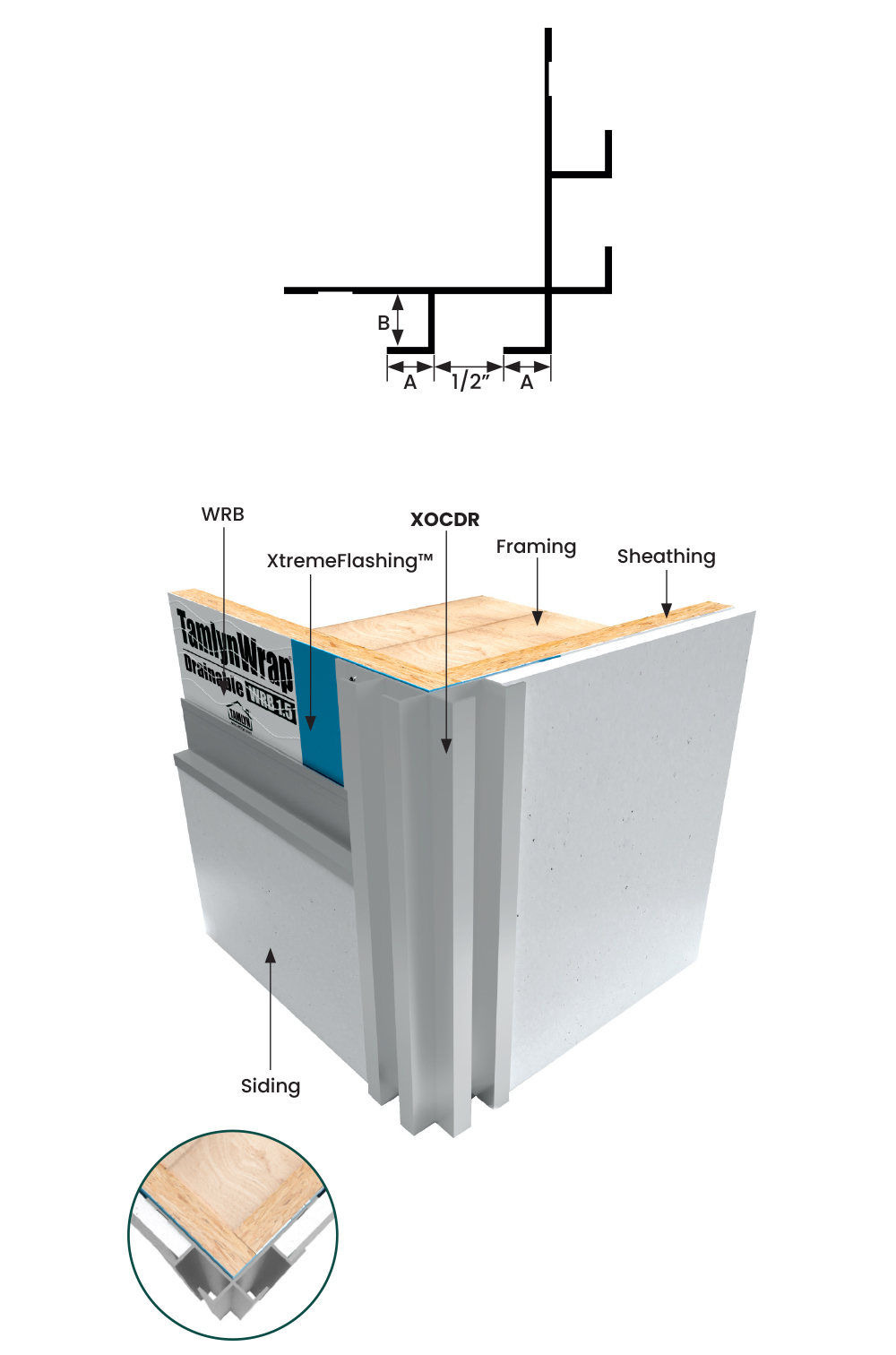

Double Reveal Outside Corner
All measurements are nominal
| ITEM ID | A | B |
|---|---|---|
| XOCDR516 | 3/8โ | 3/8โ |
All parts are 10โ Length unless otherwise indicated
MATERIALS:ย 6063-T5 .050″ ยฑ .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.
NOTE:ย Do not install XtremeTrimยฎ Double Reveal Outside Corner on horizontal applications where the exterior flange can catch/hold water.

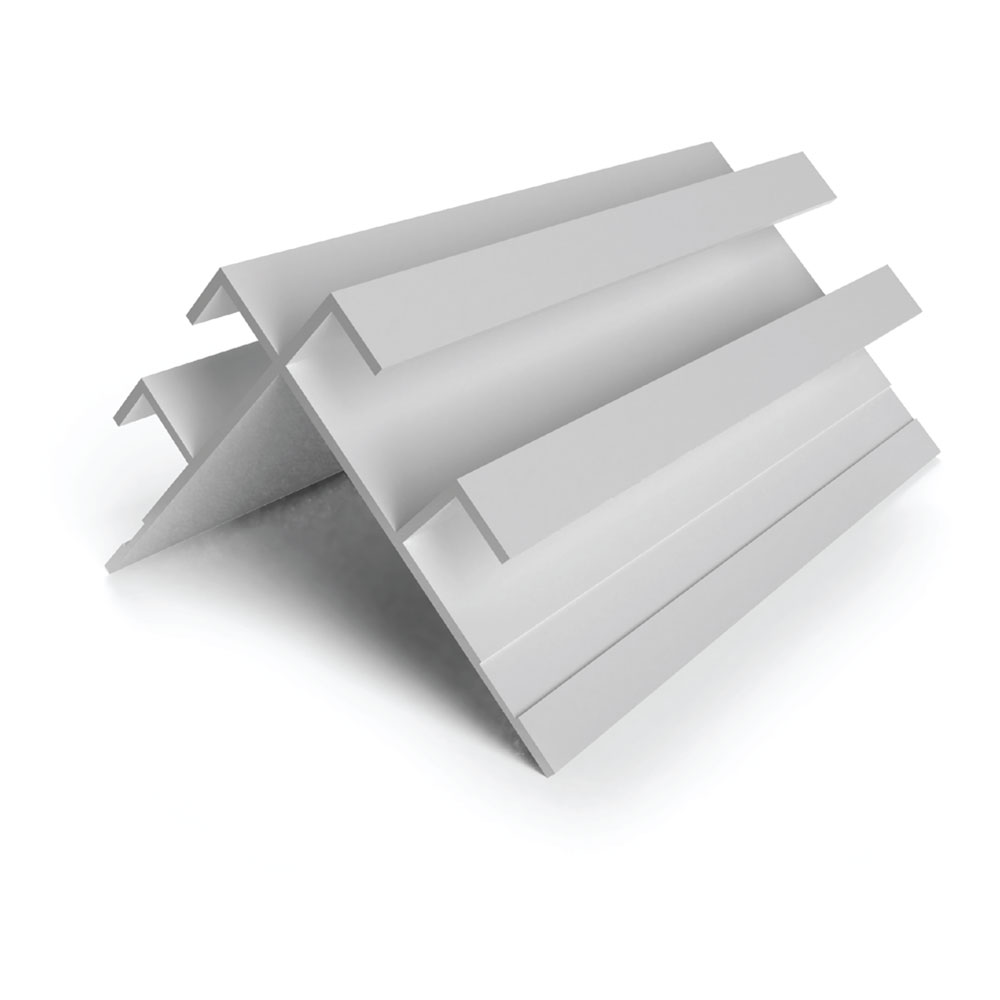

Double Reveal Outside Corner
An outside corner that complement the Vertical Reveal System.
MATERIALS:ย 6063-T5 .050″ ยฑ .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.
NOTE:ย Do not install XtremeTrimยฎ Double Reveal Outside Corner on horizontal applications where the exterior flange can catch/hold water.
All measurements are nominal
| ITEM ID | A | B |
|---|---|---|
| XOCDR516 | 3/8โ | 3/8โ |
All parts are 10โ Length unless otherwise indicated
