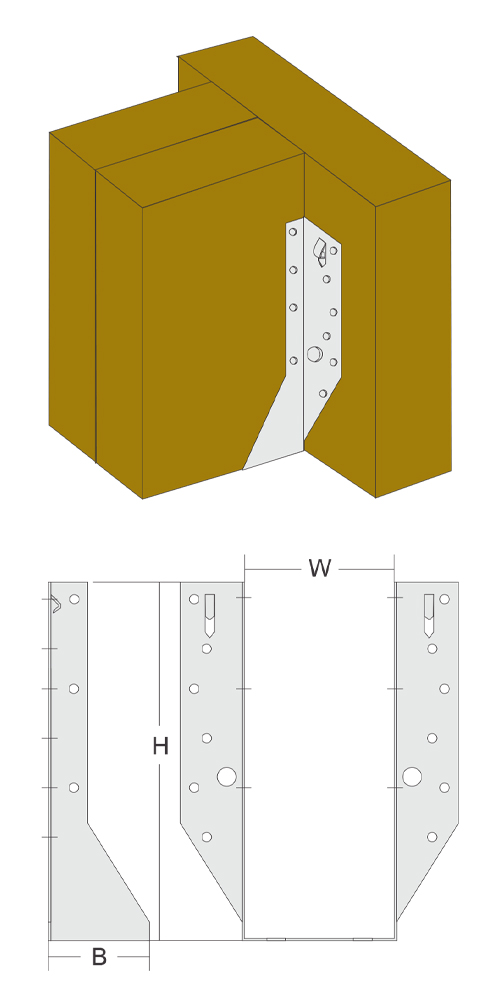

Double, Triple, Quad Hangers
MATERIALS: 18ga. galvanized steel. Available in G-185 Triple Zinc or Hot-Dip Galvanized. Call for availability.
CODES: FL Approval #8283, ICC ESR-1347, ICC ER-2556

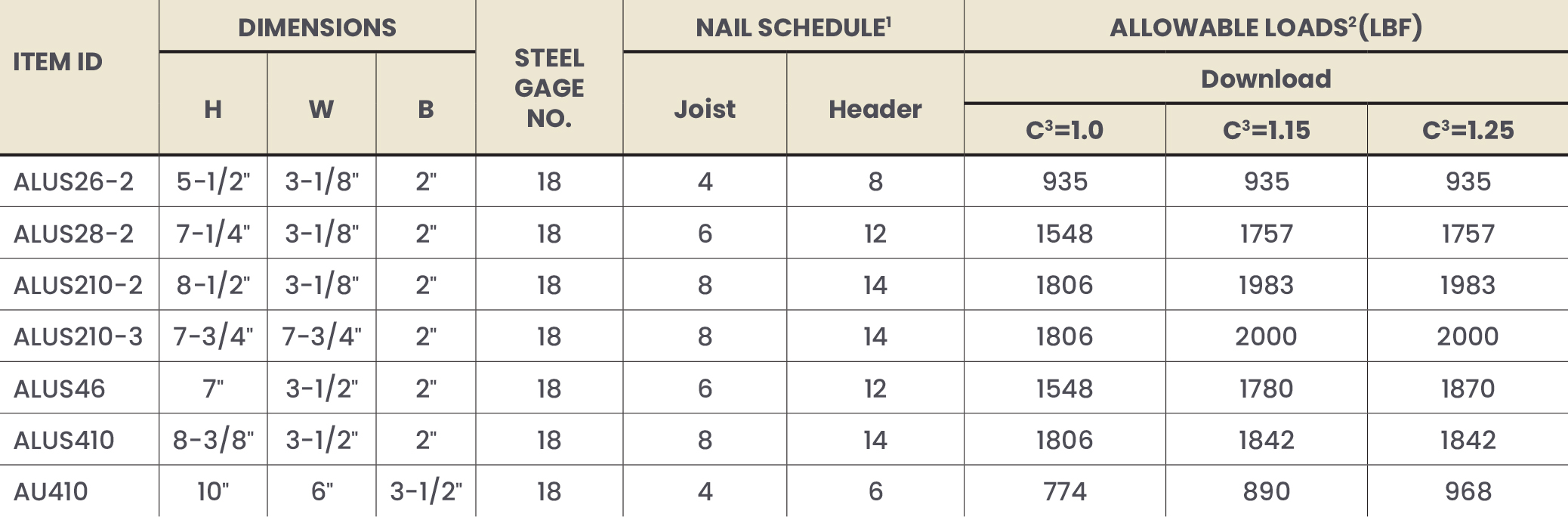

NOTE: 1.Allowable loads are for hangers nailed into wood or structural composite lumber having an effective specific gravity of 0.55 (such as Southern Pine) or greater.
2. Allowable uplift loads have been adjusted by a load duration factor C , of 1.6 (160%), D corresponding to the typical duration of wind and earthquake loads.
3. Allowable gravity (bearing) loads have been adjusted by load duration factors, CD, of 1.0 (100%), 1.15 (115%), and 1.25 (125%), corresponding to the typical durations of occupancy live loads, snow loads and construction loads, respectively. No further increases in allowable loads are permitted.
Double, Triple, Quad Hangers
TAMLYN custom-die designed and manufactured for quick installation and maximum load value.
MATERIALS: 18ga. galvanized steel. Available in G-185 Triple Zinc or Hot-Dip Galvanized. Call for availability.
CODES: FL Approval #8283, ICC ESR-1347, ICC ER-2556
NOTE: 1.Allowable loads are for hangers nailed into wood or structural composite lumber having an effective specific gravity of 0.55 (such as Southern Pine) or greater.
2. Allowable uplift loads have been adjusted by a load duration factor C , of 1.6 (160%), D corresponding to the typical duration of wind and earthquake loads.
3. Allowable gravity (bearing) loads have been adjusted by load duration factors, CD, of 1.0 (100%), 1.15 (115%), and 1.25 (125%), corresponding to the typical durations of occupancy live loads, snow loads and construction loads, respectively. No further increases in allowable loads are permitted.
