TFAL, AP45

Framing Anchors

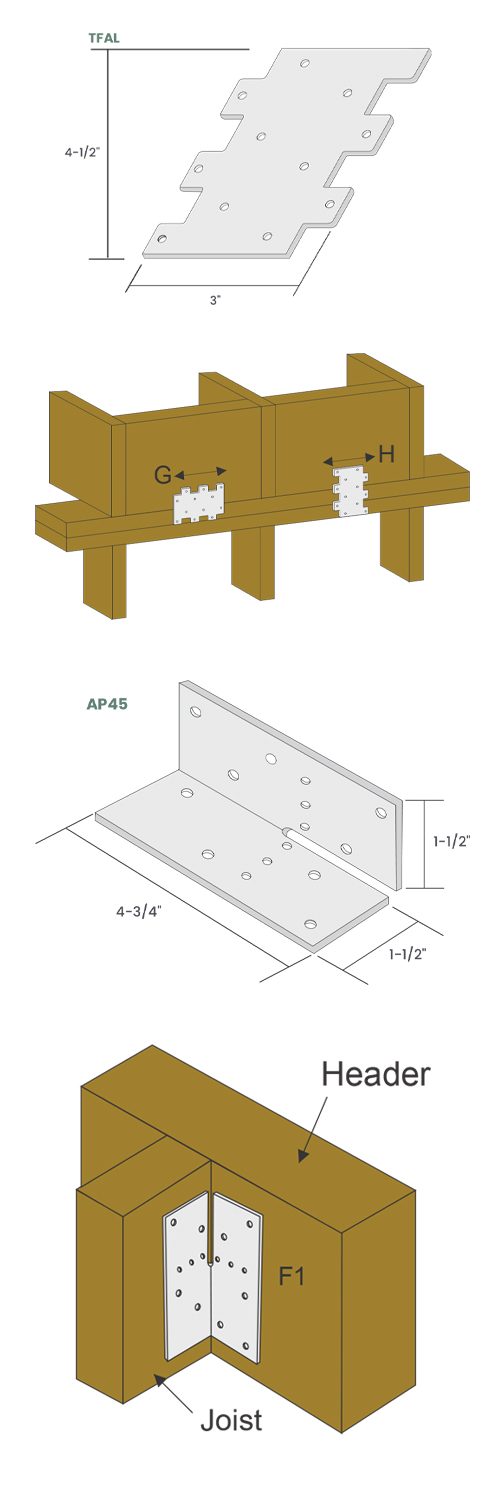

Provides a plate to transfer the shear force to the blocking connection or rim joist from the top plate. The improved nail pattern helps prevent splitting of the wood members for both single/double top plate situations.

These anchors provide the builder with the industry’s most versatile framing anchor including: Bending slots – make accurate bends for all 2 and 3-way anchoring ties on the job.

MATERIALS: 18 ga. galvanized steel. Available in G-185 Triple Zinc or Hot-Dip Galvanized. Call for availability.

CODES: ICC ESR-2556
TFAL, AP45

Framing Anchors

Provides a plate to transfer the shear force to the blocking connection or rim joist from the top plate. The improved nail pattern helps prevent splitting of the wood members for both single/double top plate situations.

These anchors provide the builder with the industry’s most versatile framing anchor including: Bending slots – make accurate bends for all 2 and 3-way anchoring ties on the job.

MATERIALS: 18 ga. galvanized steel. Available in G-185 Triple Zinc or Hot-Dip Galvanized. Call for availability.

CODES: ICC ESR-2556
