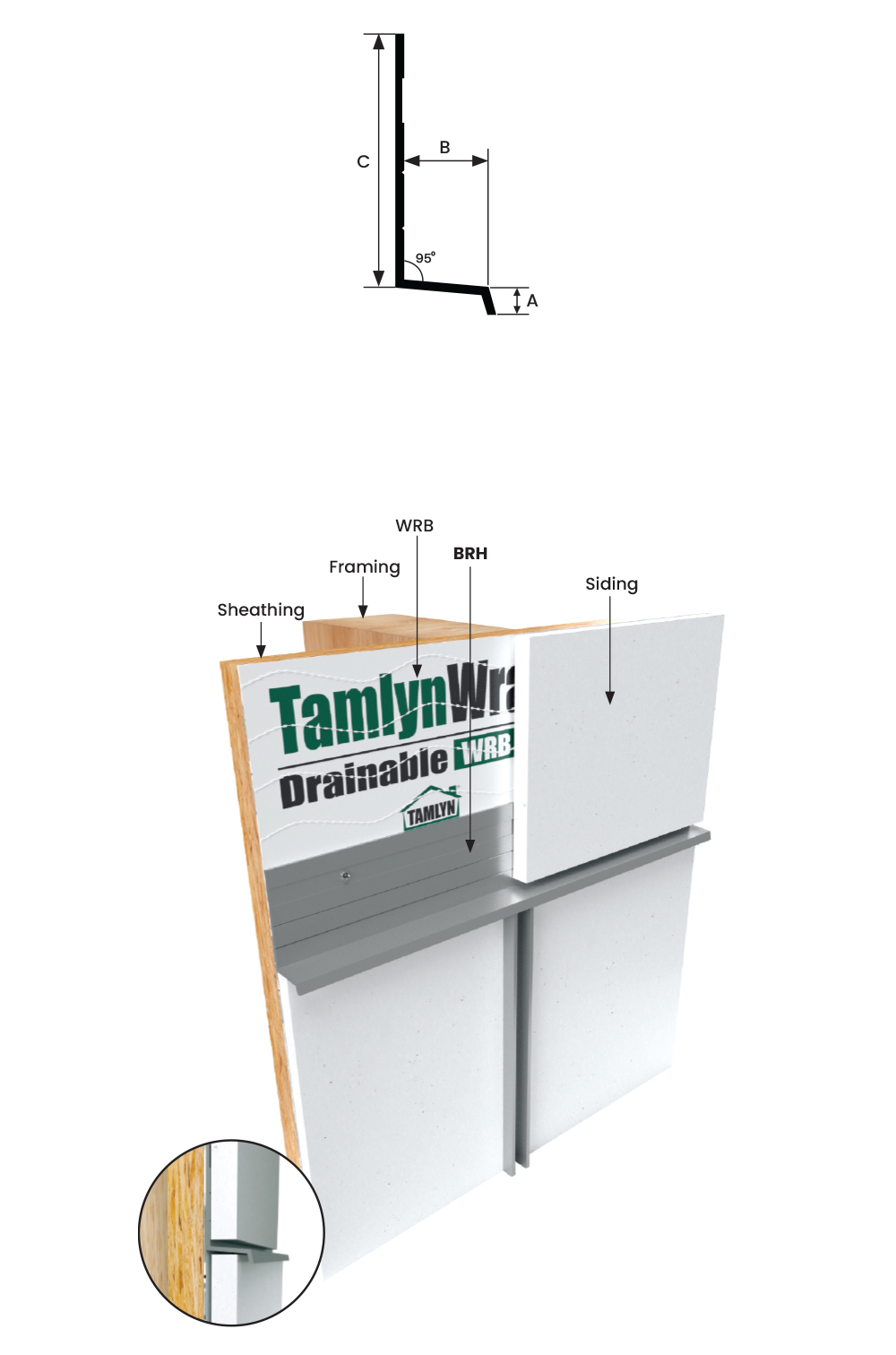

Horizontal Bead Reveal
All measurements are nominal
| ITEM ID | A | B | C |
|---|---|---|---|
| BRH516* | 1/8โ | 3/8โ | 1-1/8โ |
| BRH716 | 1/8โ | 1/2โ | 1-1/8โ |
All parts are 10โ Length unless otherwise indicated
*In Stock in BLACK ANODIZED
MATERIALS:ย 6063-T5 .040″ ยฑ .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.
NOTE:ย Do not install XtremeTrimยฎ Horizontal Bead Reveal on horizontal applications where the exterior flange can catch/hold water.

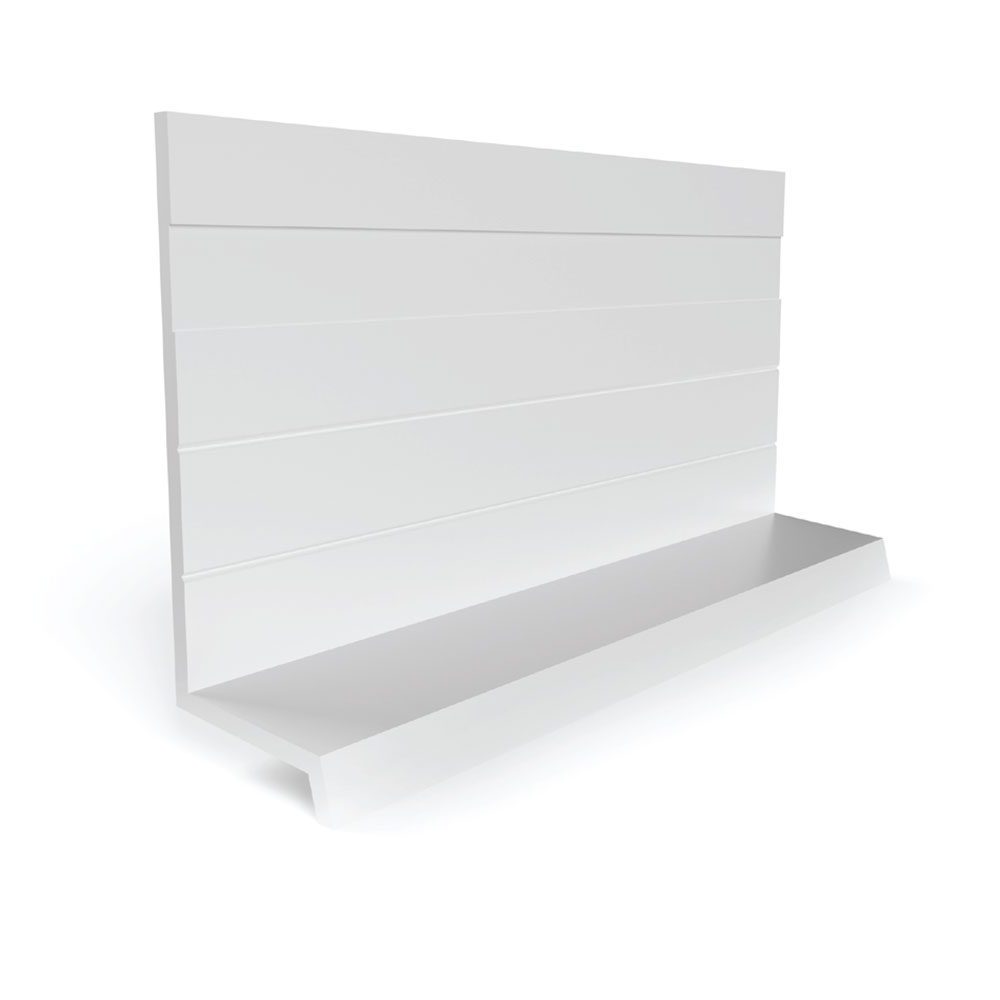

Horizontal Bead Reveal
Designed to work as part of a system with Vertical Bead Reveal. XtremeTrimยฎ Horizontal Bead Reveal provides a minimal exposure while providing protection for the top edge of the lower panel.
MATERIALS:ย 6063-T5 .040″ ยฑ .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.
NOTE:ย Do not install XtremeTrimยฎ Horizontal Bead Reveal on horizontal applications where the exterior flange can catch/hold water.
All measurements are nominal
| ITEM ID | A | B | C |
|---|---|---|---|
| BRH516* | 1/8โ | 3/8โ | 1-1/8โ |
| BRH716 | 1/8โ | 1/2โ | 1-1/8โ |
All parts are 10โ Length unless otherwise indicated
*In Stock in BLACK ANODIZED
