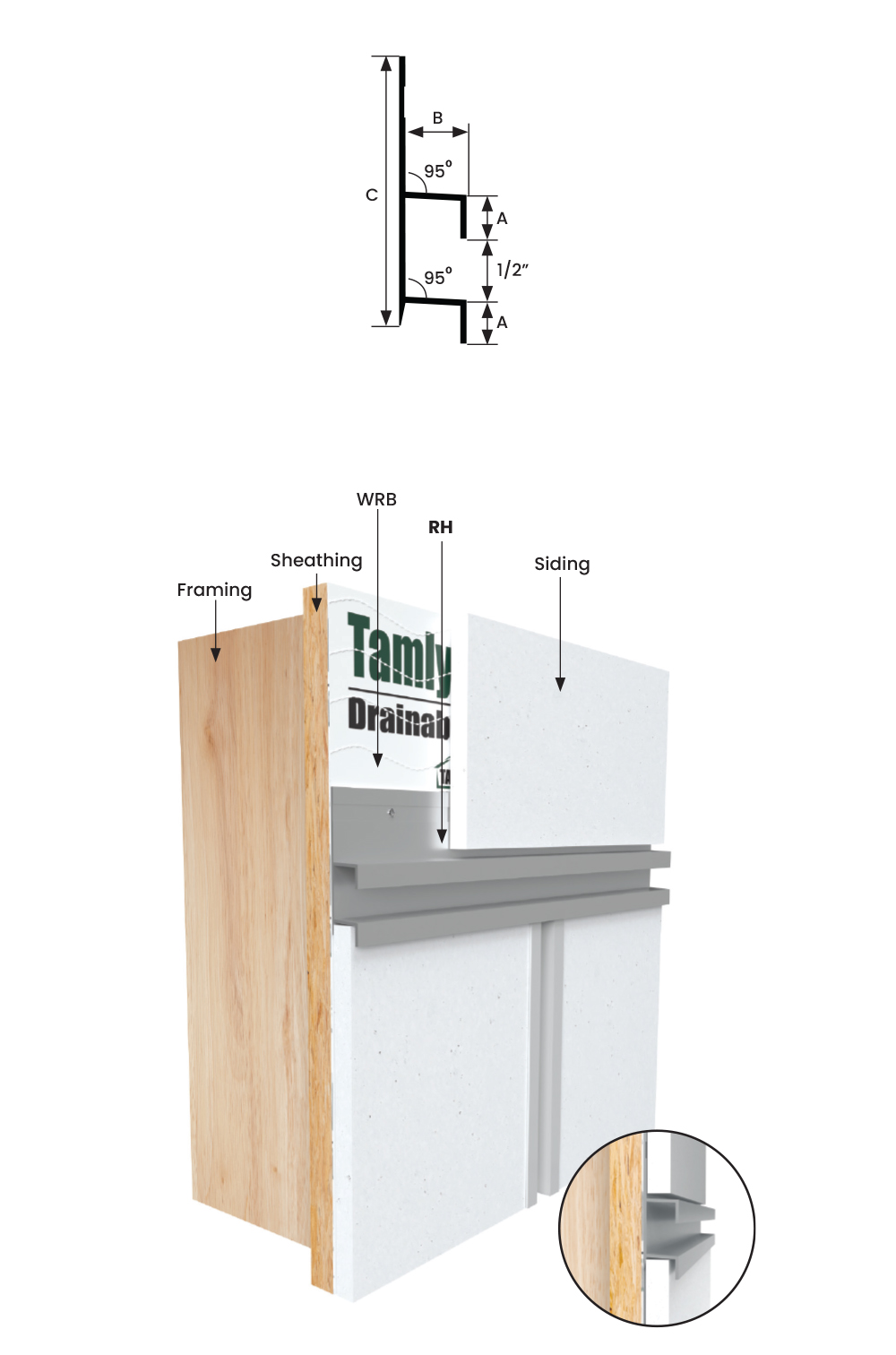

Horizontal Reveal
All measurements are nominal
| ITEM ID | A | B | C |
|---|---|---|---|
| RH516* | 3/8โ | 15/32โ | 2โ |
| RH716 | 3/8โ | 1/2โ | 2โ |
All parts are 10โ Length unless otherwise indicated
*In Stock in BLACK ANODIZED
MATERIALS:ย 6063-T5 .050″ ยฑ .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.
NOTE:ย Do not install XtremeTrimยฎย Double Horizontal Reveal on horizontal applications where the exterior flange can catch water.
Horizontal Reveal

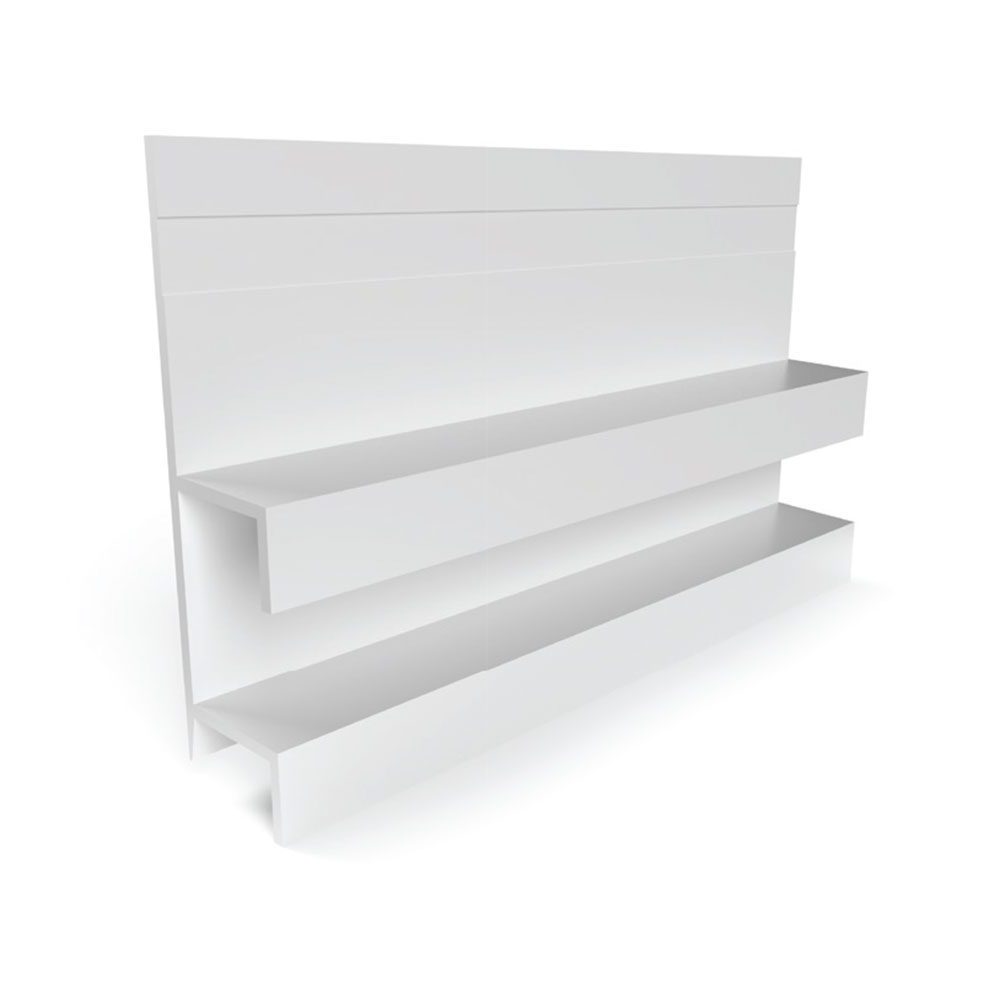

The Horizontal Reveal is a profile that compliments the XtremeTrimยฎ Vertical Reveal. Patented retention leg on back prevents flexing with expansion.
MATERIALS:ย 6063-T5 .050″ ยฑ .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.
NOTE:ย Do not install XtremeTrimยฎย Double Horizontal Reveal on horizontal applications where the exterior flange can catch water.
All measurements are nominal
| ITEM ID | A | B | C |
|---|---|---|---|
| RH516* | 3/8โ | 15/32โ | 2โ |
| RH716 | 3/8โ | 1/2โ | 2โ |
All parts are 10โ Length unless otherwise indicated
*In Stock in BLACK ANODIZED
