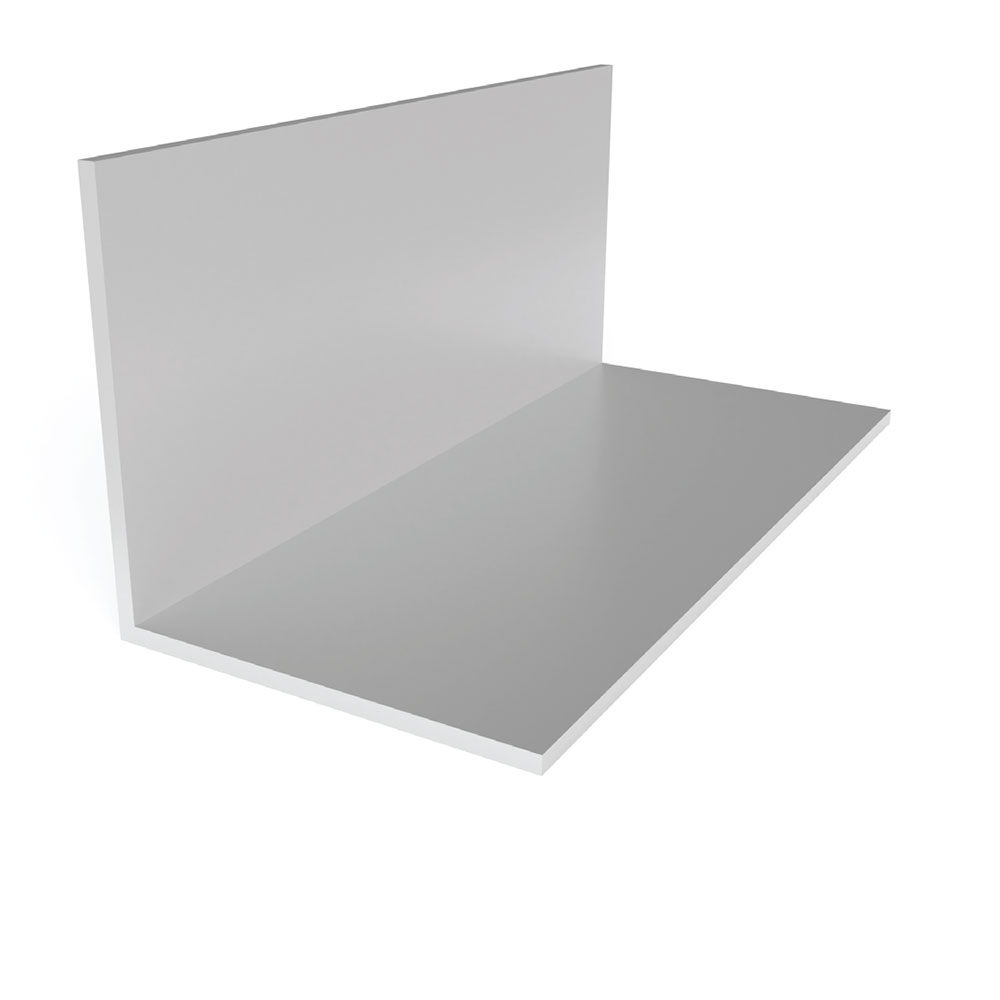

L Transition Trim
All measurements are nominal
| ITEM ID | A | B |
|---|---|---|
| XL12 | 1/2โ | 1/2โ |
| XL34 | 3/4โ | 3/4โ |
| XL1 | 1โ | 1โ |
| XL15 | 1-1/2โ | 1-1/2โ |
All parts are 10โ Length unless otherwise indicated
MATERIALS:ย 6063-T5 .045″ ยฑ .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.
NOTE:ย Do not install XtremeTrimยฎ L Trim on horizontal applications where the exterior flange can catch/hold water.
L Transition Trim

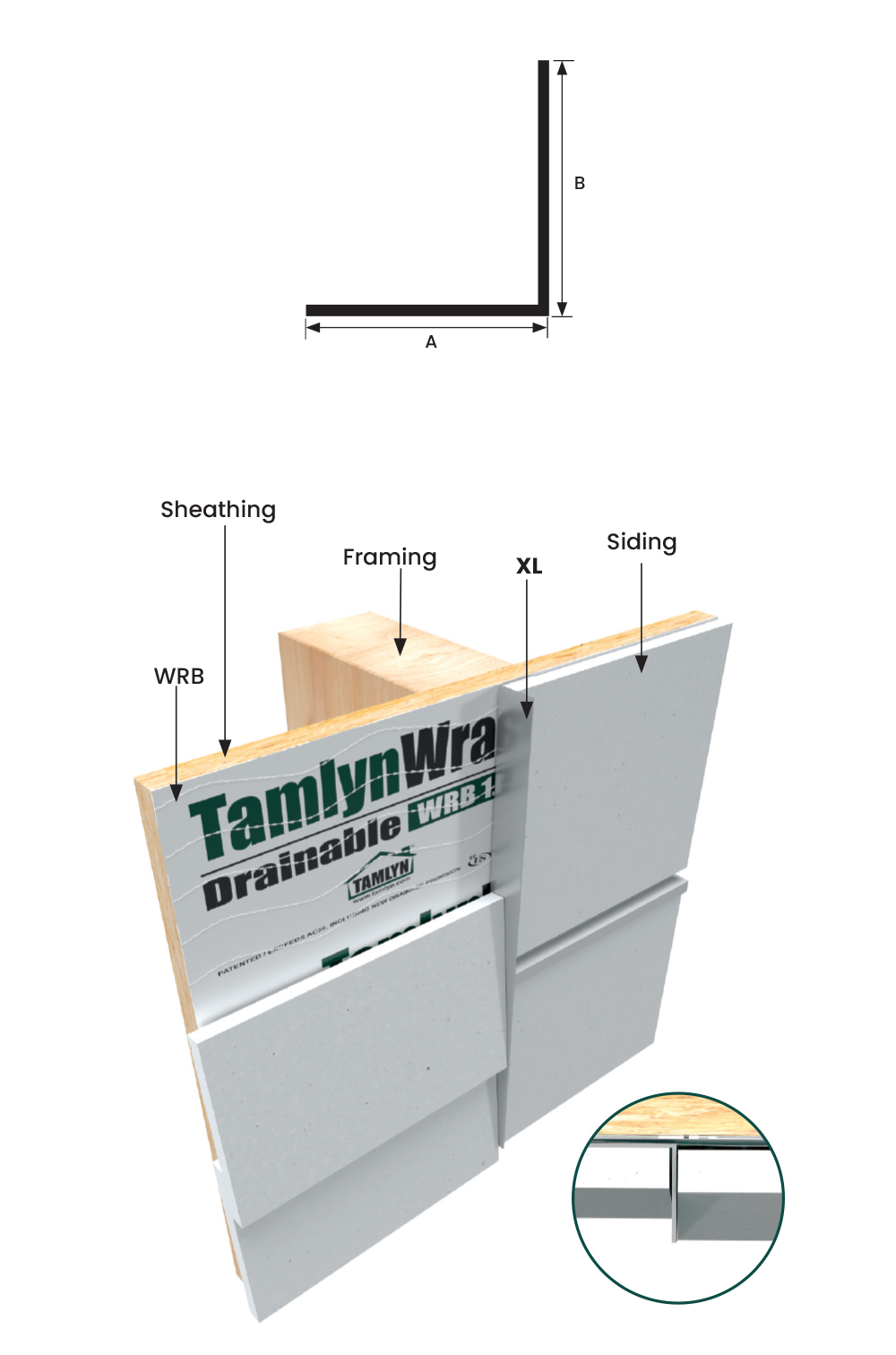

Simple angle trim that can be adaptively used for multiple applications such as transition from panel to siding. Can also be used for facade/soffit transition and as an abutted stop alongside windows and doors.
MATERIALS:ย 6063-T5 .045″ ยฑ .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.
NOTE:ย Do not install XtremeTrimยฎ L Trim on horizontal applications where the exterior flange can catch/hold water.
All measurements are nominal
| ITEM ID | A | B |
|---|---|---|
| XL12 | 1/2โ | 1/2โ |
| XL34 | 3/4โ | 3/4โ |
| XL1 | 1โ | 1โ |
| XL15 | 1-1/2โ | 1-1/2โ |
All parts are 10โ Length unless otherwise indicated
