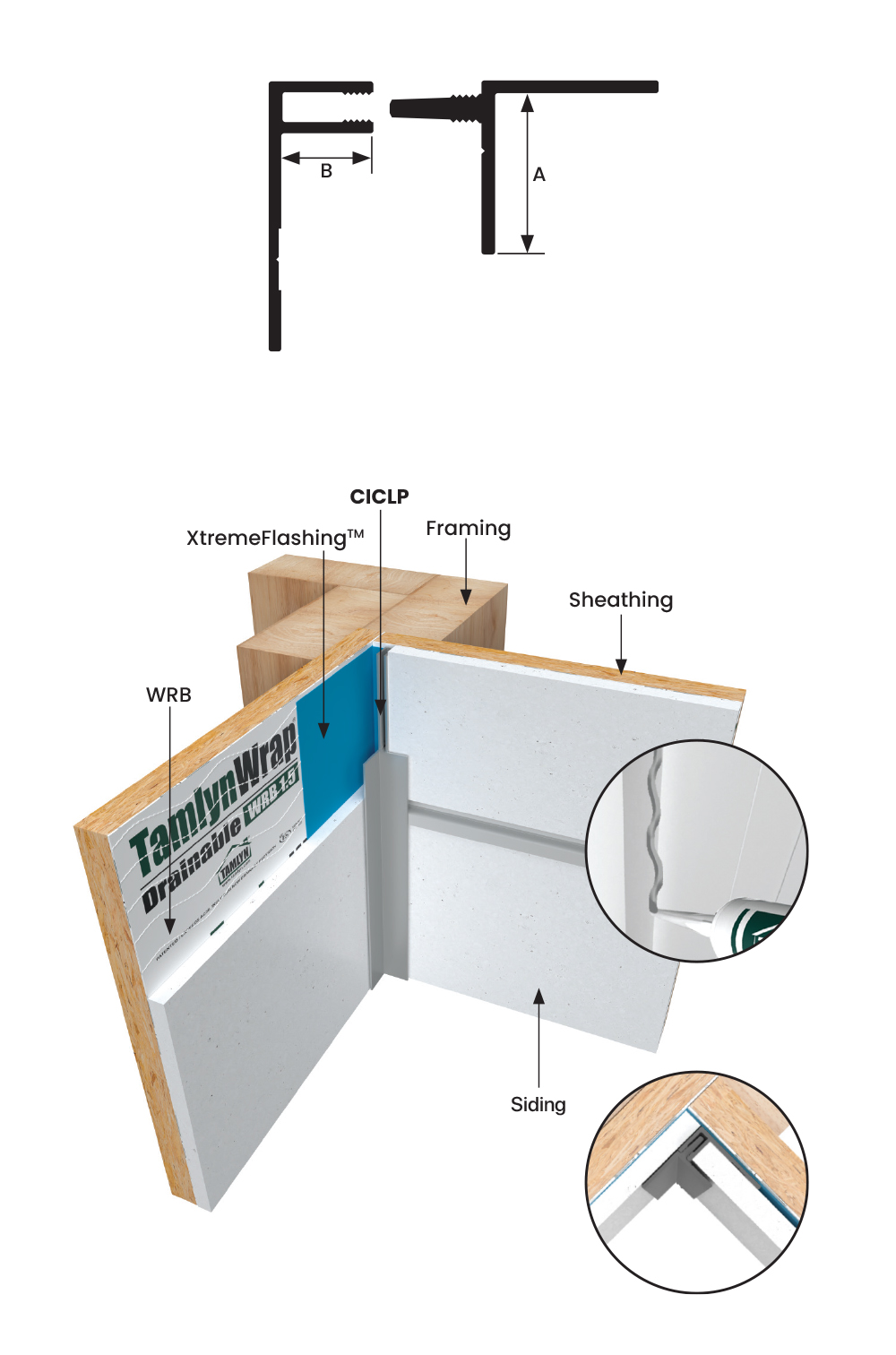

Low Profile Inside Corner
All measurements are nominal
| ITEM ID | A | B |
|---|---|---|
| CICLP516 | 5/8” | 3/8” |
All parts are 10’ Length unless otherwise indicated

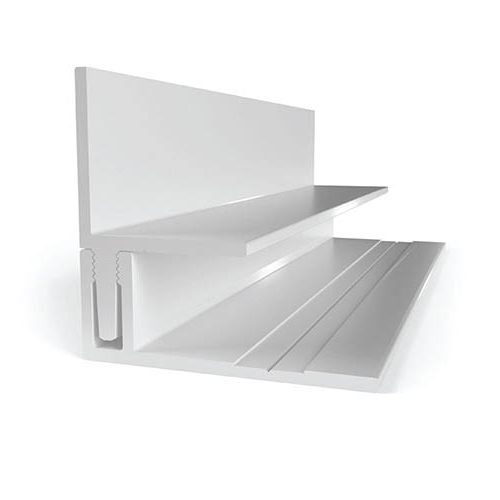

Low Profile Inside Corner
Minimal face produces a clean, pleasing, durable inside corner for siding panels. The two-piece design permits application of the base part first and then installation of the cover cap at a later time. In tight fit situations this may be more convenient than using the standard inside corner. However, due to the natural expansion and contraction of aluminum, all two piece caps must be secured by adhesive.
Recommended adhesive needs to meet these requirements:
Tensile Strength ASTM D412 – 475 psi
Lap Shear Strength – ASTM D1002 – 550 psi
MATERIALS: 6063-T5 .045″ ± .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.
All measurements are nominal
| ITEM ID | A | B |
|---|---|---|
| CICLP516 | 5/8” | 3/8” |
All parts are 10’ Length unless otherwise indicated
