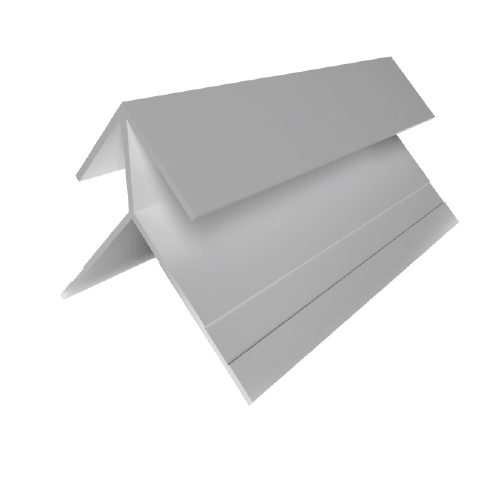

Low Profile Outside Corner
All measurements are nominal
| ITEM ID | A | B |
|---|---|---|
| XOCLP516* | 3/4โ | 3/8โ |
| XOCLP716 | 1โ | 7/16โ |
| XOCLP58* | 1-1/8โ | 5/8โ |
| XOCLP34* | 1-1/2โ | 3/4โ |
| XOCLP1 | 1-1/2โ | 1โ |
| XOCLP114 | 1-3/4โ | 1-1/4โ |
All parts are 10โ Length unless otherwise indicated
*In Stock in BLACK ANODIZED
MATERIALS:ย 6063-T5 .050″ ยฑ .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.
NOTE:ย Do not install XtremeTrimยฎ Low Profile Outside Corner on horizontal applications where the exterior flange can catch/hold water.
Low Profile Outside Corner

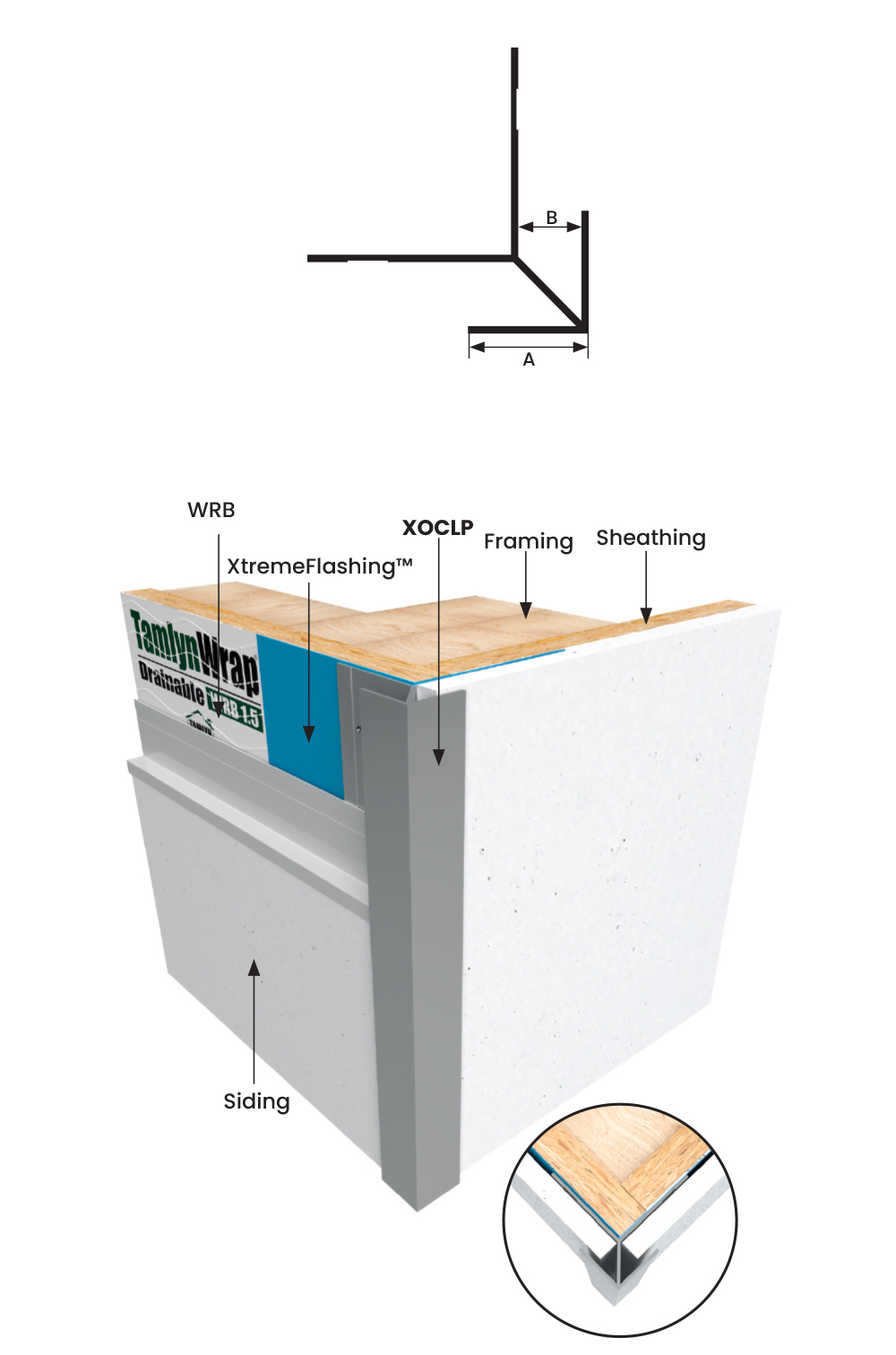

Offers a clean outside corner for various siding materials. Works well with all vertical options.
MATERIALS:ย 6063-T5 .050″ ยฑ .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.
NOTE:ย Do not install XtremeTrimยฎ Low Profile Outside Corner on horizontal applications where the exterior flange can catch/hold water.
All measurements are nominal
| ITEM ID | A | B |
|---|---|---|
| XOCLP516* | 3/4โ | 3/8โ |
| XOCLP716 | 1โ | 7/16โ |
| XOCLP58* | 1-1/8โ | 5/8โ |
| XOCLP34* | 1-1/2โ | 3/4โ |
| XOCLP1 | 1-1/2โ | 1โ |
| XOCLP114 | 1-3/4โ | 1-1/4โ |
All parts are 10โ Length unless otherwise indicated
*In Stock in BLACK ANODIZED
