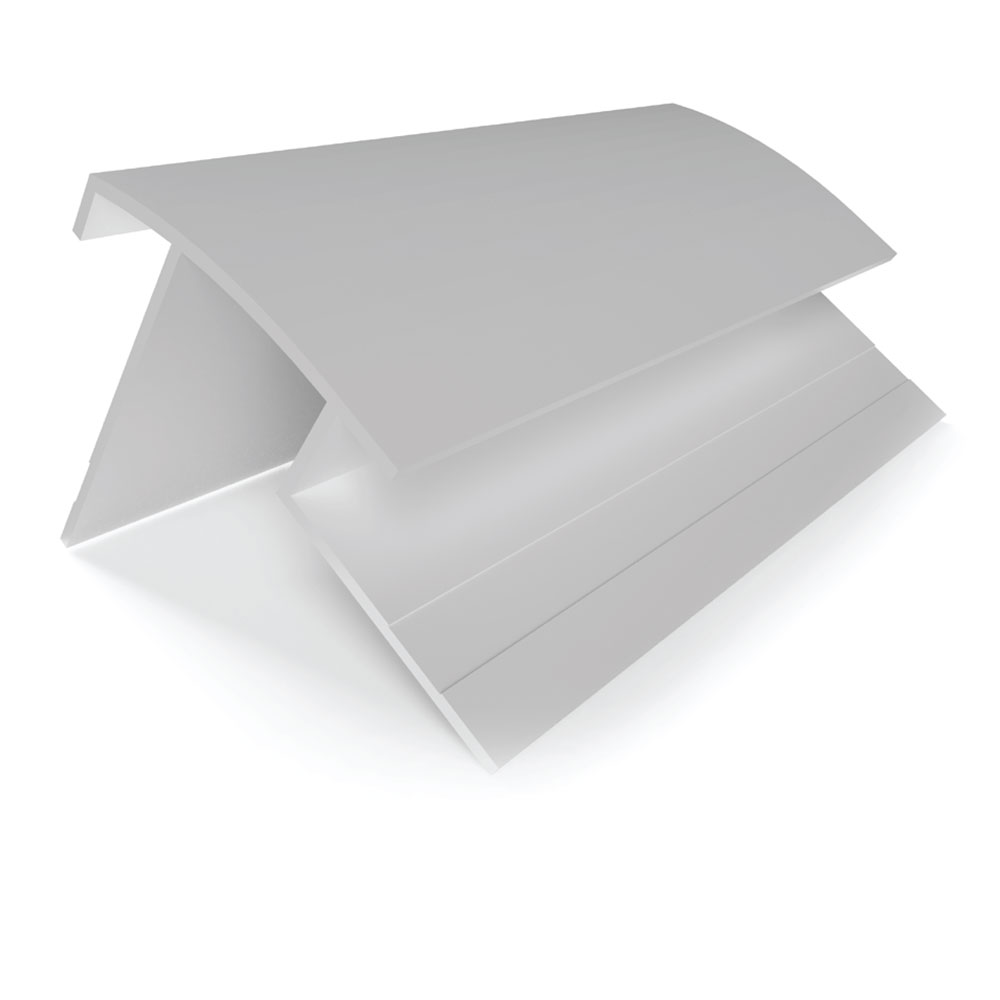

Panel Asymmetrical Tapered

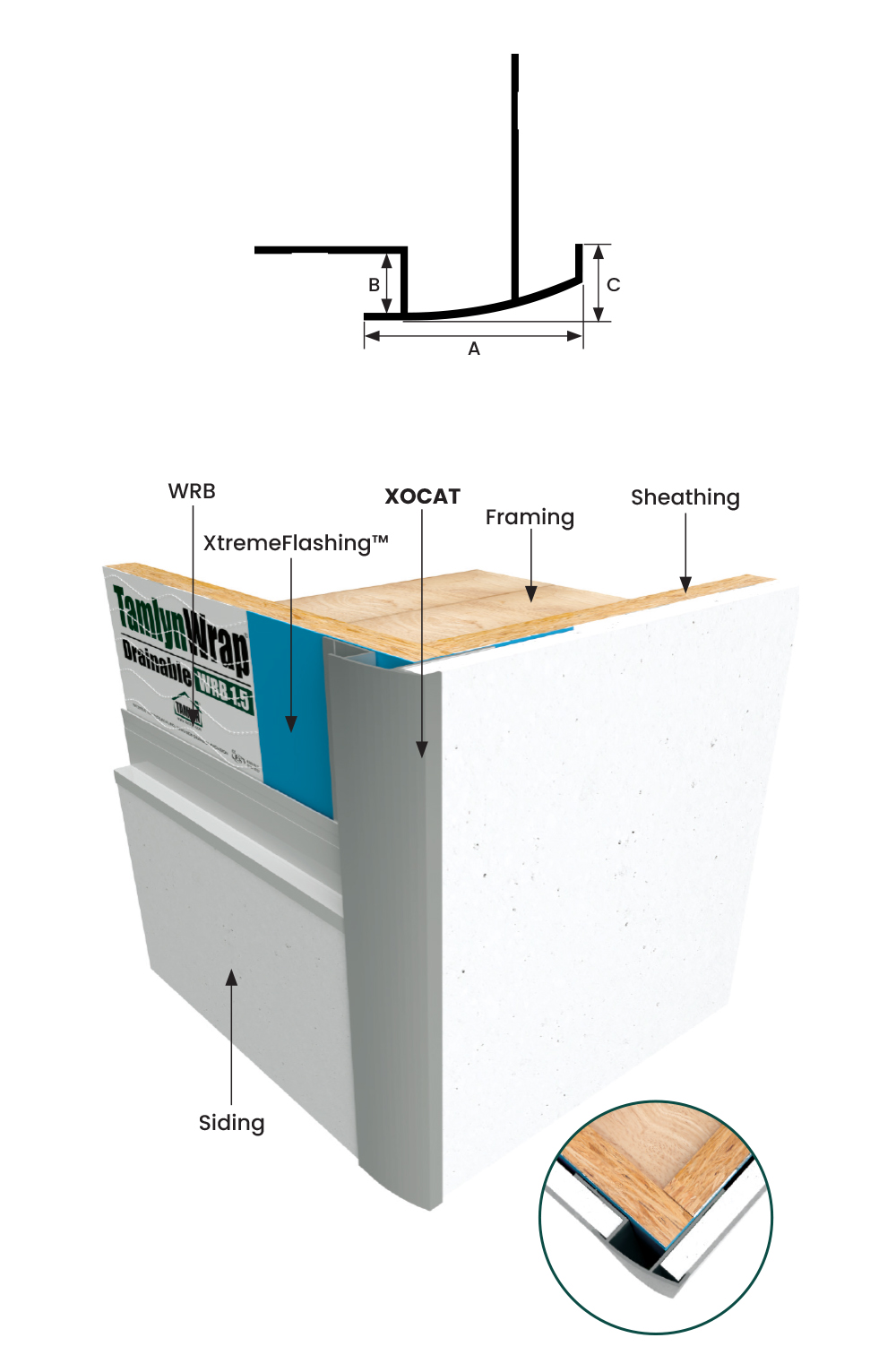

All measurements are nominal
| ITEM ID | A | B | C |
|---|---|---|---|
| XOCAT516 | 1-1/2โ | 3/8โ | 1/2โ |
All parts are 10โ Length unless otherwise indicated
Unique asymmetrical corner which offers a 3:1 exposure and a subtle taper.
MATERIALS:ย 6063-T5 .050″ ยฑ .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.
NOTE:ย Do not install XtremeTrimยฎ Panel Asymmetrical Tapered Outside Corner on horizontal applications where the exterior flange can catch/hold water.
Panel Asymmetrical Tapered
PATENT PENDING
Unique asymmetrical corner which offers a 3:1 exposure and a subtle taper.
MATERIALS:ย 6063-T5 .050″ ยฑ .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.
NOTE:ย Do not install XtremeTrimยฎ Panel Asymmetrical Tapered Outside Corner on horizontal applications where the exterior flange can catch/hold water.
All measurements are nominal
| ITEM ID | A | B | C |
|---|---|---|---|
| XOCAT516 | 1-1/2โ | 3/8โ | 1/2โ |
All parts are 10โ Length unless otherwise indicated
