Perforated Horizontal Reveal
All measurements are nominal

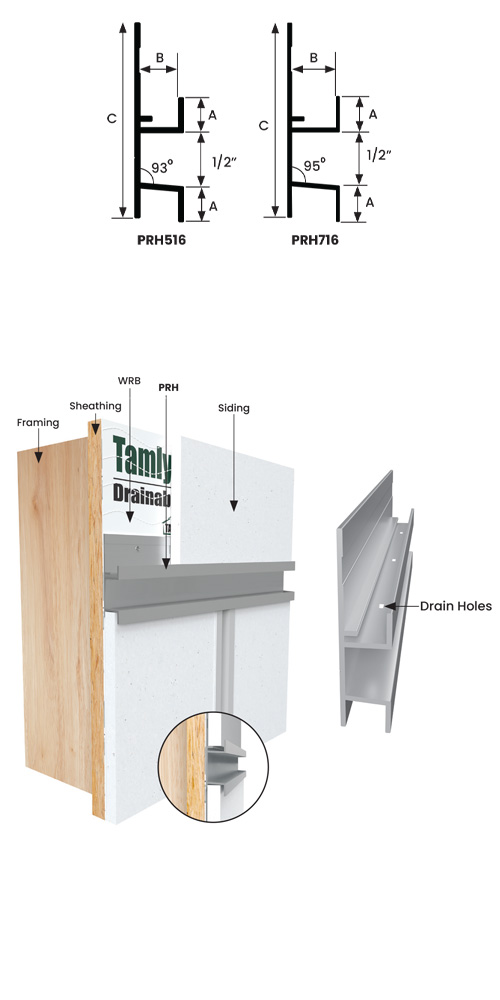

| ITEM ID | A | B | C |
|---|---|---|---|
| PRH516 | 3/8โ | 3/8โ | 2โ |
| PRH716 | 3/8โ | 1/2โ | 2โ |
Perforated Horizontal Reveal

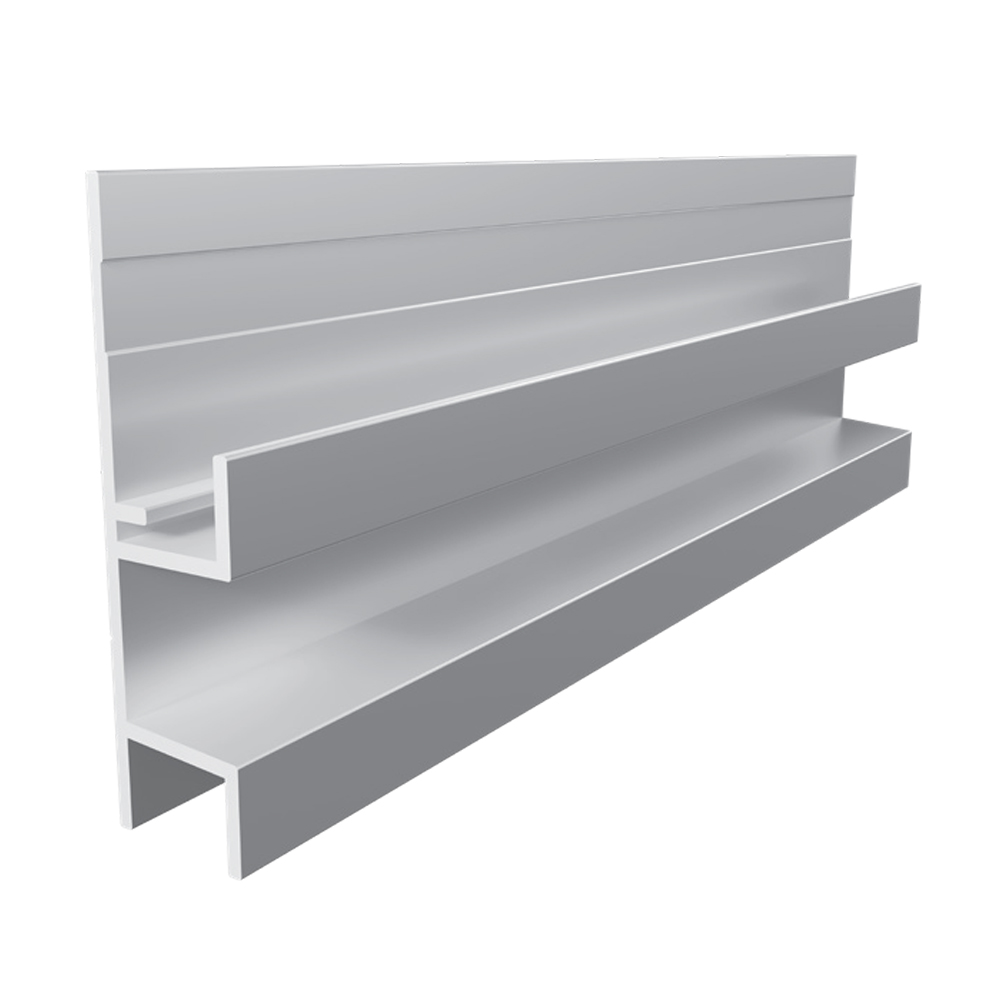

The Perforated Horizontal Reveal is a profile that complements the XtremeTrimยฎ Vertical Reveal. Patent pending retention leg on back prevents flexing with expansion.
MATERIALS:ย 6063-T5 .040″ ยฑ .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.
NOTE:ย Do not install XtremeTrimยฎ Perforated Horizontal Reveal upside down on horizontal applications where the exterior flange can catch/hold water.
All measurements are nominal
| ITEM ID | A | B | C |
|---|---|---|---|
| PRH516 | 3/8โ | 3/8โ | 2โ |
| PRH716 | 3/8โ | 1/2โ | 2โ |
