Post Caps
MATERIALS: 20ga. galvanized steel.
CODES: ICC ESR-1347

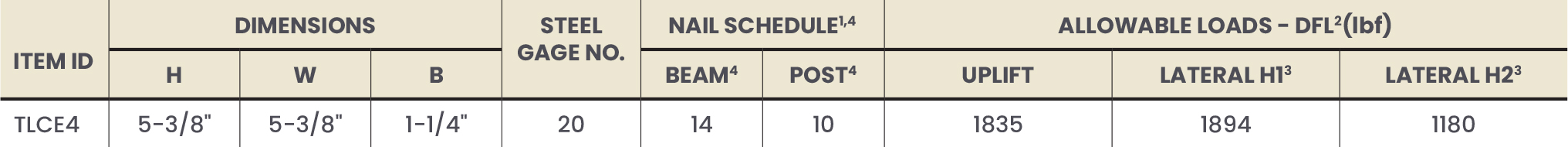

NOTES:
1. Nails are 16d by 3-1/2 inch common nails.
2. Allowable loads are for hangers nailed into wood or structural composite lumber having an effective specific gravity of 0.50 (such as Douglas Fir Larch) or greater.
3. Allowable gravity (bearing) loads have been adjusted by load duration factors, CD, of 1.6 (160%) corresponding to the typical durations of occupancy live loads, snow loads and construction loads, respectively.
Post Caps

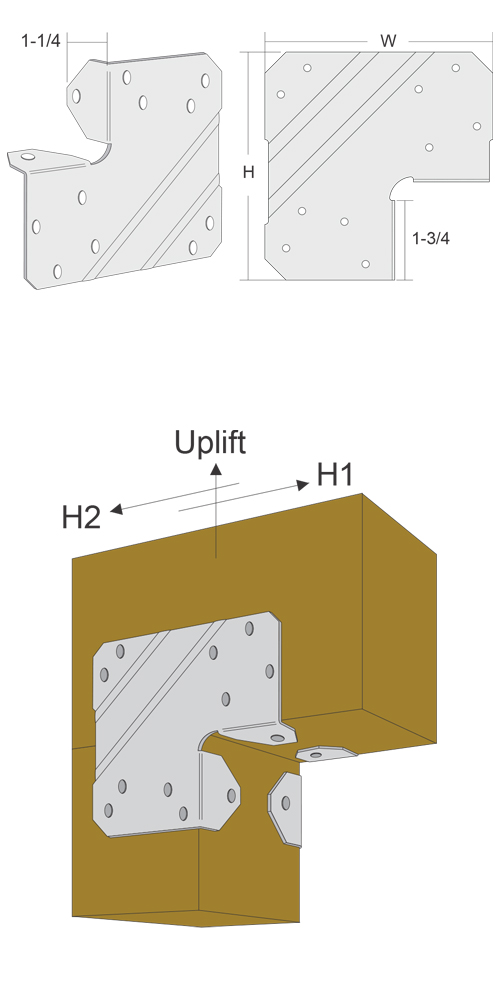

Designed to connect wood post and beam members. Can be installed on a left or right. For use with 4x or 6x post.
MATERIALS: 20ga. galvanized steel.
CODES: ICC ESR-1347
NOTES:
1. Nails are 16d by 3-1/2 inch common nails.
2. Allowable loads are for hangers nailed into wood or structural composite lumber having an effective specific gravity of 0.50 (such as Douglas Fir Larch) or greater.
3. Allowable gravity (bearing) loads have been adjusted by load duration factors, CD, of 1.6 (160%) corresponding to the typical durations of occupancy live loads, snow loads and construction loads, respectively.
