RV

Reveal

ITEM IDAB
RV-141/4โ€1/4โ€
RV5-121/2"1/2"
RV5-1001"1/2"
RV5-2002"1/2"

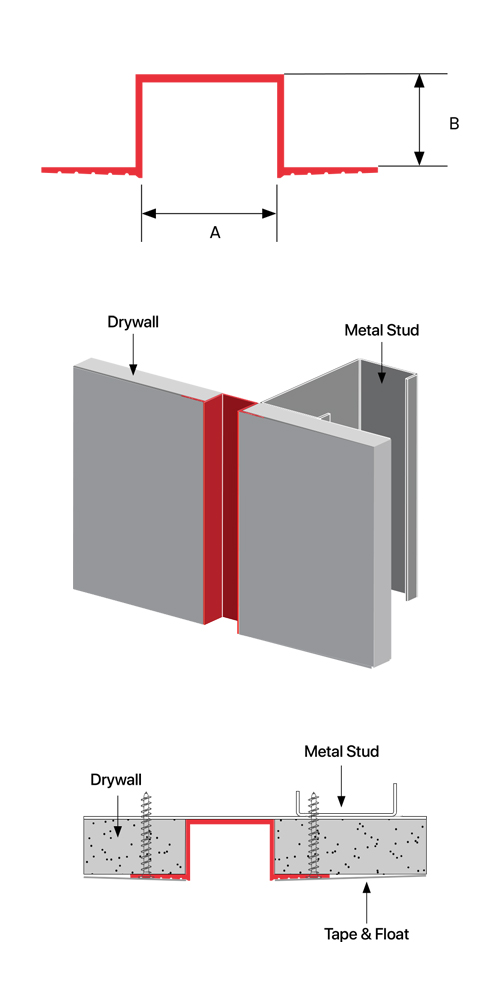

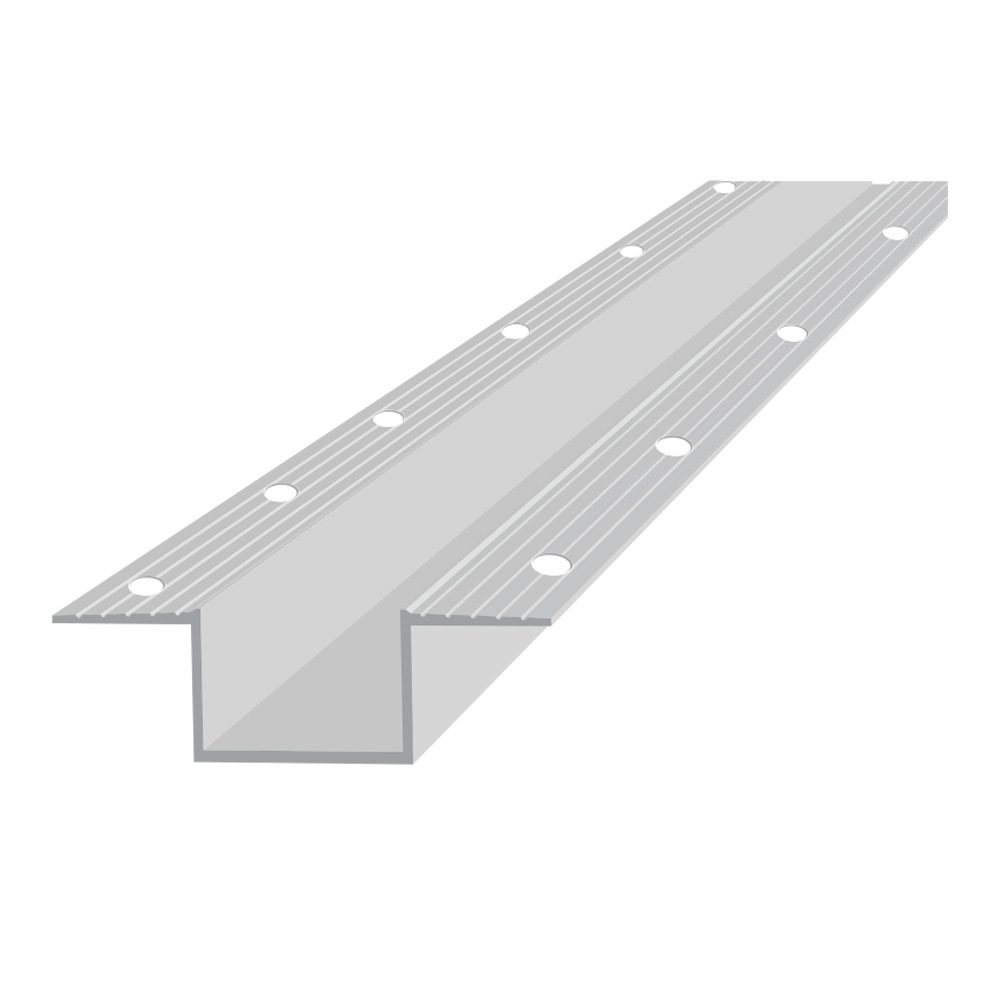

Creates a minimalist shadow line with simple reveal space that allows installation vertically, horizontally or diagonally. Can be used in conjunction with 5/8โ€ drywall, panel installation and wrapped surface finishes such as fabric or vinyl wall coverings. Ridged faces for tape & float and pre-punched holes for easy install (hole placement may vary).

Available in 10โ€™ length. 6063 T5 aluminum with standard clear anodized or primed finish. Anodized color and powder coating finishes available with custom color matching.
RV

Reveal

Creates a minimalist shadow line with simple reveal space that allows installation vertically, horizontally or diagonally. Can be used in conjunction with 5/8โ€ drywall, panel installation and wrapped surface finishes such as fabric or vinyl wall coverings. Ridged faces for tape & float and pre-punched holes for easy install (hole placement may vary).

Available in 10โ€™ length. 6063 T5 aluminum with standard clear anodized or primed finish. Anodized color and powder coating finishes available with custom color matching.

ITEM IDAB
RV-141/4โ€1/4โ€
RV5-121/2"1/2"
RV5-1001"1/2"
RV5-2002"1/2"
