Reveal Double Flange

ITEM ID | A |
---|---|
RVDF-12 | 1/2” |
RVDF-100 | 1” |
RVDF-200 | 2” |

Available in 10’ length. 6063 T5 aluminum with standard clear anodized or primed finish. Anodized color and powder coating finishes available with custom color matching.
Reveal Double Flange

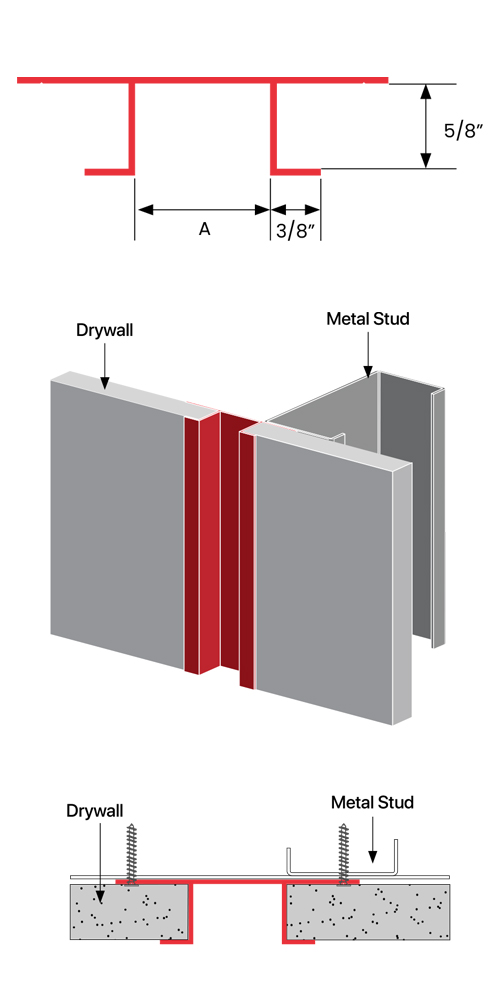

Creates a sleek shadow line with simple reveal space and double flange arms. Can be installed vertically, horizontally or diagonally. Used in conjunction with 5/8” drywall, panel installation and wrapped surface finishes such as fabric or vinyl wall coverings. Ridged faces for tape & float.
Available in 10’ length. 6063 T5 aluminum with standard clear anodized or primed finish. Anodized color and powder coating finishes available with custom color matching.

ITEM ID | A |
---|---|
RVDF-12 | 1/2” |
RVDF-100 | 1” |
RVDF-200 | 2” |
