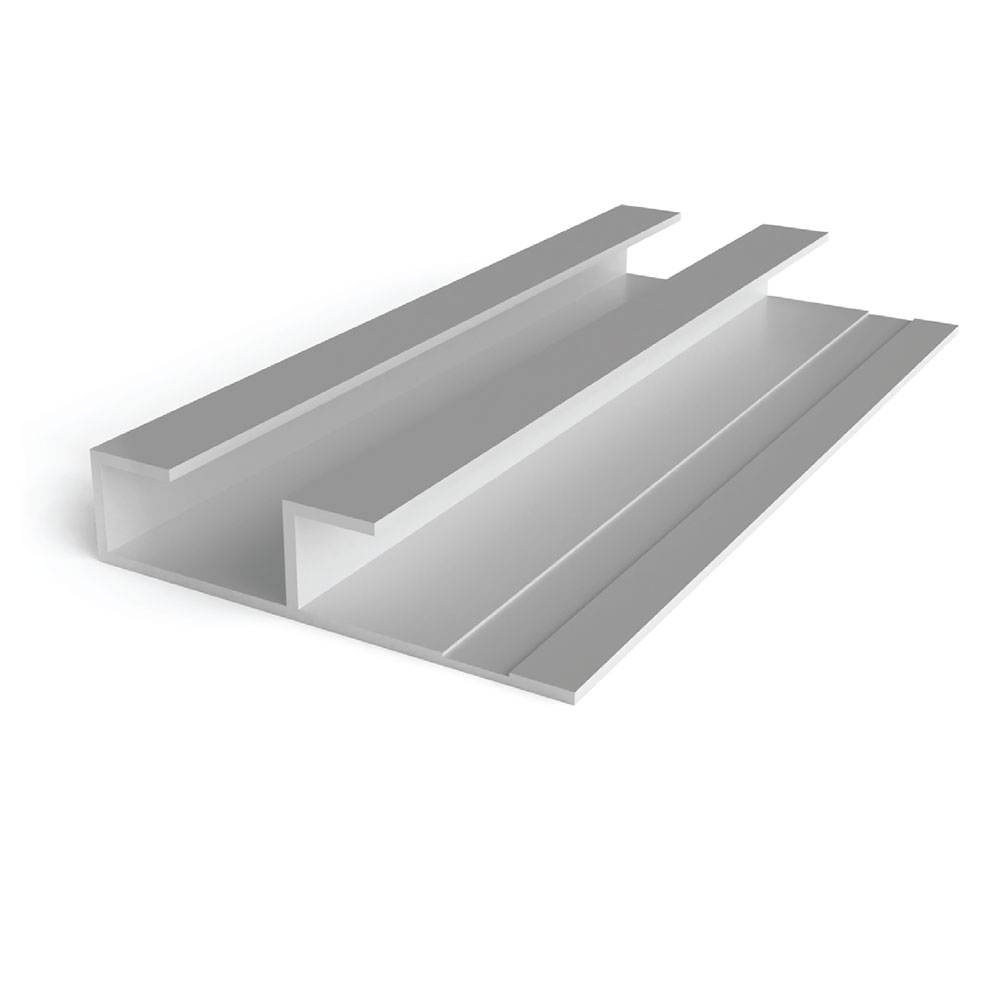

Reveal J-Mold
All measurements are nominal

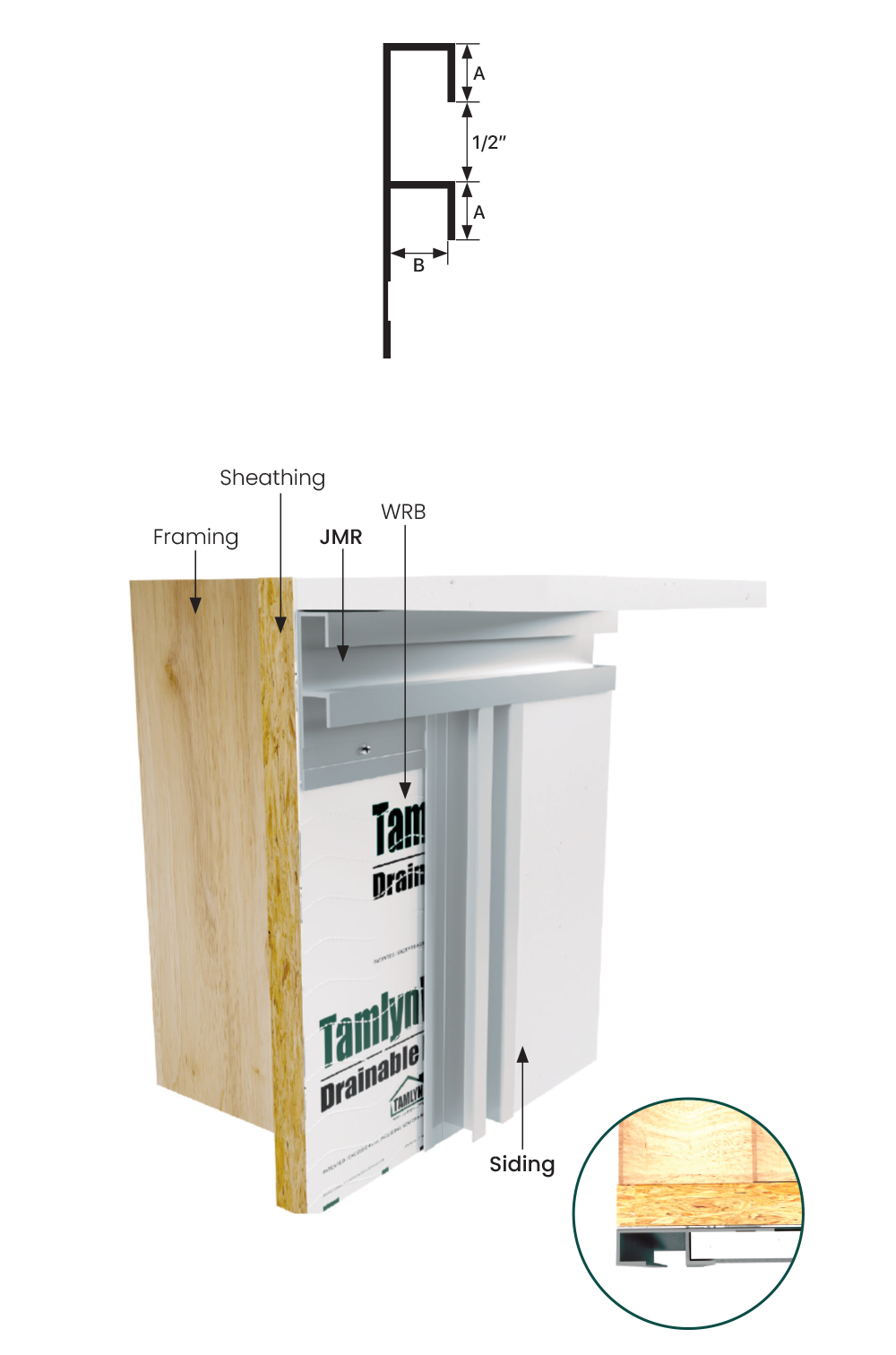

| ITEM ID | A | B |
|---|---|---|
| JMR516 | 3/8” | 3/8” |
All parts are 10’ Length unless otherwise indicated
MATERIALS: 6063-T5 .050″ ± .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.
NOTE: Do not install XtremeTrim® Reveal J Mold on horizontal applications where the exterior flange can catch/hold water.
Reveal J-Mold
This is a highly versatile mold that works in complement with RV and RH profiles to continue the double bar look at multiple locations on a wall.
MATERIALS: 6063-T5 .050″ ± .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.
NOTE: Do not install XtremeTrim® Reveal J Mold on horizontal applications where the exterior flange can catch/hold water.
All measurements are nominal
| ITEM ID | A | B |
|---|---|---|
| JMR516 | 3/8” | 3/8” |
All parts are 10’ Length unless otherwise indicated
