Reveal Open Outside Corner
All measurements are nominal

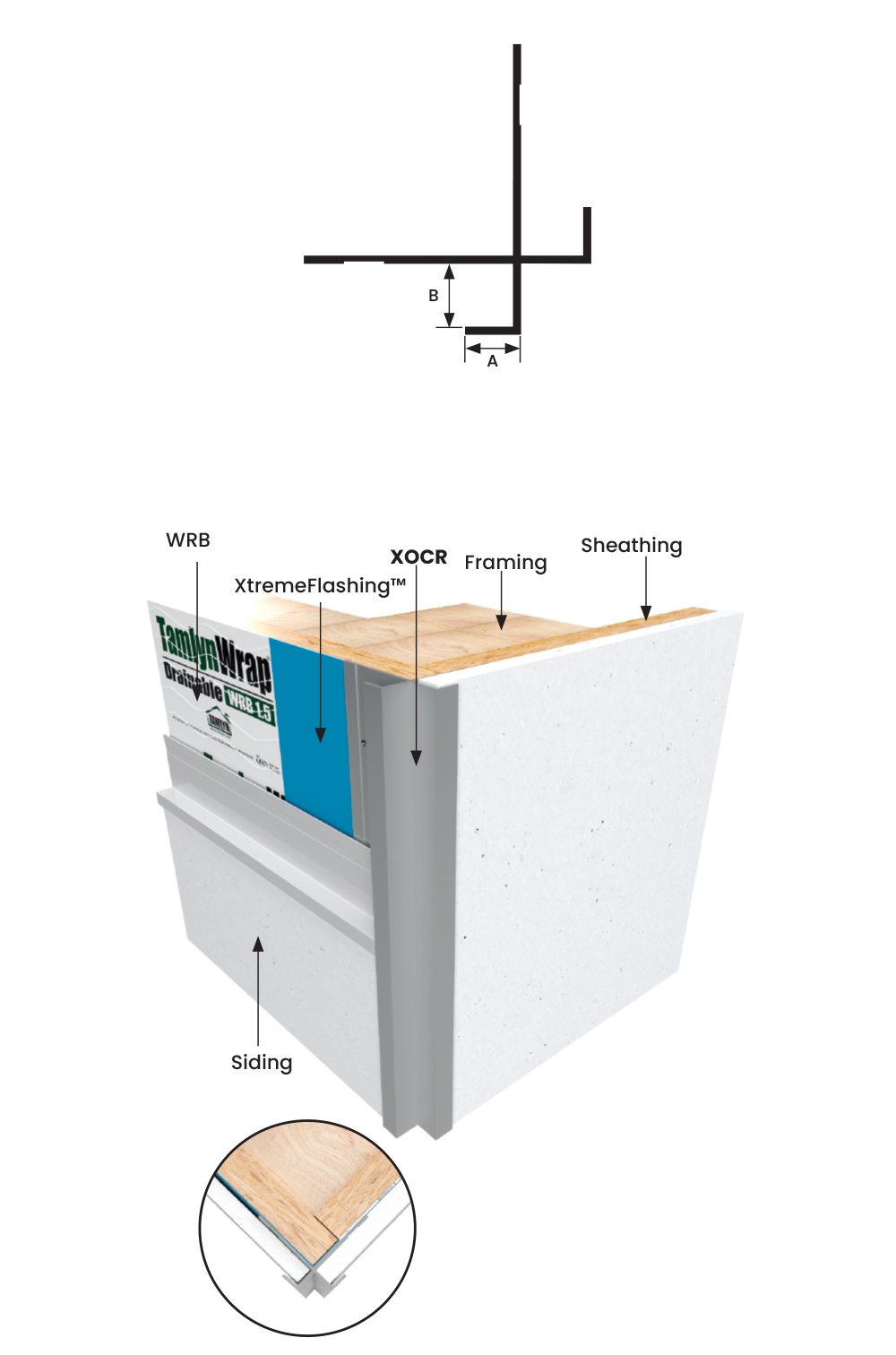

| ITEM ID | A | B |
|---|---|---|
| XOCR516* | 3/8โ | 3/8โ |
| XOCR716 | 3/8โ | 7/16โ |
| XOCR58* | 1/2โ | 5/8โ |
| XOCR34* | 5/8โ | 3/4โ |
| XOCR1 | 3/8โ | 1โ |
| XOCR112 | 3/8โ | 1-1/2โ |
| XOCR114 | 3/4โ | 1-1/4โ |
All parts are 10โ Length unless otherwise indicated
*In Stock in BLACK ANODIZED
MATERIALS:ย 6063-T5 .050″ ยฑ .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.
NOTE:ย Do not install XtremeTrimยฎ Reveal Open Outside Corner on horizontal applications where the exterior flange can catch/hold water.
Reveal Open Outside Corner

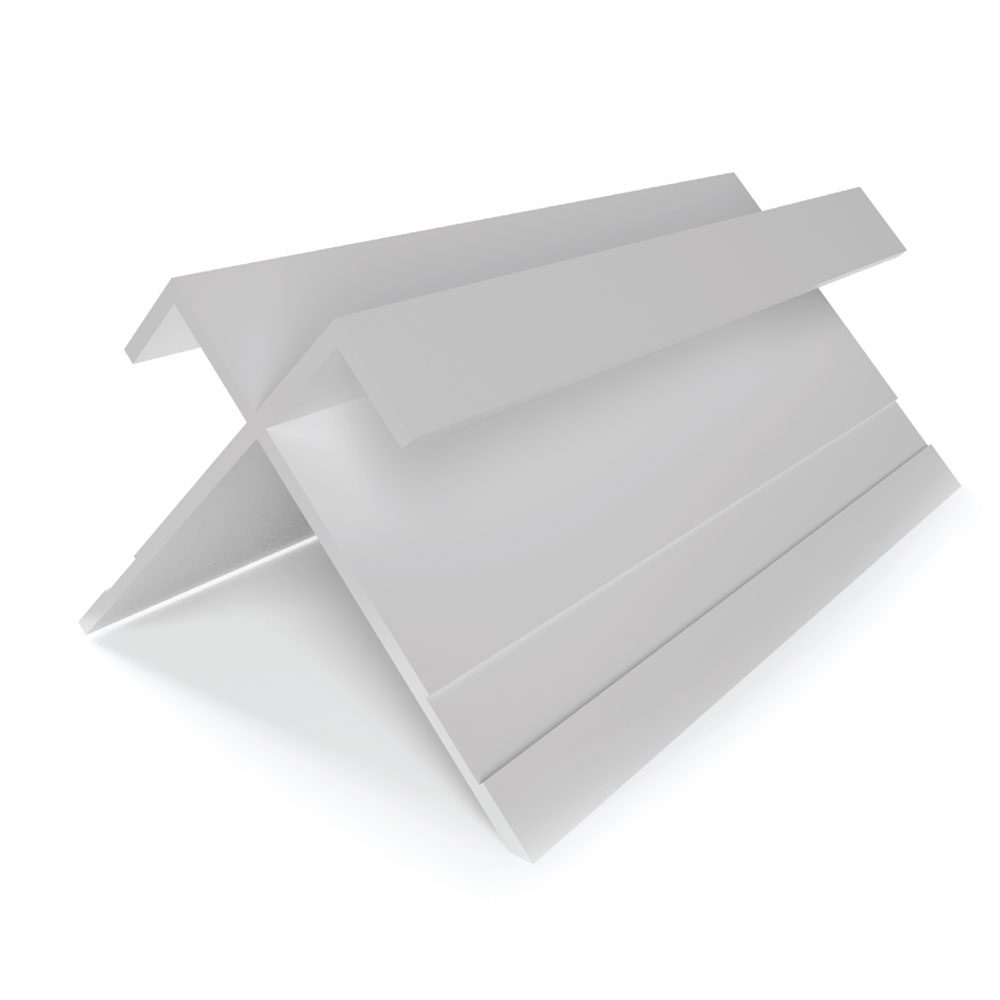

Provides a clean minimal set away open outside corner in an inset style which compliments the Vertical Reveal System.
MATERIALS:ย 6063-T5 .050″ ยฑ .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.
NOTE:ย Do not install XtremeTrimยฎ Reveal Open Outside Corner on horizontal applications where the exterior flange can catch/hold water.
All measurements are nominal
| ITEM ID | A | B |
|---|---|---|
| XOCR516* | 3/8โ | 3/8โ |
| XOCR716 | 3/8โ | 7/16โ |
| XOCR58* | 1/2โ | 5/8โ |
| XOCR34* | 5/8โ | 3/4โ |
| XOCR1 | 3/8โ | 1โ |
| XOCR112 | 3/8โ | 1-1/2โ |
| XOCR114 | 3/4โ | 1-1/4โ |
All parts are 10โ Length unless otherwise indicated
*In Stock in BLACK ANODIZED
