Reveal Outside Corner Minimum Face

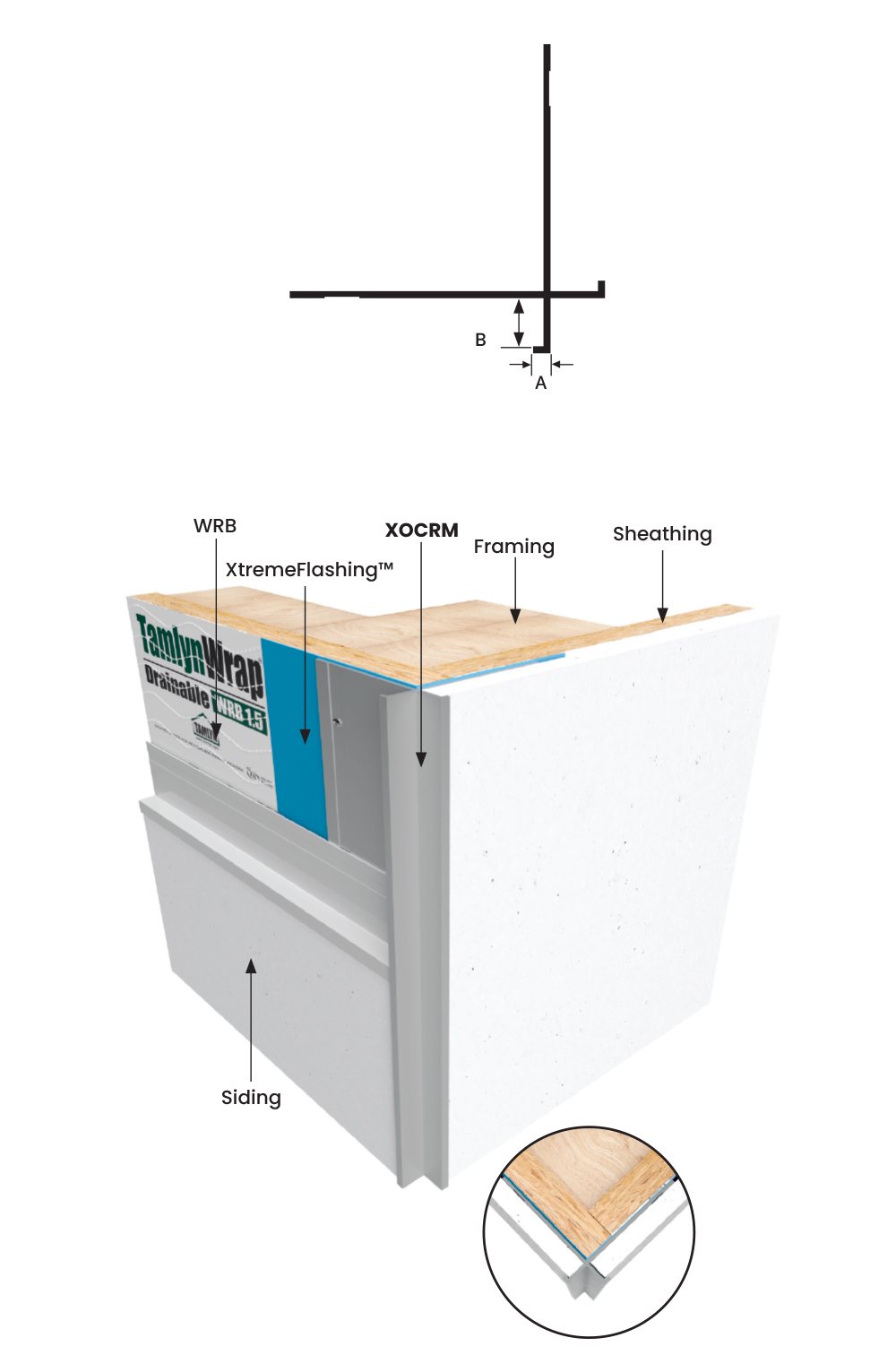

All measurements are nominal
| ITEM ID | A | B |
|---|---|---|
| XOCR516M | 1/8” | 3/8” |
| XOCR716M | 1/8” | 7/16” |
| XOCR34M | 1/8” | 3/4” |
All parts are 10’ Length unless otherwise indicated
MATERIALS: 6063-T5 .050″ ± .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.
NOTE: Do not install XtremeTrim® Reveal Open Outside Corner Minimum Face on horizontal applications where the exterior flange can catch/hold water.
Reveal Outside Corner Minimum Face

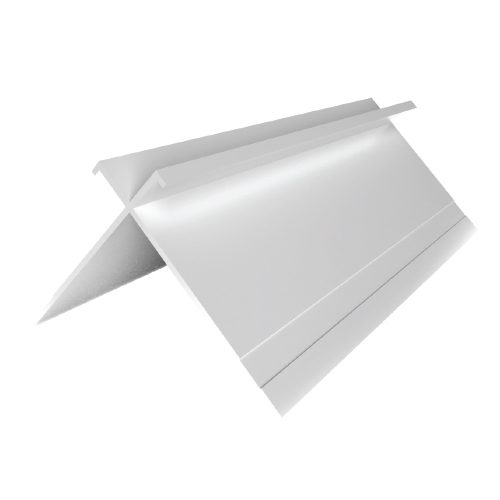

Provides a clean, open outside corner which compliments the Bead or Reveal System with minimal visible face edges. Precise panel fit is required.
MATERIALS: 6063-T5 .050″ ± .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.
NOTE: Do not install XtremeTrim® Reveal Open Outside Corner Minimum Face on horizontal applications where the exterior flange can catch/hold water.
All measurements are nominal
| ITEM ID | A | B |
|---|---|---|
| XOCR516M | 1/8” | 3/8” |
| XOCR716M | 1/8” | 7/16” |
| XOCR34M | 1/8” | 3/4” |
All parts are 10’ Length unless otherwise indicated
