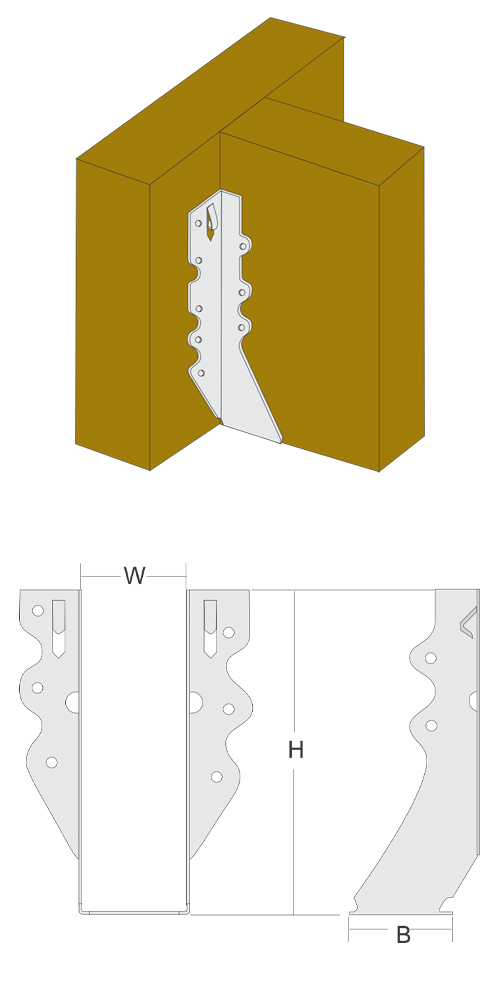

Single Joist Hangers
MATERIALS: 20ga. galvanized steel. Available in G-185 Triple Zinc or Hot-Dip Galvanized. Call for availability.
CODES: FL Approval #8283, ICC ESR-1347

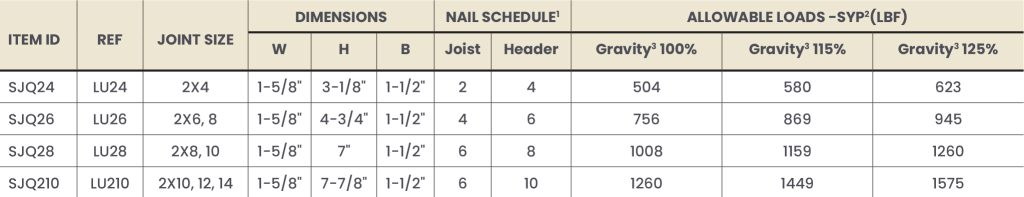

NOTE:
1. Nails are 10d by 1-1/2 inch joist hanger nails.
2. Allowable loads are for hangers nailed into wood or structural composite lumber having an effective specific gravity of 0.55 (such as Southern Pine) or greater.
3. Allowable gravity (bearing) loads have been adjusted by load duration factors, CD, of 1.0 (100%), 1.15 (115%), and 1.25 (125%), corresponding to the typical durations of occupancy live loads, snow loads and construction loads, respectively. No further increases in allowable loads are permitted.
Single Joist Hangers
TAMLYN custom-die designed and manufactured for quick installation and maximum load value.
MATERIALS: 20ga. galvanized steel. Available in G-185 Triple Zinc or Hot-Dip Galvanized. Call for availability.
CODES: FL Approval #8283, ICC ESR-1347
NOTE:
1. Nails are 10d by 1-1/2 inch joist hanger nails.
2. Allowable loads are for hangers nailed into wood or structural composite lumber having an effective specific gravity of 0.55 (such as Southern Pine) or greater.
3. Allowable gravity (bearing) loads have been adjusted by load duration factors, CD, of 1.0 (100%), 1.15 (115%), and 1.25 (125%), corresponding to the typical durations of occupancy live loads, snow loads and construction loads, respectively. No further increases in allowable loads are permitted.
