Snapvent Continuous Soffit Vent

2” SNAPVENT®

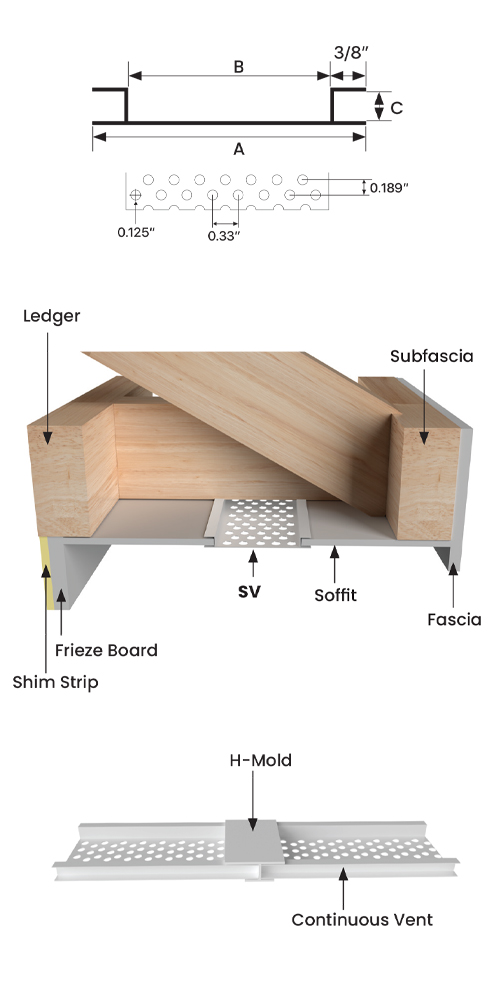

ITEM ID | A | B | C | NFA * |
---|---|---|---|---|
SV148 | 2-7/8” | 2-1/8” | 1/4” | 9 |
SV5168 | 2-7/8” | 2-1/8” | 5/16” | 9 |
SV388 | 2-7/8” | 2-1/8” | 3/8” | 9 |
SV7168 | 2-7/8” | 2-1/8” | 7/16” | 9 |
SV128 | 2-7/8” | 2-1/8” | 1/2” | 9 |
SV348 | 2-7/8” | 2-1/8” | 3/4” | 9 |
3” SNAPVENT®
ITEM ID | A | B | C | NFA * |
---|---|---|---|---|
SV143 | 3-3/4" | 3” | 1/4” | 12.7 |
SV51638 | 3-3/4" | 3” | 5/16” | 12.7 |
SV5838 | 3-3/4" | 3” | 5/8” | 12.7 |
4” SNAPVENT®
ITEM ID | A | B | C | NFA * |
---|---|---|---|---|
SV144 | 5" | 4-1/4" | 1/4" | 18.8 |
SV51648 | 5" | 4-1/4” | 5/16” | 18.8 |
All parts are 8’ Length standard unless otherwise indicated
*NFA =net free area / sq.in.per linear ft.

MATERIALS: Paintable white extruded rigid PVC, industry-standard, durable, chemically resistant product designed for outdoor weatherability.
Snapvent Continuous Soffit Vent
The best looking, most “framer-friendly”, easy to install, effective continuous soffit vent on the market. Unique double leg channels hide edges of soffit material for clean look and help prevent vent from being pulled up into subfascia. Complies with the International Residential Code requiring that ventilation be balanced 50% exhaust / 50% intake
(soffit) in all situations including continuous ridge vents.
MATERIALS: Paintable white extruded rigid PVC, industry-standard, durable, chemically resistant product designed for outdoor weatherability.

2” SNAPVENT®
ITEM ID | A | B | C | NFA * |
---|---|---|---|---|
SV148 | 2-7/8” | 2-1/8” | 1/4” | 9 |
SV5168 | 2-7/8” | 2-1/8” | 5/16” | 9 |
SV388 | 2-7/8” | 2-1/8” | 3/8” | 9 |
SV7168 | 2-7/8” | 2-1/8” | 7/16” | 9 |
SV128 | 2-7/8” | 2-1/8” | 1/2” | 9 |
SV348 | 2-7/8” | 2-1/8” | 3/4” | 9 |
3” SNAPVENT®
ITEM ID | A | B | C | NFA * |
---|---|---|---|---|
SV143 | 3-3/4" | 3” | 1/4” | 12.7 |
SV51638 | 3-3/4" | 3” | 5/16” | 12.7 |
SV5838 | 3-3/4" | 3” | 5/8” | 12.7 |
4” SNAPVENT®
ITEM ID | A | B | C | NFA * |
---|---|---|---|---|
SV144 | 5" | 4-1/4" | 1/4" | 18.8 |
SV51648 | 5" | 4-1/4” | 5/16” | 18.8 |
All parts are 8’ Length standard unless otherwise indicated
*NFA =net free area / sq.in.per linear ft.
