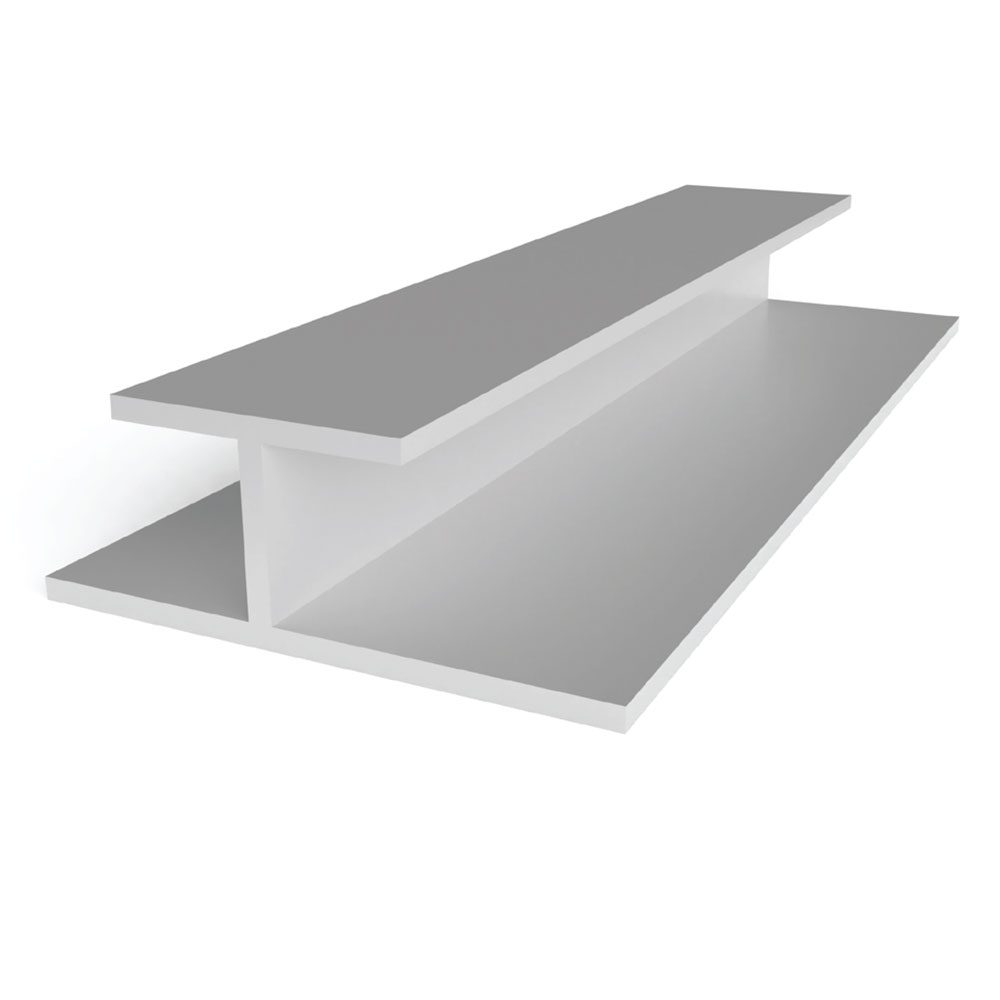

Soffit H-Mold
All measurements are nominal
| ITEM ID | A | B |
|---|---|---|
| XHM148 | 1/2โ | 9/32โ |
| XHM5168 | 1/2โ | 11/32โ |
All parts are 8โ Length unless otherwise indicated
MATERIALS:ย 6063-T5 .045″ ยฑ .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.
NOTE:ย Use of the XtremeTrimยฎย H-Mold at vertical or horizontal siding joints is not recommended.
Soffit H-Mold

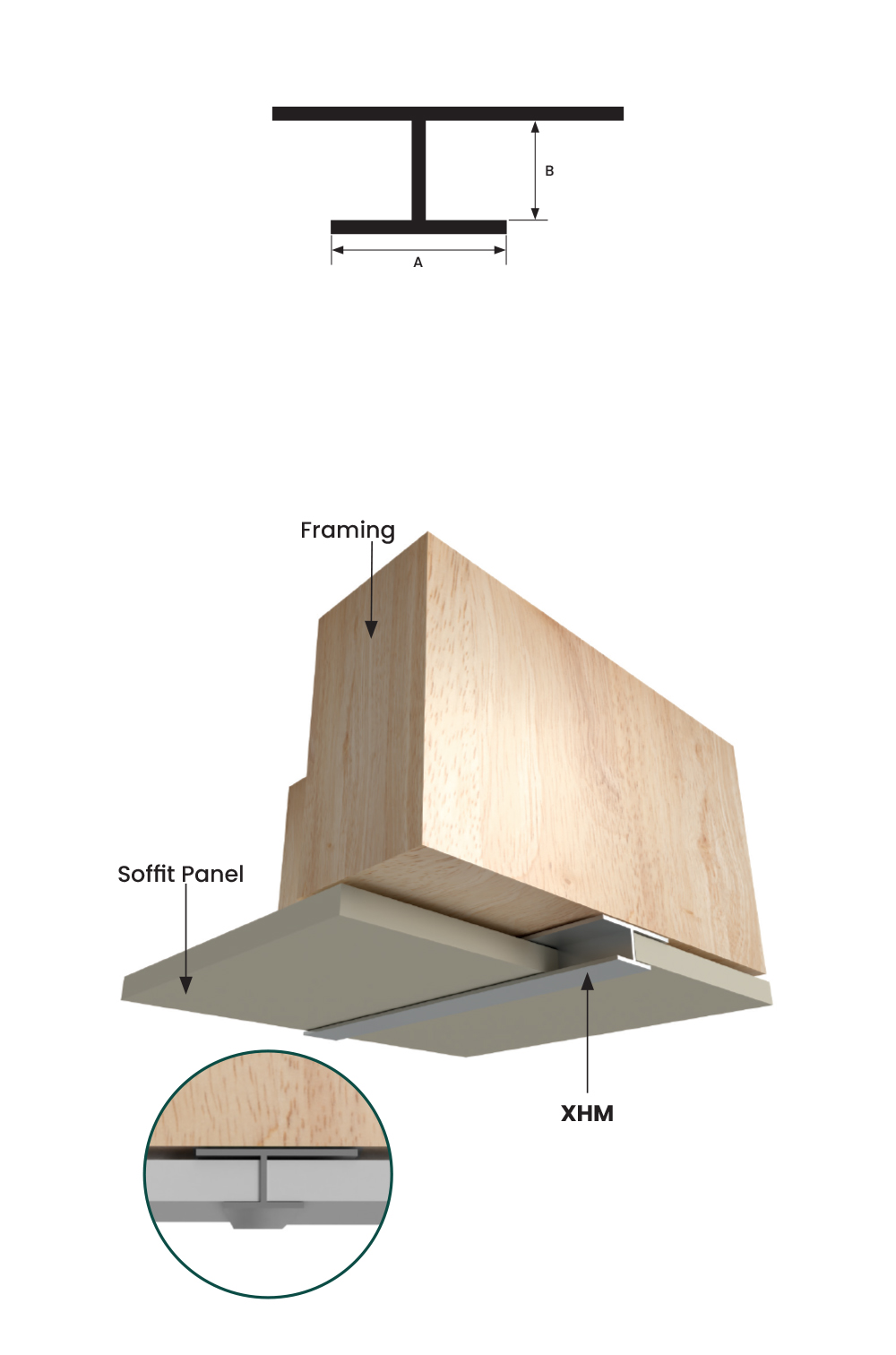

Covers the seams of the soffit material providing a cleaner transition than simply butting the panels end-to-end.
MATERIALS:ย 6063-T5 .045″ ยฑ .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.
NOTE:ย Use of the XtremeTrimยฎย H-Mold at vertical or horizontal siding joints is not recommended.
All measurements are nominal
| ITEM ID | A | B |
|---|---|---|
| XHM148 | 1/2โ | 9/32โ |
| XHM5168 | 1/2โ | 11/32โ |
All parts are 8โ Length unless otherwise indicated
