Steel Z Flashing
| ITEM ID | A | B | C |
|---|---|---|---|
| ZB516 | 1-3/16” | 5/16” | 1/2" |
| ZB38 | 1-1/8" | 3/8" | 1/2" |
| ZB716 | 1-1/16" | 7/16" | 1/2" |
| ZB12 | 1" | 1/2" | 1/2" |
| ZB1212112 | 1-1/2" | 1/2" | 1/2" |
| ZB58 | 7/8" | 5/8" | 1/2" |
| ZB34 | 3/4" | 3/4" | 1/2" |
| ZB134 | 1-3/4" | 3/4" | 1/2" |
| ZB34134 | 3/4" | 1-3/4" | 1/2" |
| ZB3434112 | 1-1/2" | 3/4" | 3/4" |
| ZB34214 | 2-1/4” | 3/4" | 1/2" |
| ZB78 | 3/4" | 7/8" | 3/8" |
| ZB781 | 1-1/8 | 7/8" | 3/8" |
| ZB1 | 1-1/2" | 1" | 3/8" |
| ZB114 | 1-1/4" | 1-1/4" | 3/8" |
| ZB112 | 1" | 1-1/2" | 1/2" |
| ZB112158 | 1-5/8" | 1-1/2" | 3/8" |
| ZB134134 | 1-3/4" | 1-3/4" | 3/8" |
| ZB2 | 1-1/2" | 2" | 3/8" |
| ZB214 | 1-3/8" | 2-1/4" | 3/8" |
Steel Z Flashing
Deflects water away from doors, windows where no gutter is used. Installed on roof surface 2-3 courses above edge of roof. Also used as a roof edge in some areas.
MATERIALS: Available in Bldr, or STD, or 26 Ga GZD or standard colors as listed.
*For PAINTED specify stock color -AM- Almond, BR -Brown, BK -Black, CB – Charcoal, WH – White, other colors are Special order.

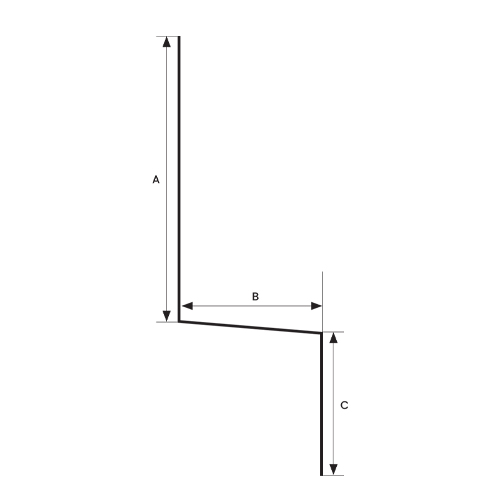

| ITEM ID | A | B | C |
|---|---|---|---|
| ZB516 | 1-3/16” | 5/16” | 1/2" |
| ZB38 | 1-1/8" | 3/8" | 1/2" |
| ZB716 | 1-1/16" | 7/16" | 1/2" |
| ZB12 | 1" | 1/2" | 1/2" |
| ZB1212112 | 1-1/2" | 1/2" | 1/2" |
| ZB58 | 7/8" | 5/8" | 1/2" |
| ZB34 | 3/4" | 3/4" | 1/2" |
| ZB134 | 1-3/4" | 3/4" | 1/2" |
| ZB34134 | 3/4" | 1-3/4" | 1/2" |
| ZB3434112 | 1-1/2" | 3/4" | 3/4" |
| ZB34214 | 2-1/4” | 3/4" | 1/2" |
| ZB78 | 3/4" | 7/8" | 3/8" |
| ZB781 | 1-1/8 | 7/8" | 3/8" |
| ZB1 | 1-1/2" | 1" | 3/8" |
| ZB114 | 1-1/4" | 1-1/4" | 3/8" |
| ZB112 | 1" | 1-1/2" | 1/2" |
| ZB112158 | 1-5/8" | 1-1/2" | 3/8" |
| ZB134134 | 1-3/4" | 1-3/4" | 3/8" |
| ZB2 | 1-1/2" | 2" | 3/8" |
| ZB214 | 1-3/8" | 2-1/4" | 3/8" |
