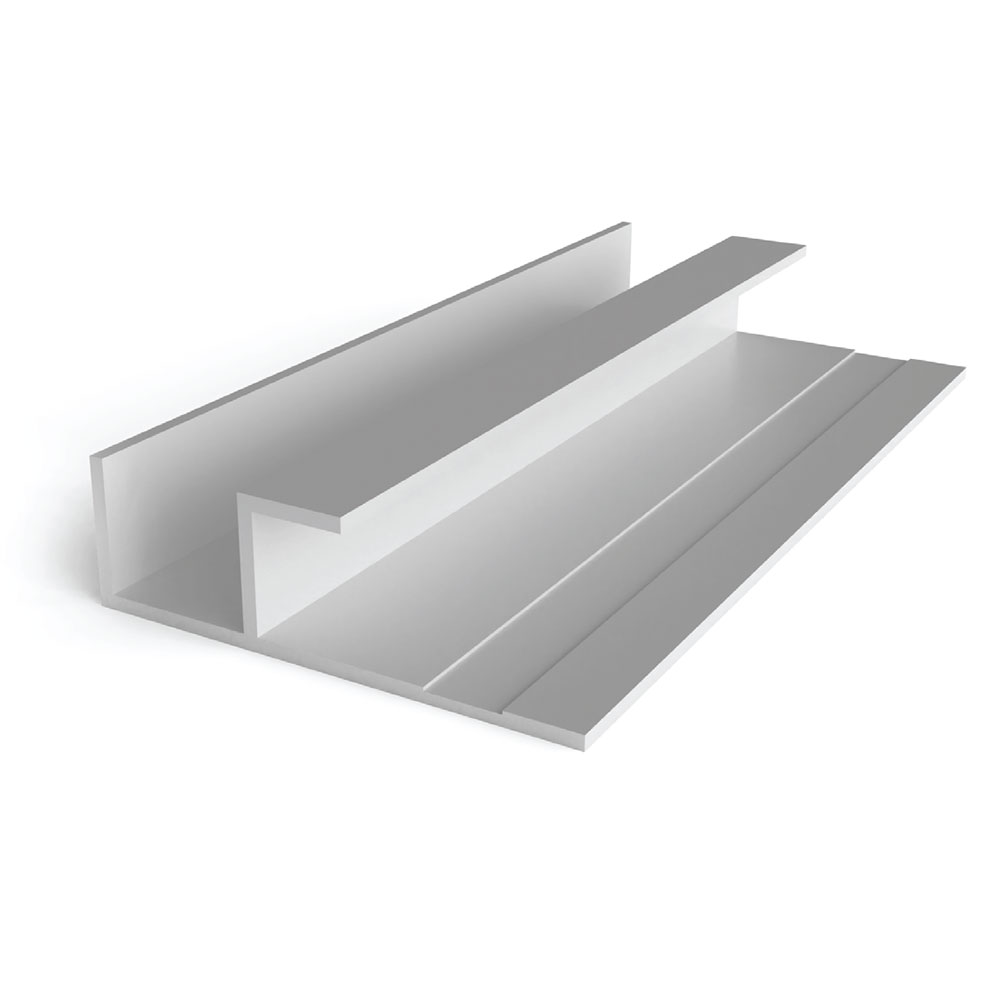

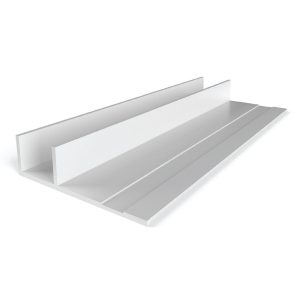

Style “F” Reveal Trim
All measurements are nominal

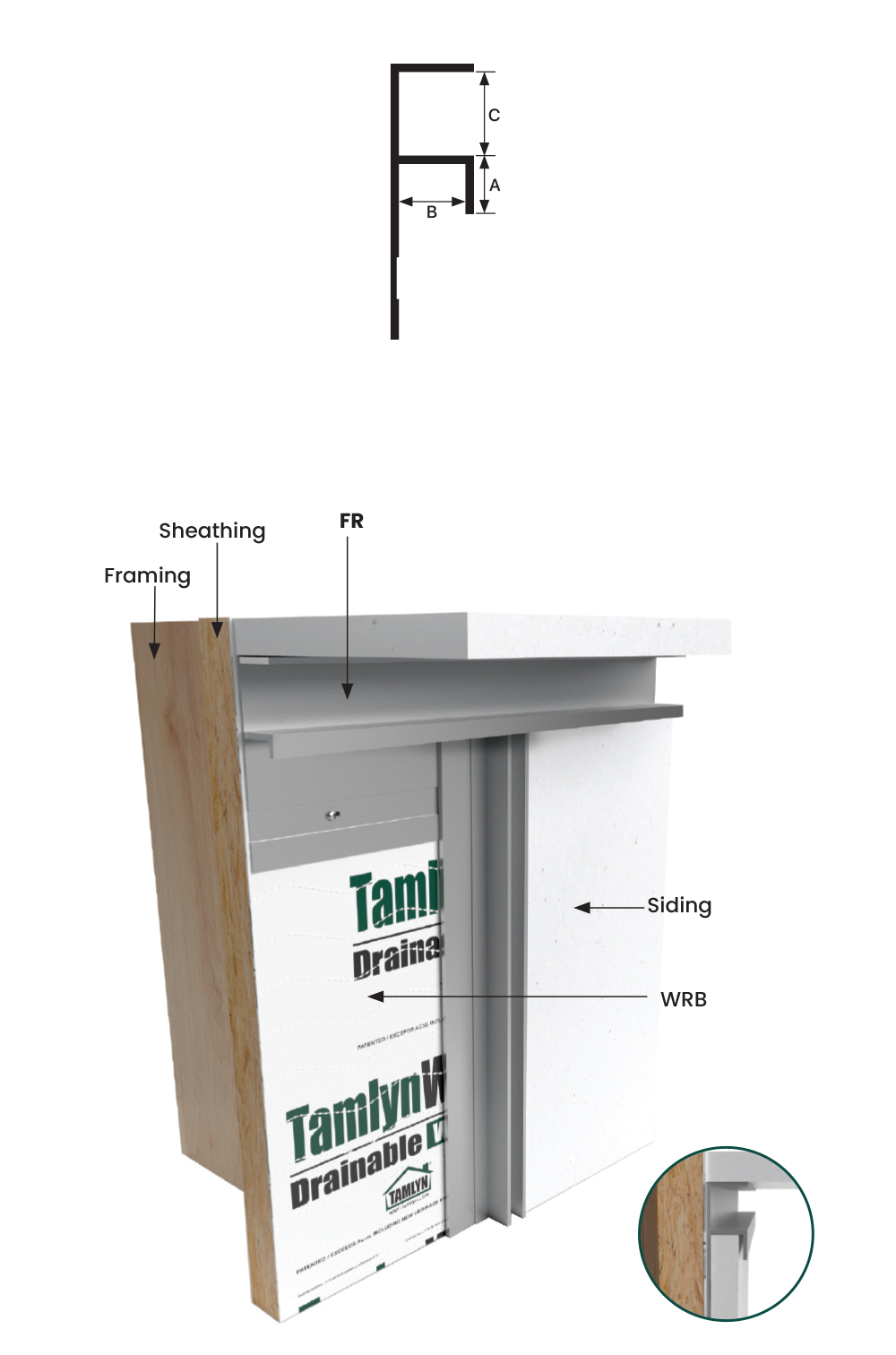

| ITEM ID | A | B | C |
|---|---|---|---|
| FR516 | 3/8โ | 3/8โ | 1/2โ |
| FR716 | 3/8โ | 15/32โ | 1/2โ |
| FR34 | 5/8โ | 3/4โ | 3/4โ |
All parts are 10โ Length unless otherwise indicated
MATERIALS:ย 6063-T5 .050″ ยฑ .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.
NOTE:ย Do not install XtremeTrimยฎ F Reveal on horizontal applications where the exterior flange can catch/hold water.
Style “F” Reveal Trim
Provides a clean finish at openings, at the edge of various siding materials, and at material transtions while creating a reveal break. Complement the Vertical Reveal System.
MATERIALS:ย 6063-T5 .050″ ยฑ .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.
NOTE:ย Do not install XtremeTrimยฎ F Reveal on horizontal applications where the exterior flange can catch/hold water.
All measurements are nominal
| ITEM ID | A | B | C |
|---|---|---|---|
| FR516 | 3/8โ | 3/8โ | 1/2โ |
| FR716 | 3/8โ | 15/32โ | 1/2โ |
| FR34 | 5/8โ | 3/4โ | 3/4โ |
All parts are 10โ Length unless otherwise indicated
