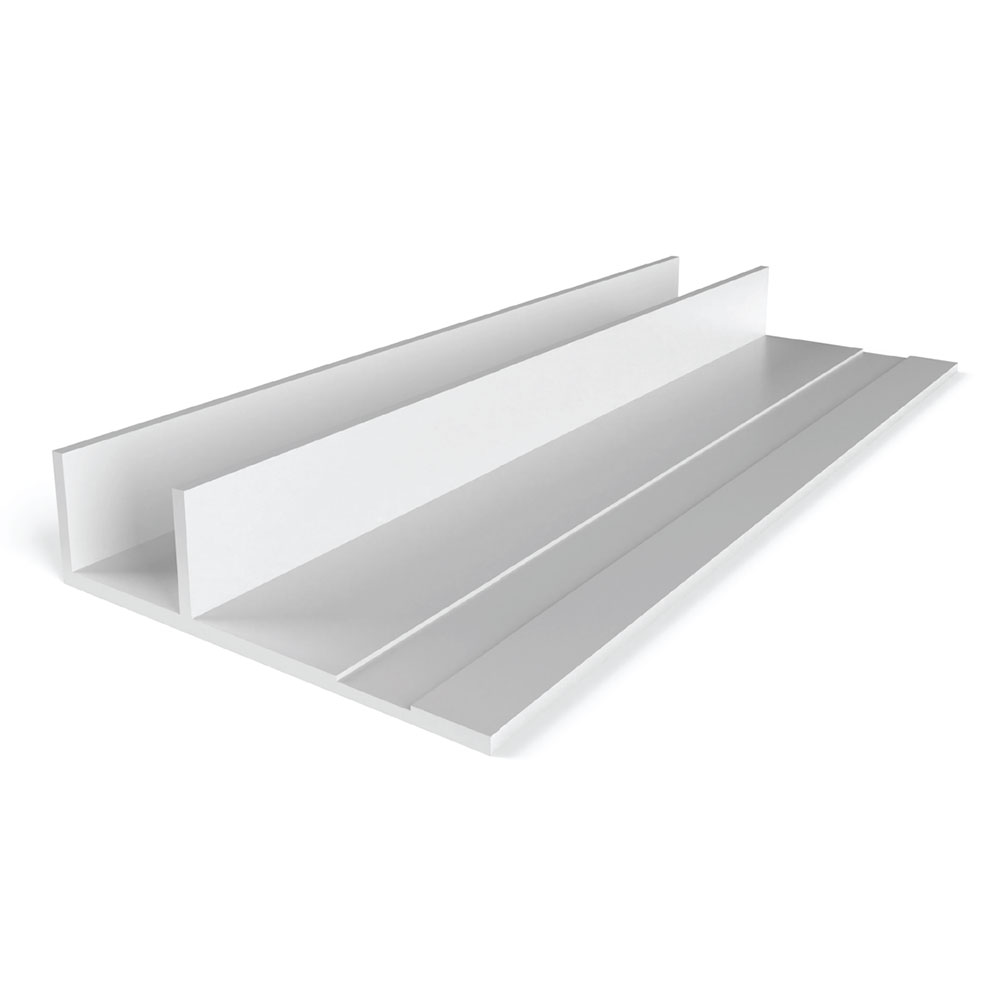

Style “F” Trim
All measurements are nominal

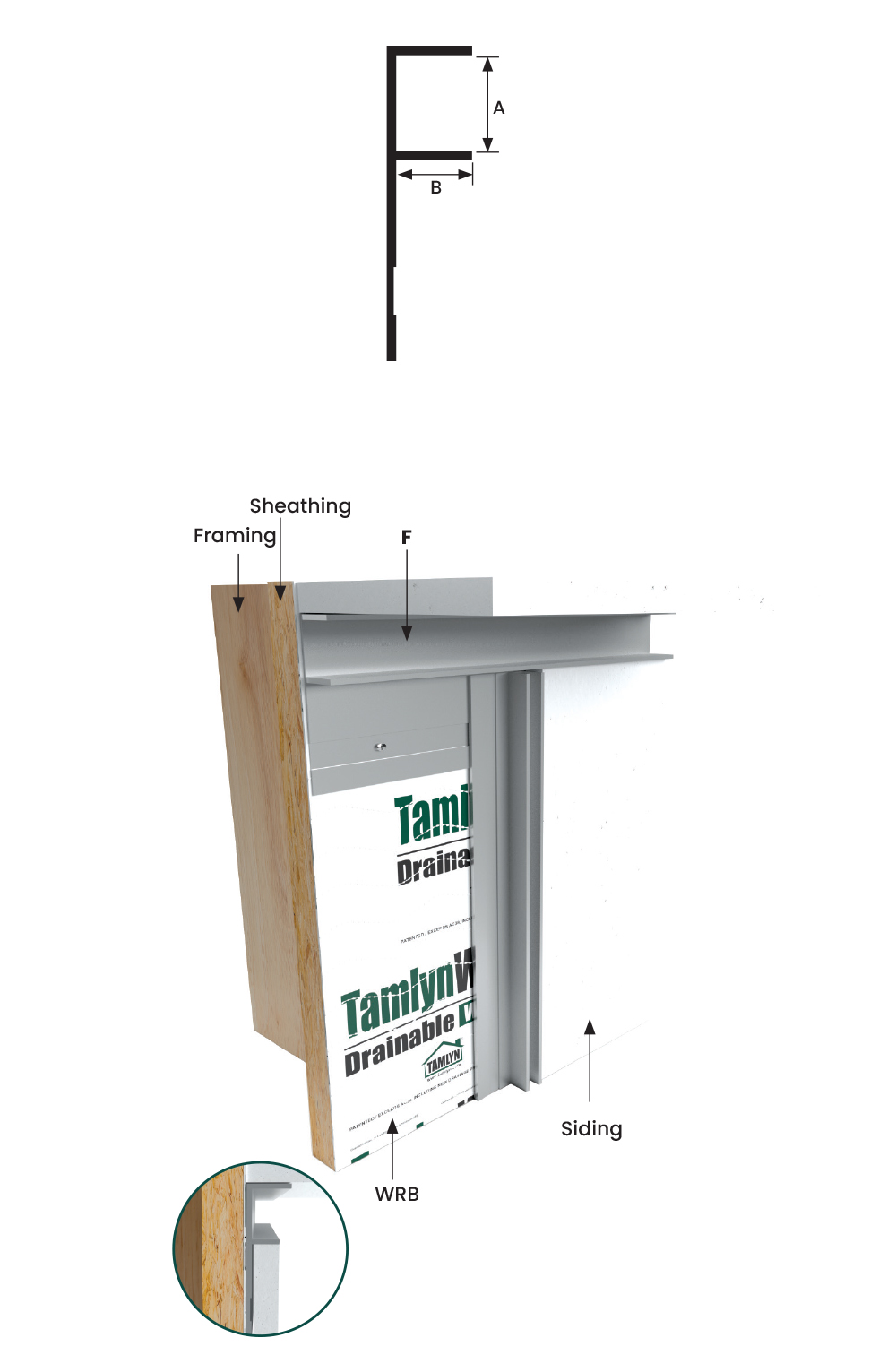

| ITEM ID | A | B |
|---|---|---|
| F516 | 1/2” | 5/16” |
All parts are 10’ Length unless otherwise indicated
MATERIALS: 6063-T5 .050″ ± .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.
NOTE: Do not install XtremeTrim® F Trim on horizontal applications where the exterior flange can catch/hold water.
Style “F” Trim
Provides a clean finish at openings, at the edge of various siding materials, and at material transtions while creating a reveal break. Complement the Bead System.
MATERIALS: 6063-T5 .050″ ± .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.
NOTE: Do not install XtremeTrim® F Trim on horizontal applications where the exterior flange can catch/hold water.
All measurements are nominal
| ITEM ID | A | B |
|---|---|---|
| F516 | 1/2” | 5/16” |
All parts are 10’ Length unless otherwise indicated
