TWR101

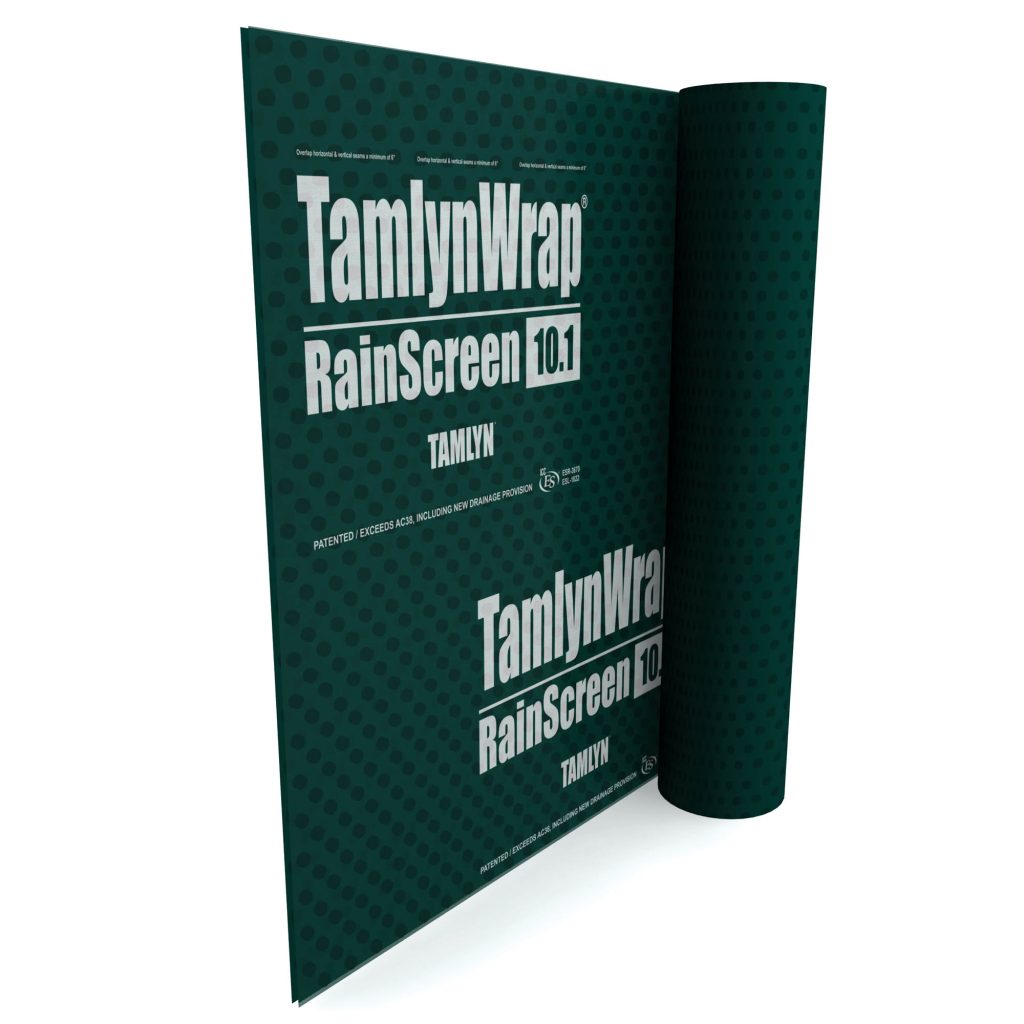

TamlynWrap™ Rain Screen 10.1

ITEM IDTWR101
WIDTH5 ft
LENGTH50 ft
COVERAGE250 sf
ROLL WEIGHT22 lbs
THICKNESS10.5 mm
DRAINAGE GAP10.1 mm
UV RATINGMaximum 120 days
WARRANTY15 year limited
5′ X 50′ (250SF) GAP SPACING is 10.1mm

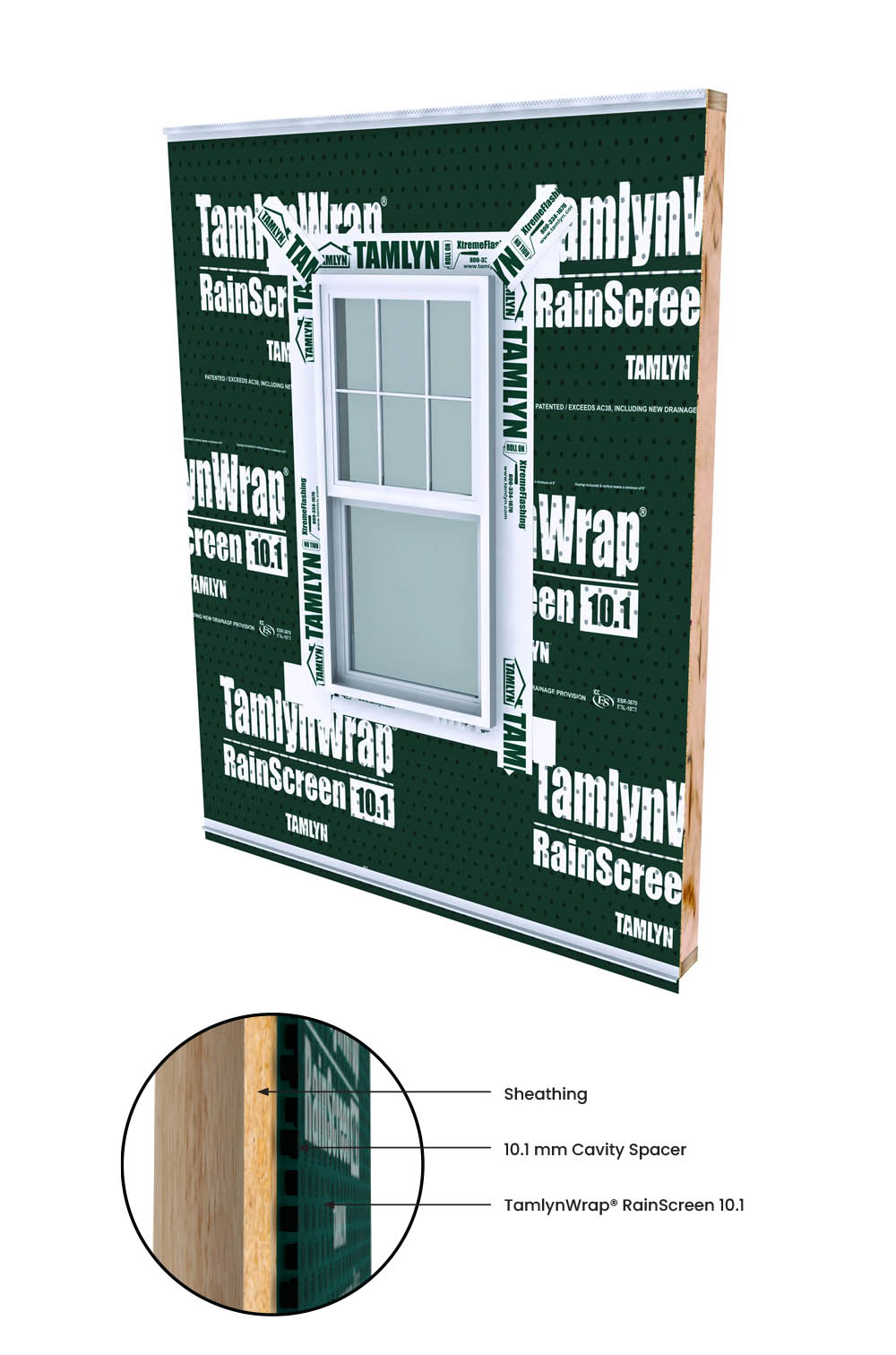

The TamlynWrap Rainscreen 10.1 is a 3-in-1 Water Resistive Barrier system that enhances the drainage efficiency, the drying proficiency, and improves the construction expediency. The usage of such product is able to maintain the sheathing (i.e. OSB or coated OSB, and plywood, etc.) to dry faster and last much longer than usual. The back of any cladding (i.e. Stucco, Fiber Cement Board Stone and Metal Panels) can also be dried more efficiently due to the 10.1 mm (over 3/8 inches) air cavity in between the cladding the sheathing material. Since the 10.1 mm thick filament is uncompressible and they can act as furring strip and reduce the installation cost and liability.

Installation Instructions

TWR101

TamlynWrap™ Rain Screen 10.1

5′ X 50′ (250SF) GAP SPACING is 10.1mm

The TamlynWrap Rainscreen 10.1 is a 3-in-1 Water Resistive Barrier system that enhances the drainage efficiency, the drying proficiency, and improves the construction expediency. The usage of such product is able to maintain the sheathing (i.e. OSB or coated OSB, and plywood, etc.) to dry faster and last much longer than usual. The back of any cladding (i.e. Stucco, Fiber Cement Board Stone and Metal Panels) can also be dried more efficiently due to the 10.1 mm (over 3/8 inches) air cavity in between the cladding the sheathing material. Since the 10.1 mm thick filament is uncompressible and they can act as furring strip and reduce the installation cost and liability.

Installation Instructions

ITEM IDTWR101
WIDTH5 ft
LENGTH50 ft
COVERAGE250 sf
ROLL WEIGHT22 lbs
THICKNESS10.5 mm
DRAINAGE GAP10.1 mm
UV RATINGMaximum 120 days
WARRANTY15 year limited
