V Groove Reveal
All measurements are nominal
| ITEM ID | A | B | C |
|---|---|---|---|
| VR14516 | 1/4โ | 3/8โ | 1/8โ |
| VR12516 | 1/2โ | 3/8โ | 1/8โ |
All parts are 10โ Length unless otherwise indicated

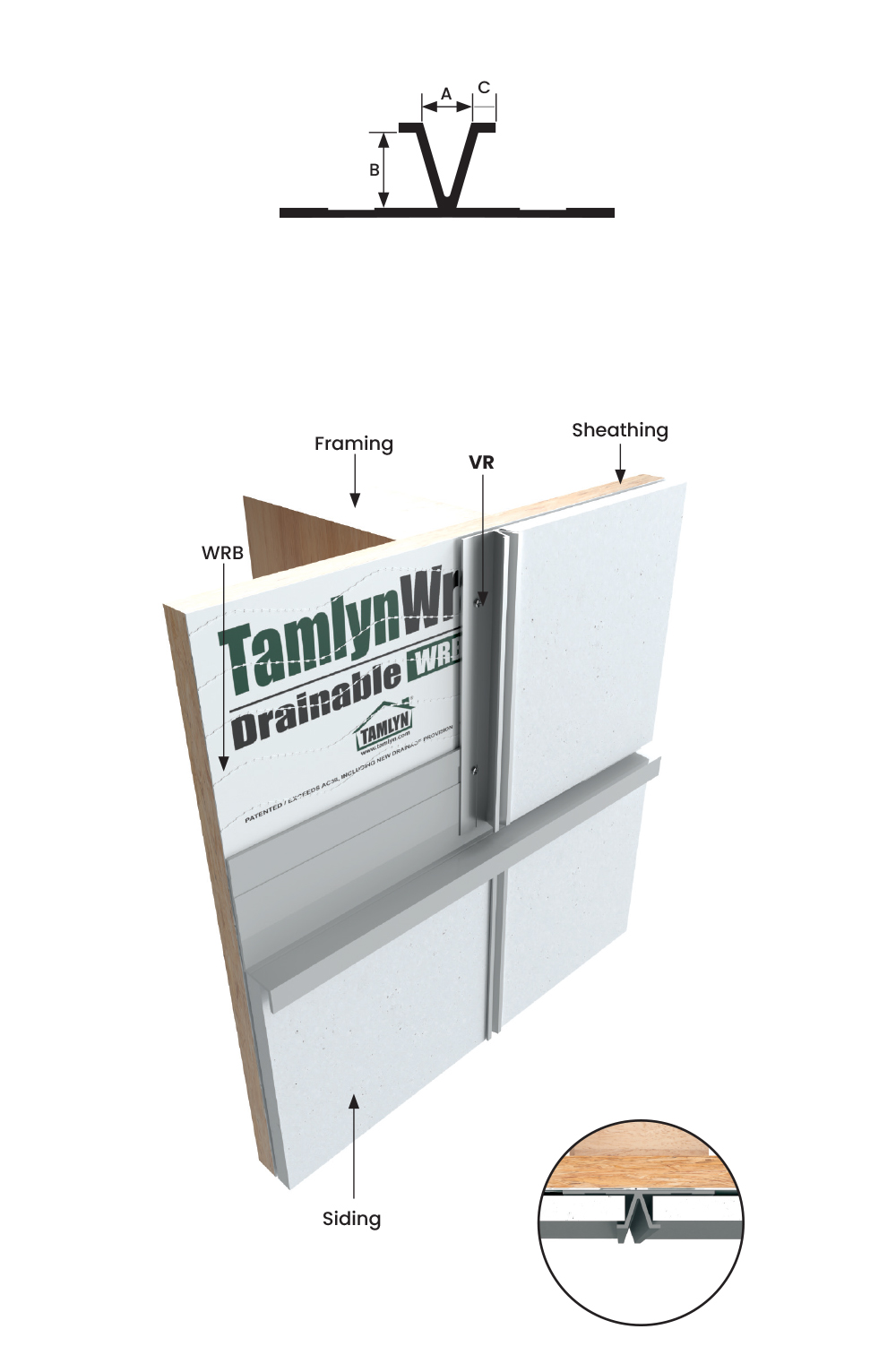

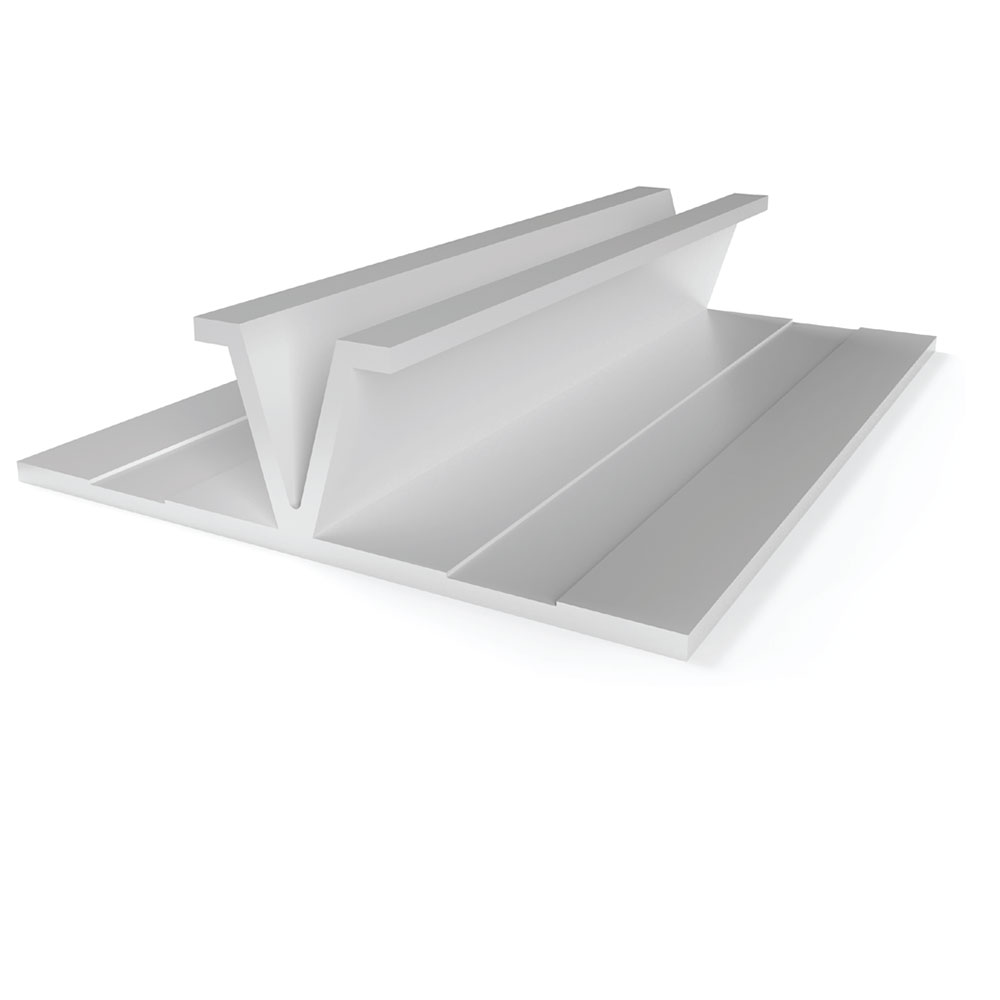

Provides a V Groove edge to panel installations.
MATERIALS:ย 6063-T5 .050″ ยฑ .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.
NOTE:ย Do not install XtremeTrimยฎ V Groove Reveal on horizontal applications where the exterior flange can catch/hold water.
V Groove Reveal
PATENT PENDING
Provides a V Groove edge to panel installations.
MATERIALS:ย 6063-T5 .050″ ยฑ .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.
NOTE:ย Do not install XtremeTrimยฎ V Groove Reveal on horizontal applications where the exterior flange can catch/hold water.
All measurements are nominal
| ITEM ID | A | B | C |
|---|---|---|---|
| VR14516 | 1/4โ | 3/8โ | 1/8โ |
| VR12516 | 1/2โ | 3/8โ | 1/8โ |
All parts are 10โ Length unless otherwise indicated
