Vertical Bead Reveal
All measurements are nominal
| ITEM ID | A | B |
|---|---|---|
| BRV14516 | 1/4โ | 5/16โ |
| BRV12516* | 1/2โ | 5/16โ |
| BRV1516 | 1โ | 5/16โ |
| BRV121 | 1/2โ | 1โ |
All parts are 10โ Length unless otherwise indicated
*In Stock in BLACK ANODIZED
MATERIALS:ย 6063-T5 .040″ ยฑ .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.
NOTE:ย Use of the XtremeTrimยฎย Do not install XtremeTrimยฎ Vertical Bead Reveal on horizontal applications where the exterior flange can catch/hold water.

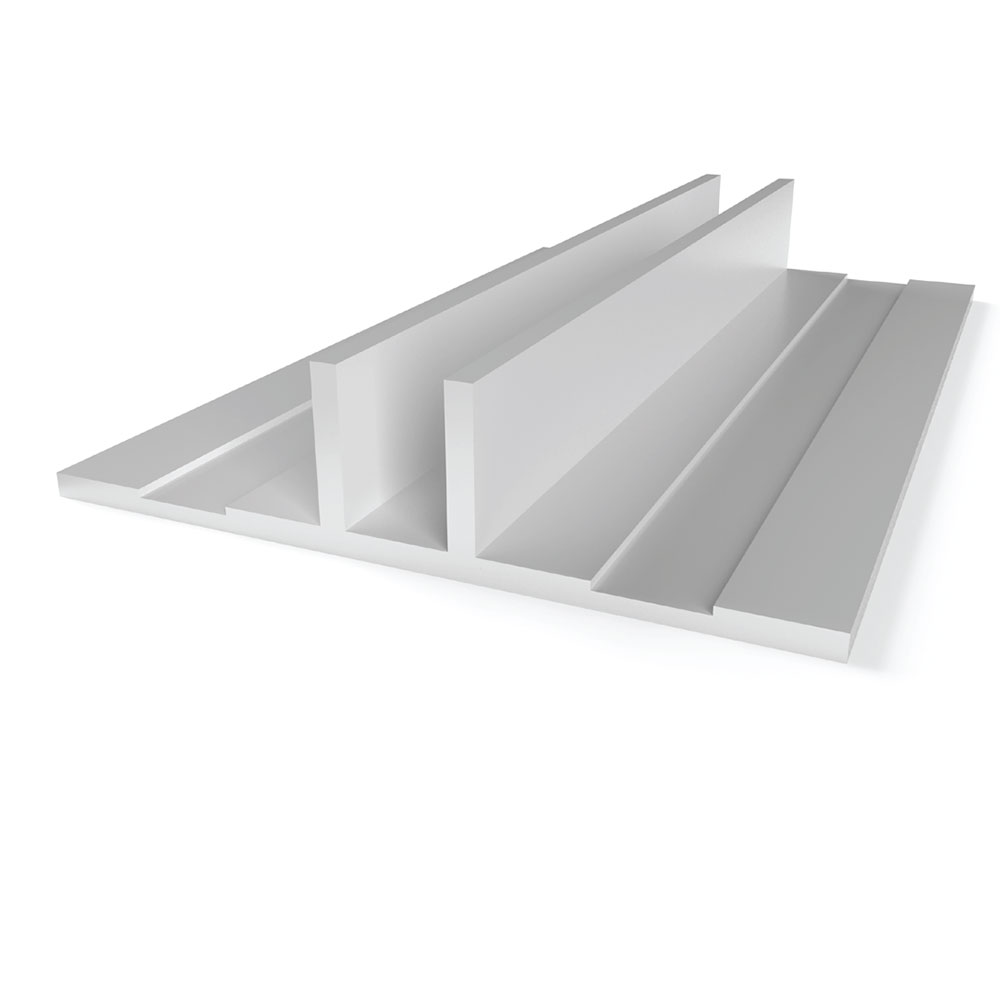

Vertical Bead Reveal

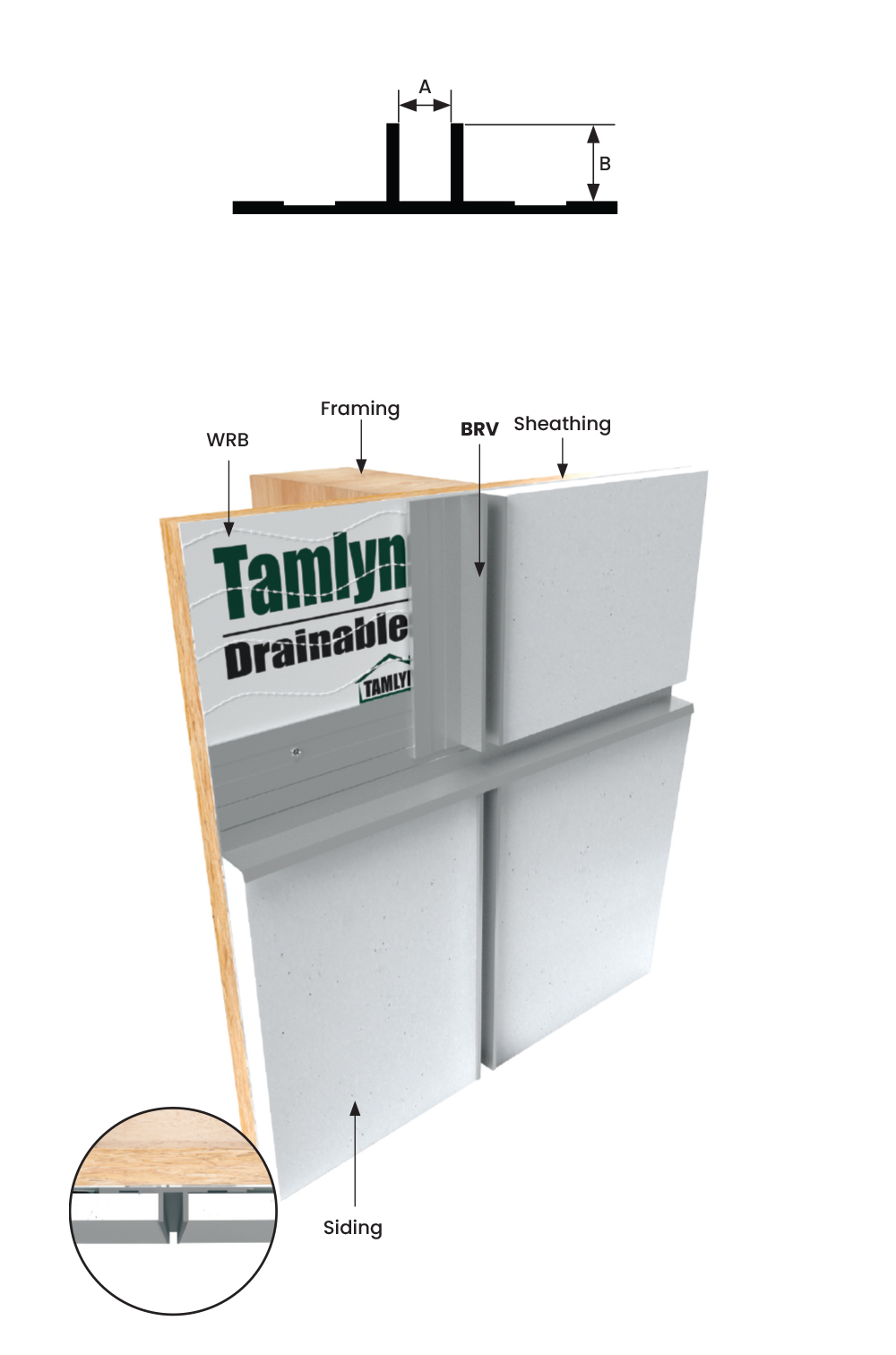

XtremeTrimยฎ Vertical Bead Reveal serves as an aesthetic expansion joint between panels. Works with all panel profiles/ finishes. A better, more appealing and secure solution to the “open wall” vertical joint look popular in many areas.
MATERIALS:ย 6063-T5 .040″ ยฑ .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.
NOTE:ย Use of the XtremeTrimยฎย Do not install XtremeTrimยฎ Vertical Bead Reveal on horizontal applications where the exterior flange can catch/hold water.
All measurements are nominal
| ITEM ID | A | B |
|---|---|---|
| BRV14516 | 1/4โ | 5/16โ |
| BRV12516* | 1/2โ | 5/16โ |
| BRV1516 | 1โ | 5/16โ |
| BRV121 | 1/2โ | 1โ |
All parts are 10โ Length unless otherwise indicated
*In Stock in BLACK ANODIZED
