Vertical Reveal
All measurements are nominal
| ITEM ID | A | B | C |
|---|---|---|---|
| RV516* | 3/8โ | 3/8โ | 1/2โ |
| RV716 | 3/8โ | 7/16โ | 1/2โ |
| RV58 | 1/2โ | 5/8โ | 5/8โ |
| RV34 | 5/8โ | 3/4โ | 3/4โ |
All parts are 10โ Length unless otherwise indicated
*In Stock in BLACK ANODIZED
Vertical Reveal

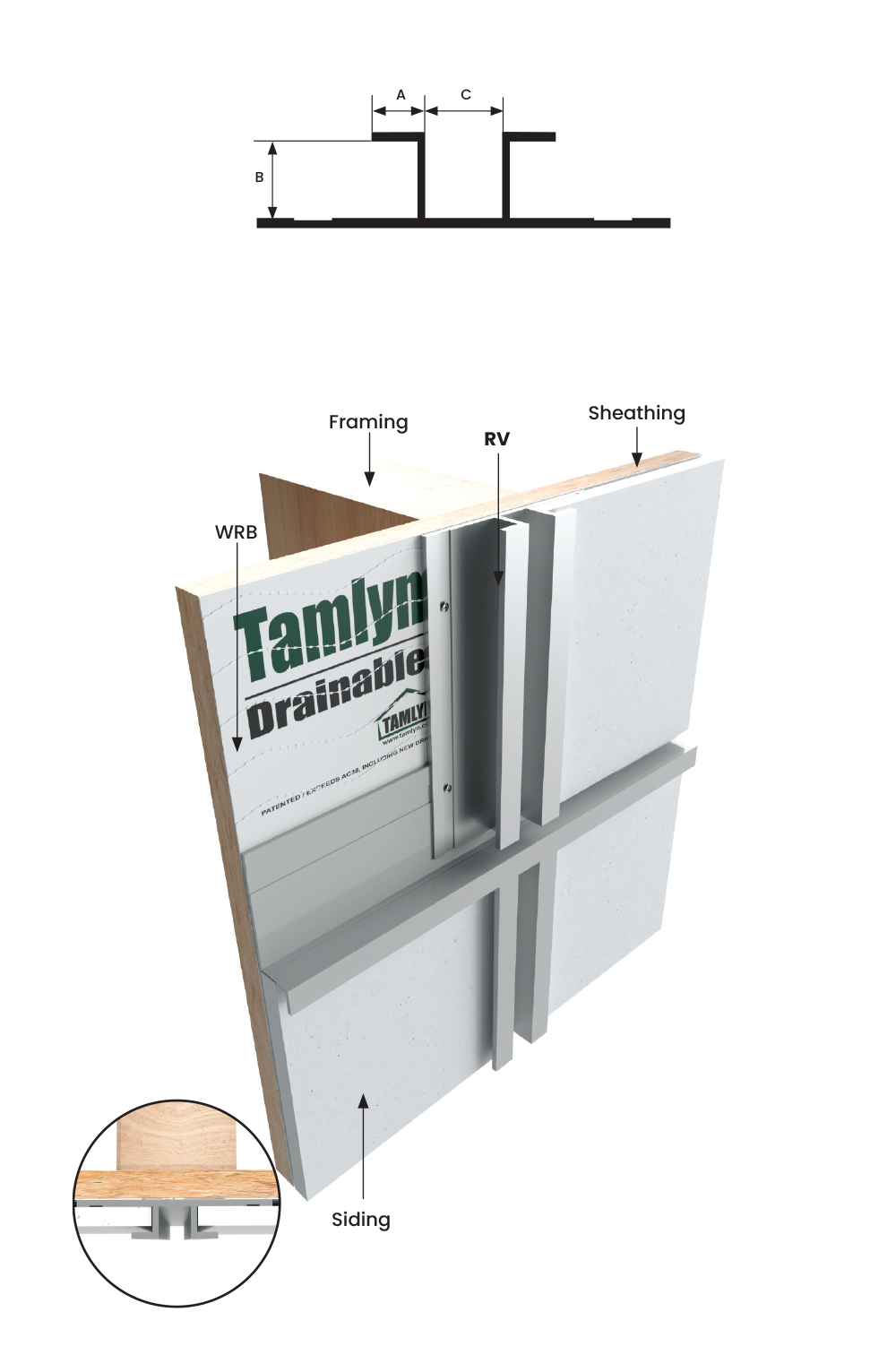

Designed to create a uniform, aesthetically consistent open vertical reveal between panel, lap siding, or other materials.
MATERIALS:ย 6063-T5 .050″ ยฑ .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.
NOTE:ย Do not install XtremeTrimยฎ Vertical Reveal on horizontal applications where the exterior flange can catch/hold water.
All measurements are nominal
| ITEM ID | A | B | C |
|---|---|---|---|
| RV516* | 3/8โ | 3/8โ | 1/2โ |
| RV716 | 3/8โ | 7/16โ | 1/2โ |
| RV58 | 1/2โ | 5/8โ | 5/8โ |
| RV34 | 5/8โ | 3/4โ | 3/4โ |
All parts are 10โ Length unless otherwise indicated
*In Stock in BLACK ANODIZED
