Vertical Reveal
All measurements are nominal
| ITEM ID | A | B | C |
|---|---|---|---|
| RVC516 | 1/2” | 5/16” | 1/2” |
| RVC716 | 1/2” | 7/16” | 1/2” |
| RVC34 | 5/8” | 3/4” | 3/4” |
All parts are 10’ Length unless otherwise indicated
Recommended adhesive needs to meet these requirements:
Tensile Strength ASTM D412 – 475 psi
Lap Shear Strength – ASTM D1002 – 550 psi
MATERIALS: 6063-T5 .045″ ± .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.
FINISHES: Unless specified all XtremeTrim® items are provided in primed finish. Also available in popular siding/soffit colors in standard face only color match or full coverage CoastalColorCoating™. Clear Anodized is stocked and custom anodized is available (minimums apply).
NOTE: Use of the XtremeTrim® Vertical Reveal at horizontal joints is not recommended.
Vertical Reveal

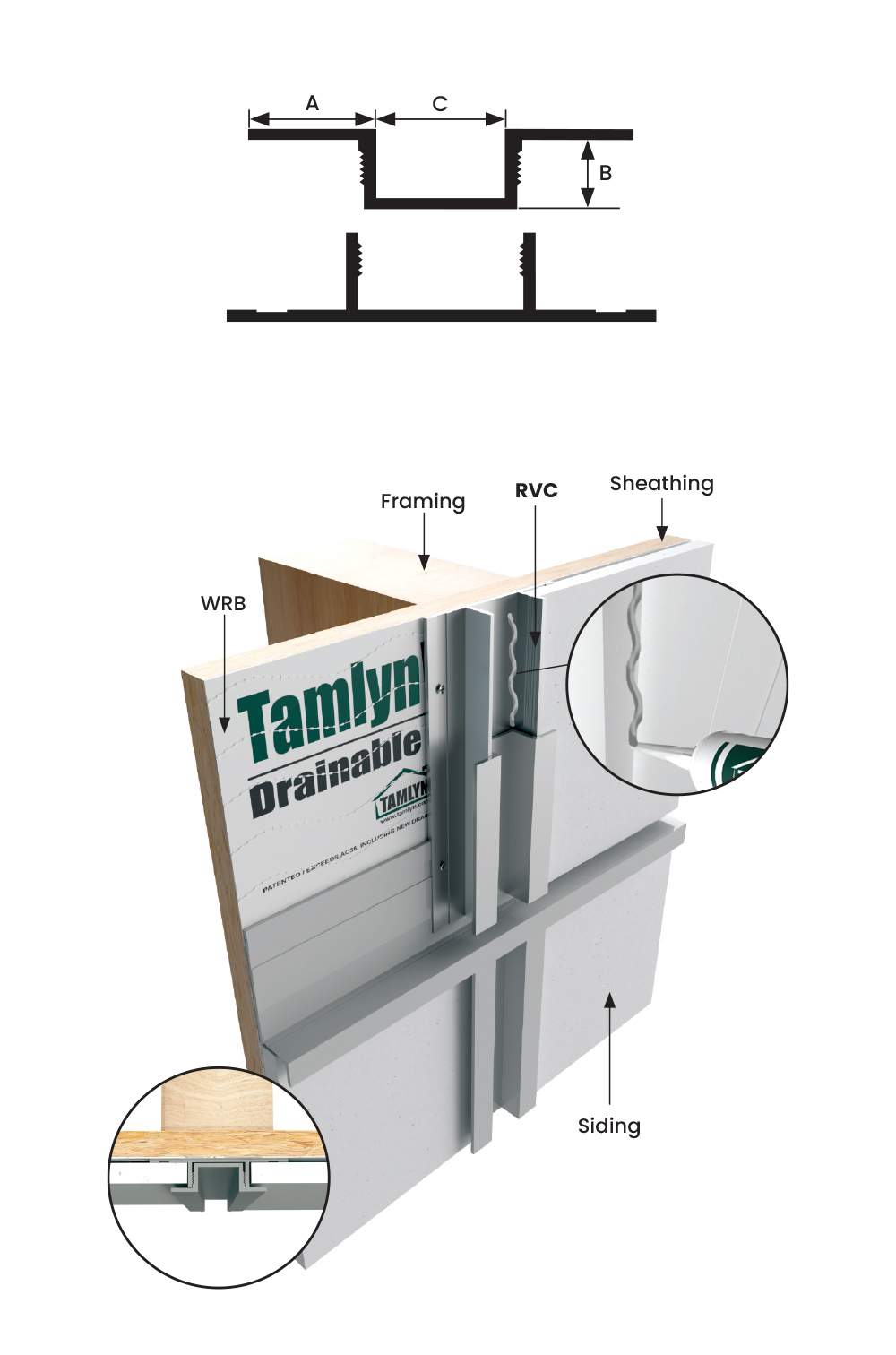

Designed to create a uniform, aesthetically consistent vertical reveal between panel siding. The two piece design permits application of the base part first and then installation of the cover cap at a later time. In tight fit situations this may be more convenient then using the standard vertical reveal. However, due to the natural expansion and contraction of aluminum, all two piece caps must be secured by either adhesive or screw or pop rivet.
Recommended adhesive needs to meet these requirements:
Tensile Strength ASTM D412 – 475 psi
Lap Shear Strength – ASTM D1002 – 550 psi
MATERIALS: 6063-T5 .045″ ± .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.
FINISHES: Unless specified all XtremeTrim® items are provided in primed finish. Also available in popular siding/soffit colors in standard face only color match or full coverage CoastalColorCoating™. Clear Anodized is stocked and custom anodized is available (minimums apply).
NOTE: Use of the XtremeTrim® Vertical Reveal at horizontal joints is not recommended.
All measurements are nominal
| ITEM ID | A | B | C |
|---|---|---|---|
| RVC516 | 1/2” | 5/16” | 1/2” |
| RVC716 | 1/2” | 7/16” | 1/2” |
| RVC34 | 5/8” | 3/4” | 3/4” |
All parts are 10’ Length unless otherwise indicated
